OSRAM 64635 HLX 150W 15V MR16 Infrared Heat Lamp

OSRAM SKU: 54233
$5499 $82.99 USD
26 in stock



1

Description

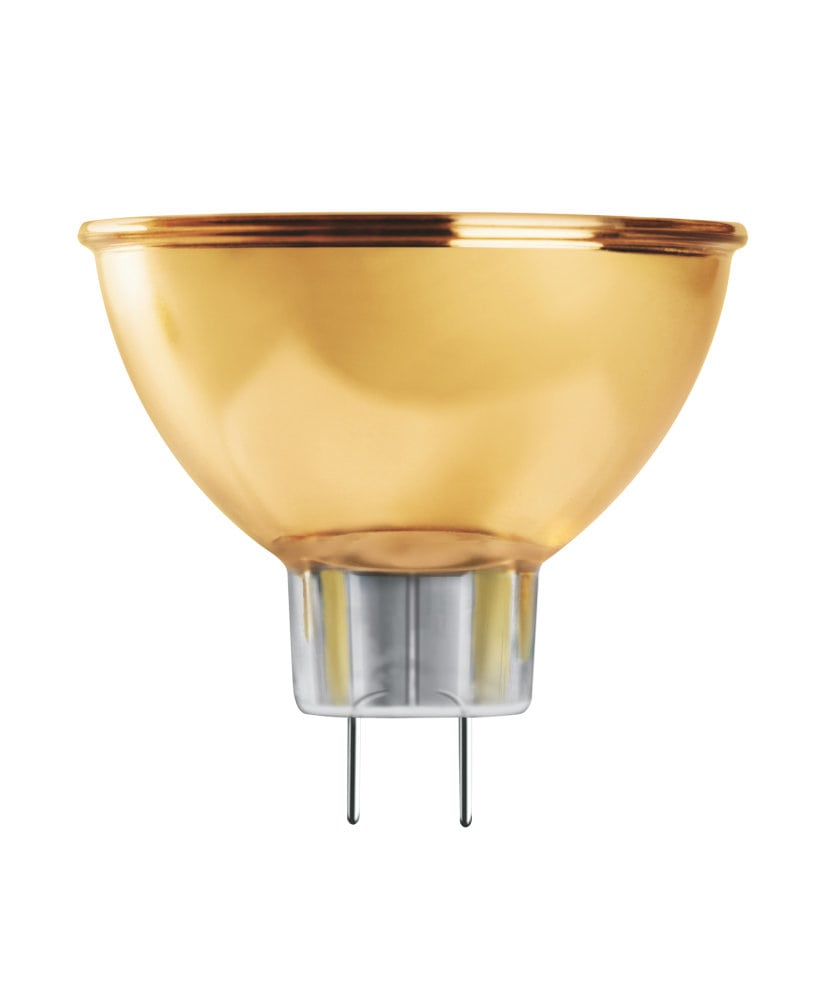

Osram 64635 HLX 150W MR16 Infrared Heat Lamp

OSRAM 64635 HLX Halogen lamps offer brilliant light, high light output, constant color temperature and excellent color rendering throughout their lives.

The OSRAM 64635 HLX is easy to use, dimmable and does not contain any mercury. This makes them not only extremely powerful but also extremely eco-friendly. Fetures
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX) higher with same power consumption

Applications
- medical equipment (heat lamp)
- Projector
- Fiber-Optic Illuminator

CROSS REFERENCES
- Osram Sylvania 54162 64635 HLX
- Osram Sylvania 54233 64635 HLX
- Osram Sylvania 54161 EFR 64634 HLX

Specs

Abbreviation Name 64635HLX
Application SOLDERING, WELDING, HEATING/INFRARED
Average Rated Life (hr) 50
Base GZ6.35 Bipin
Bulb MR16
Class C (gas)
Color Rendering Index (CRI) 100
Diameter d (in) 2.008
Diameter d (mm) 51
Family Brand Name XENOPHOT (HLX)
Lamp Finish Clear
Length l (in) 44.577
Length l (mm) 44.577
Length l max. (in) 1.755
Length l max. (mm) 44.577
Maximum Overall Length - MOL (in) 1.755
Maximum Overall Length - MOL (mm) 44.577
Nominal Voltage (V) 15
Nominal Wattage (W) 150
Operating Position p 90
Type of Current AC
Working Distance a (in) 0.741
Working Distance a (mm) 18.8214
