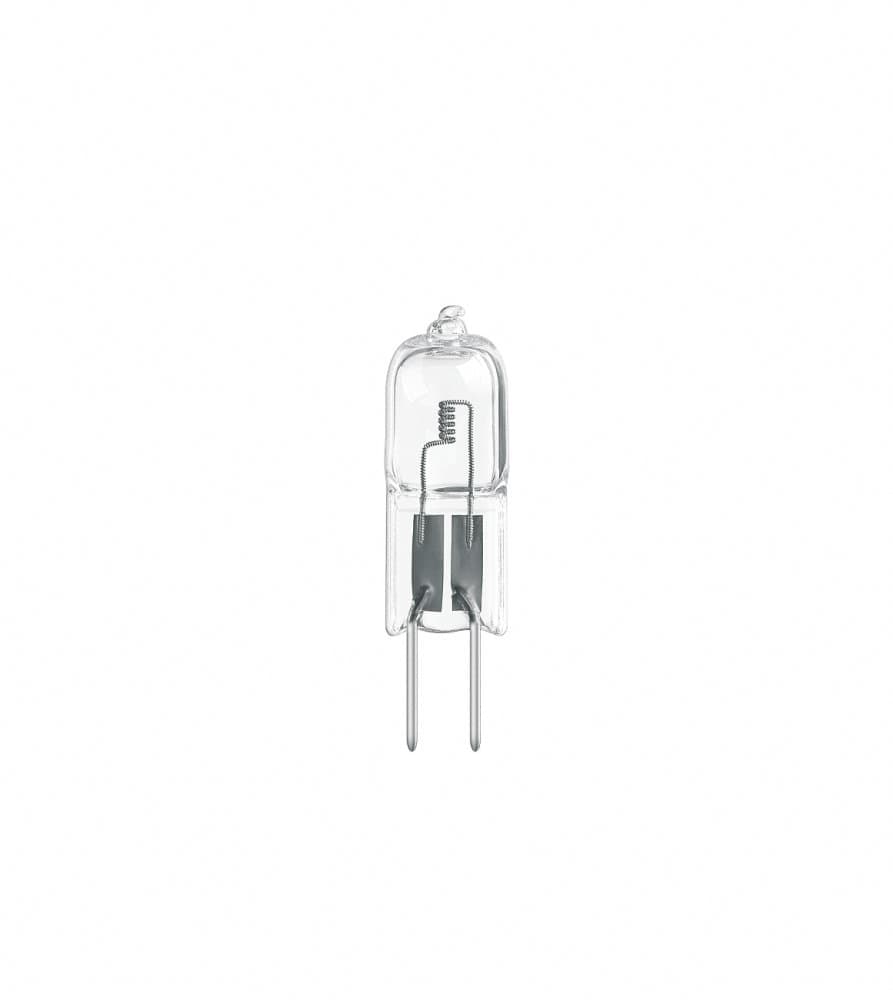

OSRAM 64647 120W 24V G6.35 Base Halogen Light Bulb

OSRAM SKU: 54320
$699 $15.99 USD
154 in stock



Description

Osram 64647 is a 120 watt T12 Halogen Lamp. Typical lifetime is 300 hours. This lamp has a G6.35 Bipin base.

Specs

Abbreviation Name 64647
Application Projector, Microfilm, Microscope, Studio
Average Rated Life (hr) 300
Base G6.35 Bipin
Bulb T12
Class C (gas)
Color Rendering Index (CRI) 100
Diameter d (in) 0
Diameter d (mm) 0
Distance a (in) 0.51
Distance a (mm) 30
Filament Dimensions Length (in) 0.1
Filament Dimensions Length (mm) 2.6
Filament Dimensions Width (in) 0.25
Filament Dimensions Width (mm) 6.4
Length l (in) 1.73
Length l (mm) 44
LIF Code M/184
Light Center Length - LCL (in) 1.18
Light Center Length - LCL (mm) 30
Luminous Flux (lm) 3600
Maximum Overall Length - MOL (in) 1.73
Maximum Overall Length - MOL (mm) 44
Nominal Voltage (V) 24
Nominal Wattage (W) 120
Operating Position s 90
Reflector Coating 0
Type of Current AC
