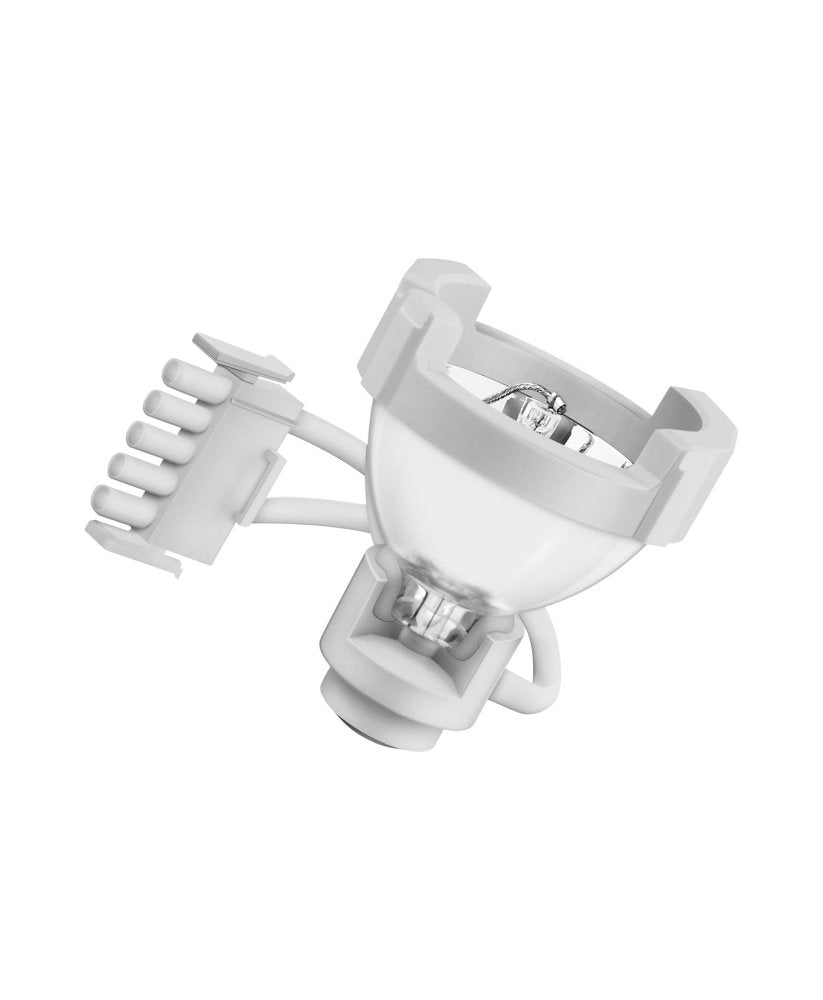

Osram 69190 XBO R 101W/45C OFR 101W short arc

Osram 69190 XBO R 101W/45C OFR 101W short arc

OSRAM SKU: 69190
$65899 $1,138.99 USD
11 in stock



Osram 69190 XBO R 101W/45C OFR 101W short arc Mercury Short Arc Discharge Lamps are intense point sources that provide a broad spectrum through the visible and ultraviolet range. The XBO R 101W/45C OFR 101W lamps are optimal sources for fiber illumination devices for Medical, Scientific, and various Industrial areas. The broad spectrum makes these lamps ideal for microscopy applications.

Product features and benefits
  • High luminance / radiance with intense point source
  • Broad, continuous spectral distribution
  • High color rendering > 95
  • High arc stability
  • DC operation
Areas of application
  • Endoscopy
  • Microscopy
  • Surgical Headlamps
  • Fiber Illumination
  • Solar Simulation
  • Imaging & scanning


Abbreviation Name XBO R 101W/45C OFR
Application Medical and industrial fiber optics
Average Rated Life (hr) 500
Base Special
Bulb KO176
Class C (gas)
Color Temperature (K) 6000
Current (A) 7.0
Diameter d (in) 2.520 in
Diameter d (mm) 67
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 83
Length l1 max. (mm) 83
Maximum Base Temperature °C 230 C
Maximum Overall Length - MOL (mm) 83
Nominal Voltage (V) 85
Nominal Wattage (W) 101
Operating Position p 15
Type of Current DC
Working Distance a (mm) 45
CA Prop 65 Yes
CA Prop 65 Material Mercury
