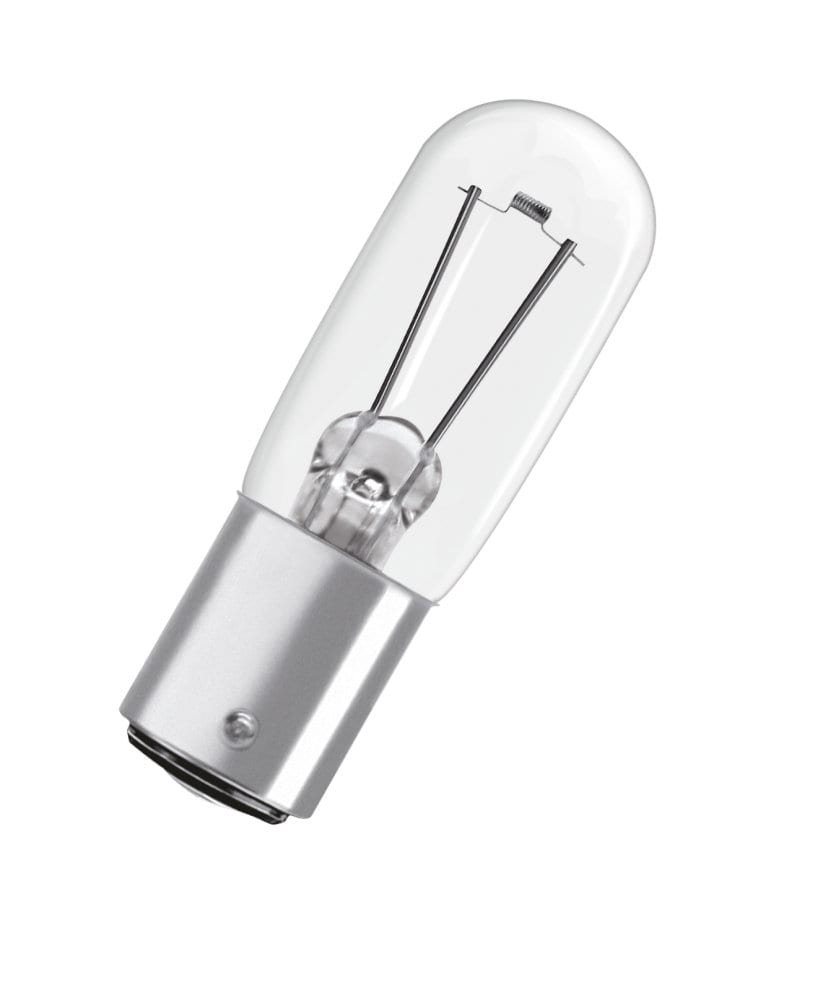

OSRAM 8017 15W 6V T19 BA15d Base Film Projector Bulb

The Osram 8017 (SM-8017 product code 76313) is a 6 volt 15 watt incandescent microscope replacement lamp designed for scientific and medical applications, featuring a BA15d double contact bayonet base. This specialized, clear bulb fits various medical examination lights, providing a focused, high-quality light source.

Features:
- ANSI Code: SM-8017
- Voltage: 6V
- Wattage: 15W
- Base: BA15d (Double Contact Bayonet)
- Average Rated Life: 200 hours
Compatibility: Used in Leitz and Nikon Microscopes/Measuring instruments

Cross Reference Part Numbers:
- Eiko 41087, EI-8017, EI8017
- Osram 76314, 8018
- Osram 76313, 8017
- Philips 13347W
- Ushio 8000269
- Zeiss 38-01-79, Zeiss 3800-29-9020D, Zeiss 3800299020D, Zeiss 380179
- Leitz 500-227 , Leitz 500227 , Leitz 620-068 , Leitz 620068
- Wotan 70259
- BW.8017, BW8017
- SM-8017, SM8017

Equipment used in:
- Microscope Illuminator Bulb,
- Dr Fischer 00843474
- Leitz 500-012, Leitz 500-227, Leitz 620-068
- Zeiss 38-01-79, Zeiss 3800-29-9020
- Nikon 76906,
- Wild-Leitz 166-324,
- Stereomicroscopes with Lamp Housing (Older), Stereomikroskop 01, Stereomikroskop 02, Stereomikroskop D, Stereomikroskop DR, Stereomikroskop DRC, Stereomikroskop I, Stereomikroskop II, Stereomikroskop III, Stereomikroskop IV

Abbreviation Name	8017
Application	Projector
Base	BA15d Double Contact Bayonet
Bulb	T19
Class	C (gas)
Diameter d (in)	0.748
Diameter d (mm)	19
Distance a (in)	0.273
Distance a (mm)	7
Filament Dimensions Length (in)	0.047
Filament Dimensions Length (mm)	1.2
Filament Dimensions Width (in)	0.09
Filament Dimensions Width (mm)	2.3
Lamp Finish	Clear
Length l (in)	2.106
Length l (mm)	54
Length l max. (in)	2.106
Length l max. (mm)	54
Maximum Overall Length - MOL (in)	2.106
Maximum Overall Length - MOL (mm)	54
Nominal Voltage (V)	6
Nominal Wattage (W)	15
Operating Position	Any
Type of Current	AC

Manual:

Osram 76313 Data Sheet
