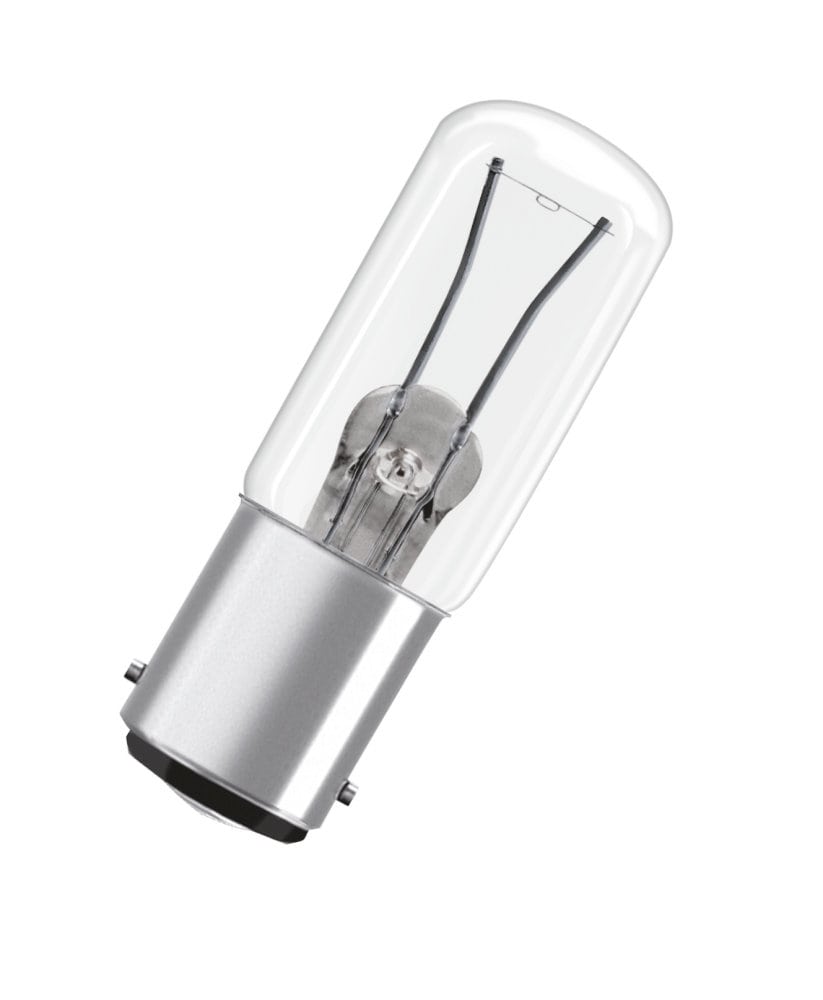

OSRAM 8018 15W 6V T19 BA15d Base Film Projector Bulb

Osram 8018 is a 15 watt T19 Incandescent Lamp. Typical lifetime is 100 hours. This lamp has a BA15D (B15d) Double Contact Bayonet base.

The Osram 8018 (SM-8018 product code 76314) is a 6 volt 15 watt incandescent microscope replacement lamp designed for scientific and medical applications, featuring a BA15d double contact bayonet base. This specialized, clear bulb operates for roughly 200 hours and fits various medical examination lights, providing a focused, high-quality light source. It has a rated life of 200 hours and a FC6Z filament. This bulbs overall length is 2.12 inches and has a BA15d Double contact bayonet base.

Features:
- ANSI Code: SM-8018, INC6V-15W/T19X52
- Voltage: 6V
- Wattage: 15W
- Base: BA15d (Double Contact Bayonet)
- Average Rated Life: 200 hours
- Compatibility: Used in Leitz and Nikon Microscopes/Measuring instruments
- Cross Reference: Microscope Illuminator Bulb, Leitz 500-012, Nikon 76906, Wild-Leitz 166-324, Philips 13347W, Osram 76314, Ushio 8000269, Dr Fischer 00843474

Brand	OSRAM
Abbreviation Name	8018
Application	Projector
Base	BA15d Double Contact Bayonet
Bulb	T19
Class	C (gas)
Diameter d (in)	0.748
Diameter d (mm)	19
Distance a (in)	0.195
Distance a (mm)	5
Filament Dimensions Length (in)	0.074
Filament Dimensions Length (mm)	1.9
Filament Dimensions Width (in)	0.059
Filament Dimensions Width (mm)	1.5
Lamp Finish	Clear
Length l (in)	2.028
Length l (mm)	52
Length l max. (in)	2.028
Length l max. (mm)	52
LIF Code	M/20
Maximum Overall Length - MOL (in)	2.028
Maximum Overall Length - MOL (mm)	52
Nominal Voltage (V)	6
Nominal Wattage (W)	15
Operating Position	h 30
Type of Current	AC
