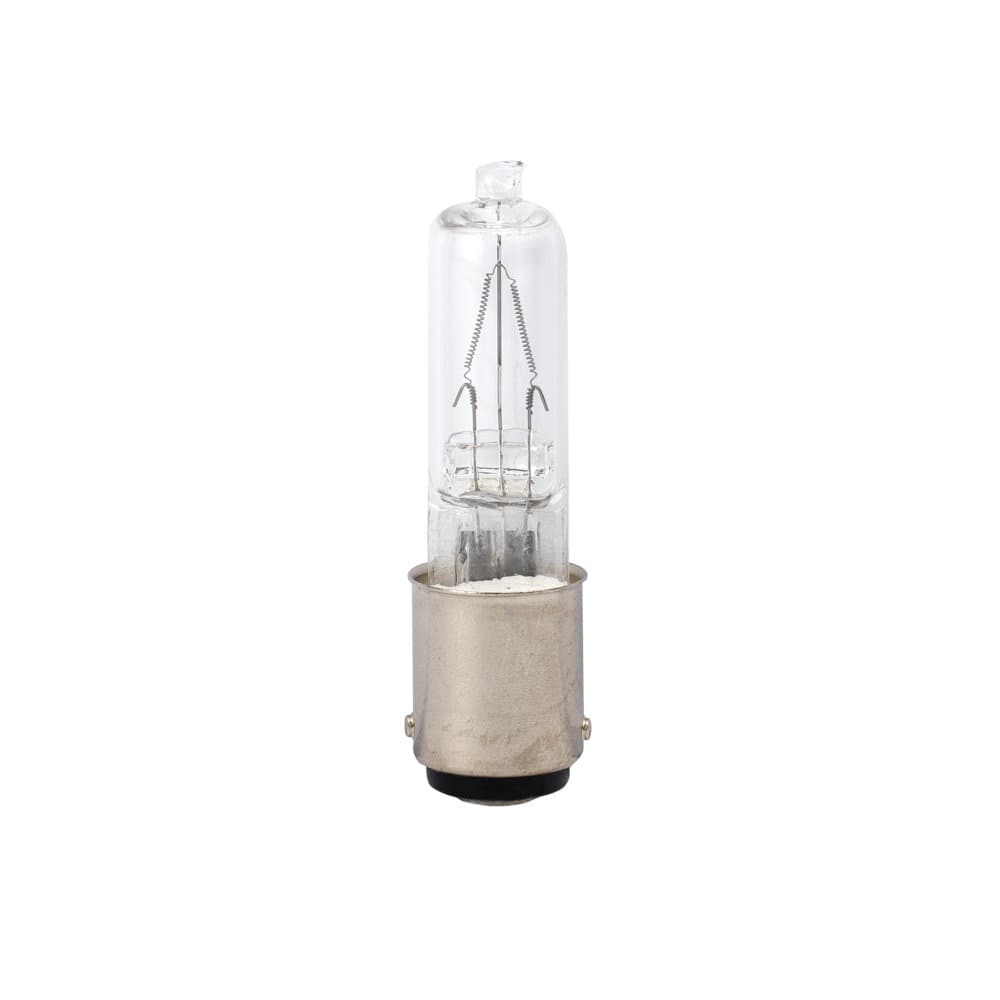

OSRAM CAX 50W 120V BA15d Halogen Light Bulb

OSRAM SKU: 58831

OSRAM

$899 $16.99
384 in stock



Description

Osram CAX is a 50 watt T4 Halogen Lamp. Typical lifetime is 250 hours. This lamp has a BA15d Double Contact Bayonet base.

Applications
- Projector
- Microfilm
- Microscope
- Studio Applications.

Specs

Abbreviation Name CAX
ANSI Code CAX
Application Projector, Microfilm, Microscope, Studio
Average Rated Life (hr) 250
Base BA15d Double Contact Bayonet
Bulb T4
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3000
Diameter d (in) 0.5
Diameter d (mm) 12.7
Distance a (in) 1.361
Distance a (mm) 34.9
Filament CC-2V
Lamp Finish Clear
Length l (in) 2.414
Length l (mm) 61.9
Length l max. (in) 2.414
Length l max. (mm) 61.9
Light Center Length - LCL (in) 1.361
Light Center Length - LCL (mm) 34.9
Luminous Flux (lm) 750
Maximum Overall Length - MOL (in) 2.414
Maximum Overall Length - MOL (mm) 61.9
Nominal Voltage (V) 120
Nominal Wattage (W) 50
Operating Position Any
Type of Current AC
