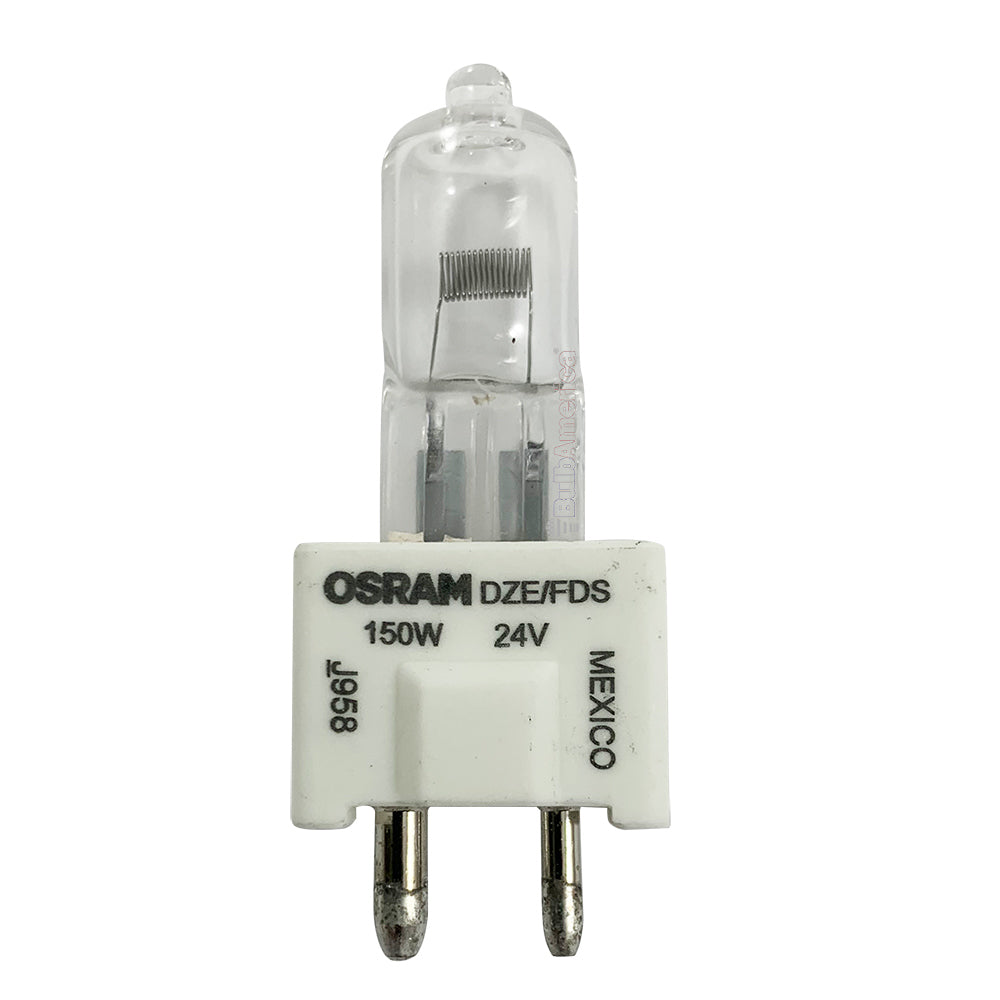

OSRAM DZE/FDS 150W 24V GY9.5 Halogen Light Bulb

OSRAM SKU: 54755
$858 $15.99
691 in stock



Description

Osram DZE/FDS is a 150 watt T12 Halogen Lamp. Typical lifetime is 100 hours. This lamp has a GZ9.5 Bipin Prefocus base.

Applications
- Projector
- Microfilm
- Stage & Studio

Specs

Abbreviation Name DZEFDS
ANSI Code DZE/FDS
Application Projector, Microfilm, Stage & Studio
Average Rated Life (hr) 100
Base GZ9.5 Bipin Prefocus
Bulb T12
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3300
Diameter d (in) 0.571
Diameter d (mm) 14.5
Distance a (in) 1.303
Distance a (mm) 33.4
Filament C Bar 6
Filament Dimensions Length (in) 0.16
Filament Dimensions Length (mm) 4.1
Filament Dimensions Width (in) 0.308
Filament Dimensions Width (mm) 7.9
Lamp Finish Clear
Length l (in) 2.231
Length l (mm) 57.2
Length l max. (in) 2.231
Length l max. (mm) 57.2
Light Center Length - LCL (in) 1.303
Light Center Length - LCL (mm) 33.4
Luminous Flux (lm) 4000
Maximum Overall Length - MOL (in) 2.231
Maximum Overall Length - MOL (mm) 57.2
Nominal Voltage (V) 24
Nominal Wattage (W) 150
Operating Position Any
Type of Current AC
