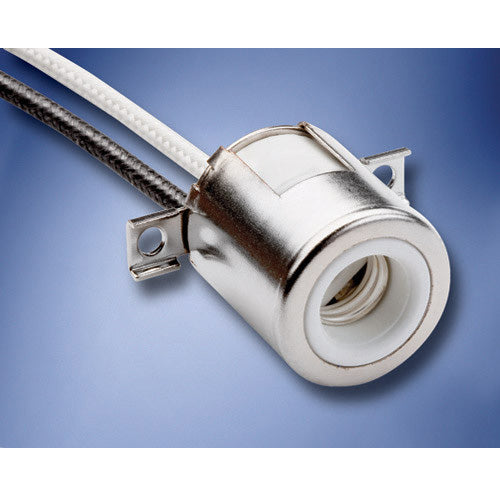

OSRAM E11 Mini-Candelabra Screw lamp holder ceramic socket

OSRAM SKU: 69783
$2299 $50.99 USD
350 in stock




Description

This item is discontinued, please check Related Products below for replacement items.

Lampholders, also referred as sockets, are key drivers of performance in any lighting system, and provide a safe, reliable connection to an electrical power source.
OSRAM socket products are of the highest quality in order to provide a safe and reliable connection that maximizes the life and performance of the lamp and socket system.

The E11 Mini-Candelabra Screw ceramic lamp holder (socket) is used for light bulbs like:
- EXY
- EYW
- EVR
- ESN
- ESM
- EHT
- EHV
- ESL
- ETG
- ETH

Features:
- Maximum Wattage: 1000W
- Maximum Voltage: 250V
Maximum - Operating Temperature 300C
- Qualifications UL Recognized
- E31557 CSA Certified
- LR20904
- Body Material: Steatite / Nickel Plated Steel Contact Material Screw Shell = Nickel Plated Brass Center Contact = Stainless Steel Wire Leads: AWG 18/16, 600 V / 200 C minimum

Specs

Abbrev. With Packaging Info. S2536IN18GAULSF2
Body Material Ceramic Steatite
Contact Material Nickel Plated Brass
CSA File No. LR20904

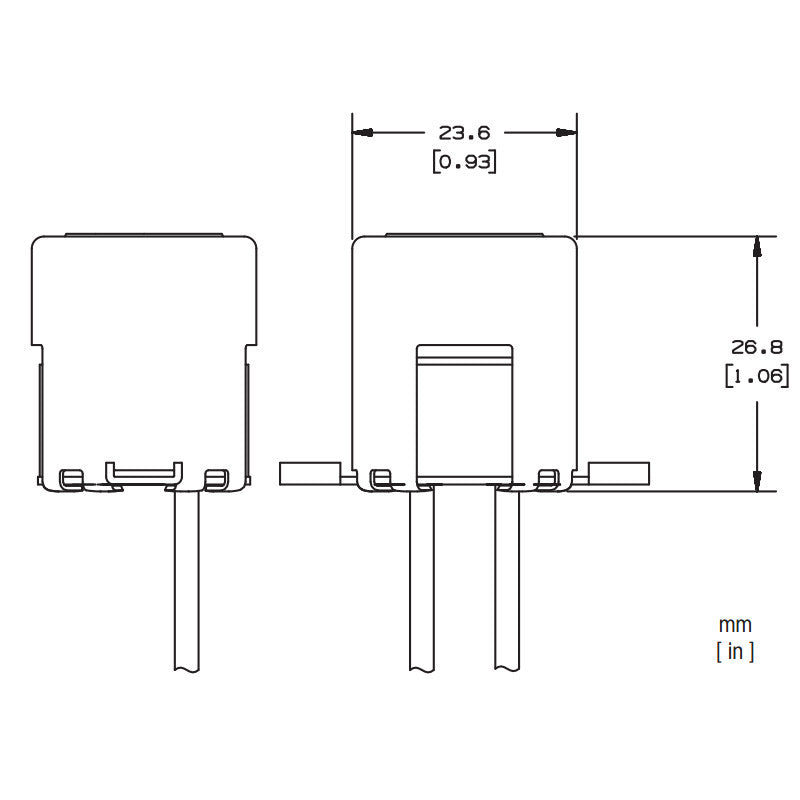

Height (in) 1.06
Height (mm) 26.8

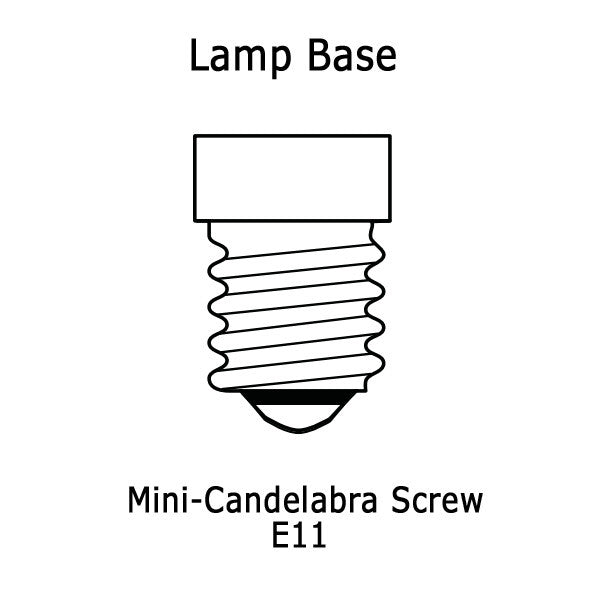

Lamp Base Reference E11
Lead Strip Length (in) 0.375
Lead Strip Length (mm) 9
Lead Length (in) 36
Lead Length (mm) 914

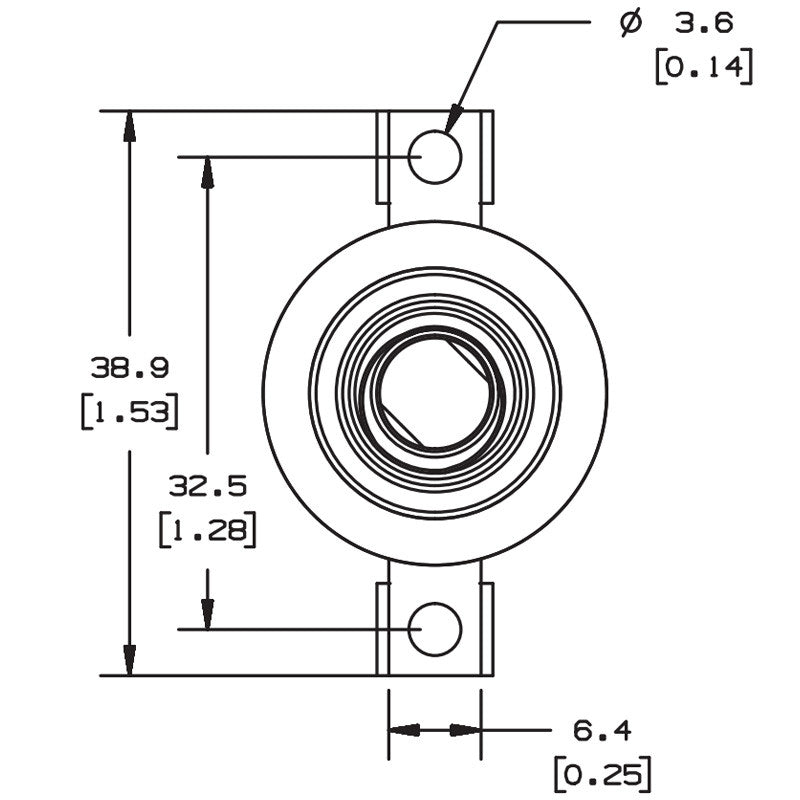

Length (in) 1.53
Length (mm) 38.9
Maximum Operating Temperature C 200
Maximum Voltage (V) 250
Maximum Wattage (W) 1000
Rohs Compliant Yes
Width (in) 0.93
Width (mm) 23.6
Wire Color(s) WHITE/BLACK
Wire Type SF2
Underwriters Laboratories File No. E31557
Wire Gauge (AWG) 18
‎
