OSRAM 54734 EKP ENA 80W 30V MR16 Halogen Medical Bulb

OSRAM SKU: 54734
$1037 $17.99 USD
251 in stock



Description

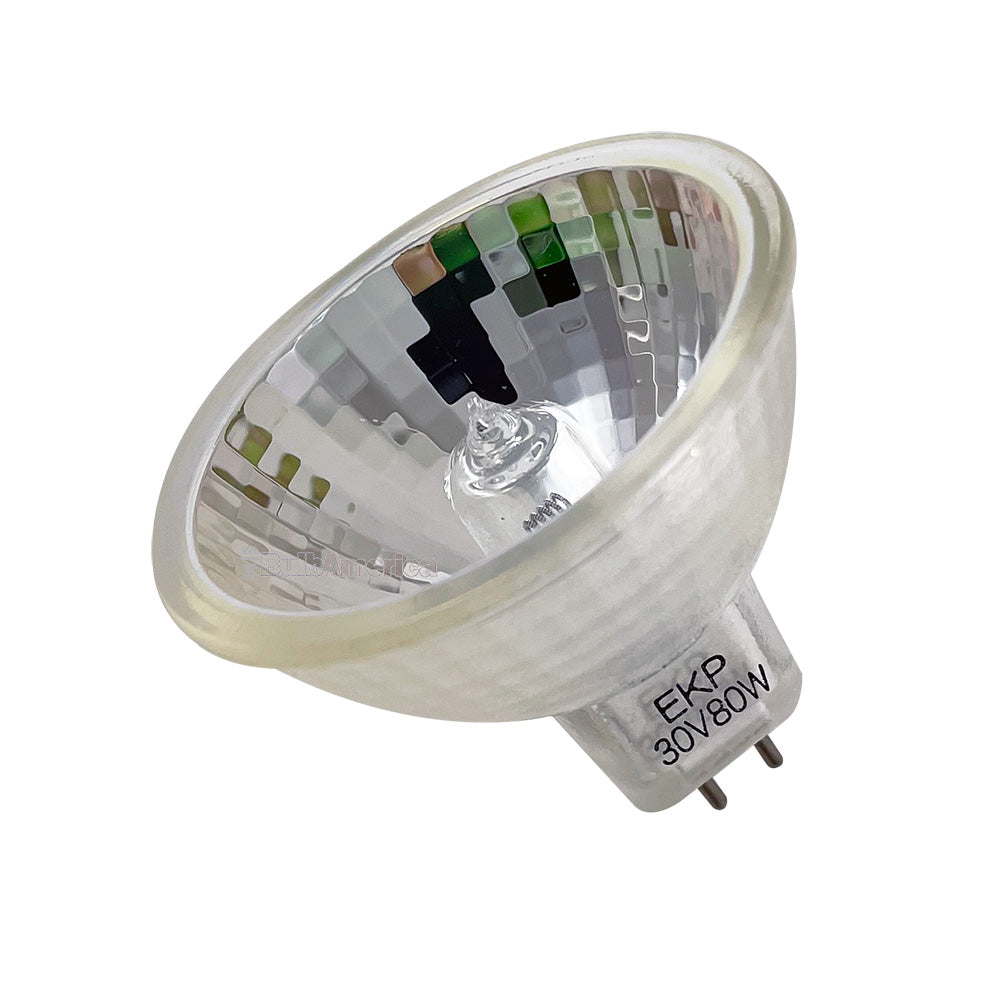

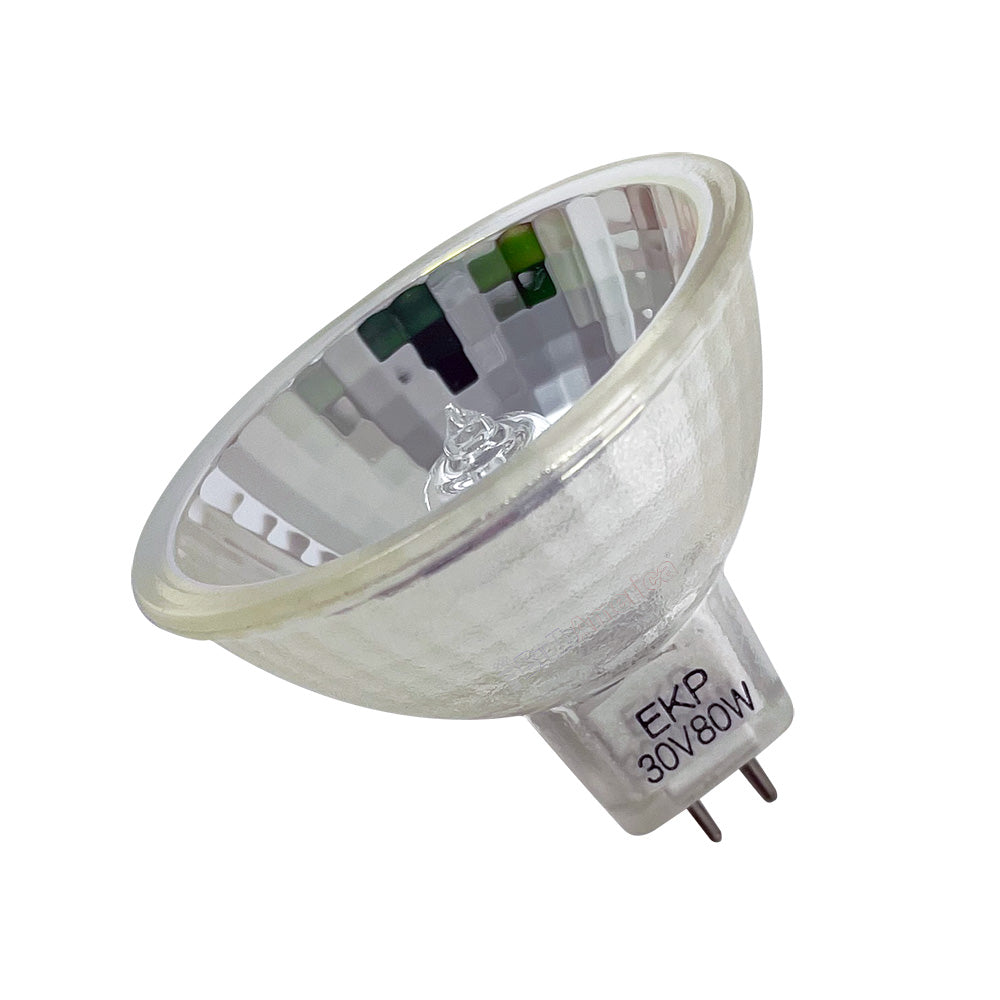

Osram EKP/ENA is a 80 watt MR16 Halogen Lamp. Typical lifetime is 25 hours. This lamp has a GX5.3 Bipin base.

Applications
- 8mm Movie Projector
- Fiber Optic Illuminator
- Medical Utility Lighting

CROSS REFERENCES
- Burton Medical 0001120
- Eiko 02350 EKP/ENA
- GE 35800 EKP/ENA
- Osram Sylvania 54734 EKP/ENA
- Ushio 1000312 EKP, JCR30V-80W

Specs

Abbreviation Name EKPENA
Application Projector - 8mm
Average Rated Life (hr) 25

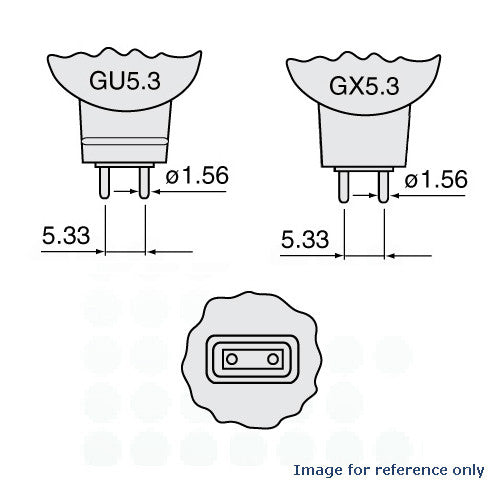

Base GX5.3 Bipin
Bulb MR16
Class C (gas)
Color Rendering Index (CRI) 100

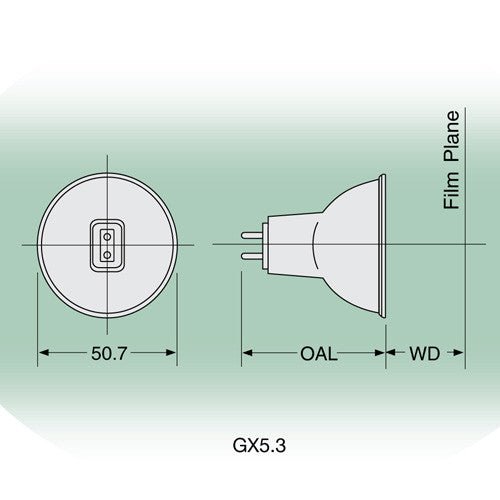

Diameter d (in) 2
Diameter d (mm) 50
Lamp Finish Clear
Length l (in) 1.486
Length l (mm) 38.1
Length l max. (in) 1.486
Length l max. (mm) 38.1
Luminous Flux (lm) 115
Maximum Overall Length - MOL (in) 1.689
Maximum Overall Length - MOL (mm) 43.3
Nominal Voltage (V) 30
Nominal Wattage (W) 80
Operating Position Any
Reflector Coating WHITE
Type of Current AC
Working Distance a (in) 1.131
Working Distance a (mm) 29

Equipment

The OSRAM EKP bulb is used in the following equipments:
- Burton Medical Utility Floorstand Spotlight
- DeJur Amsco Eldorado DP-84
- DeJur Amsco Eldorado DP-84Z
- DeJur Amsco Pulsar
- DeJur Amsco Eldorado 84-Z
- Frezzolini DMF30
- GAF (Ansco) Anscovision 788
- GAF (Ansco) 1788Z
