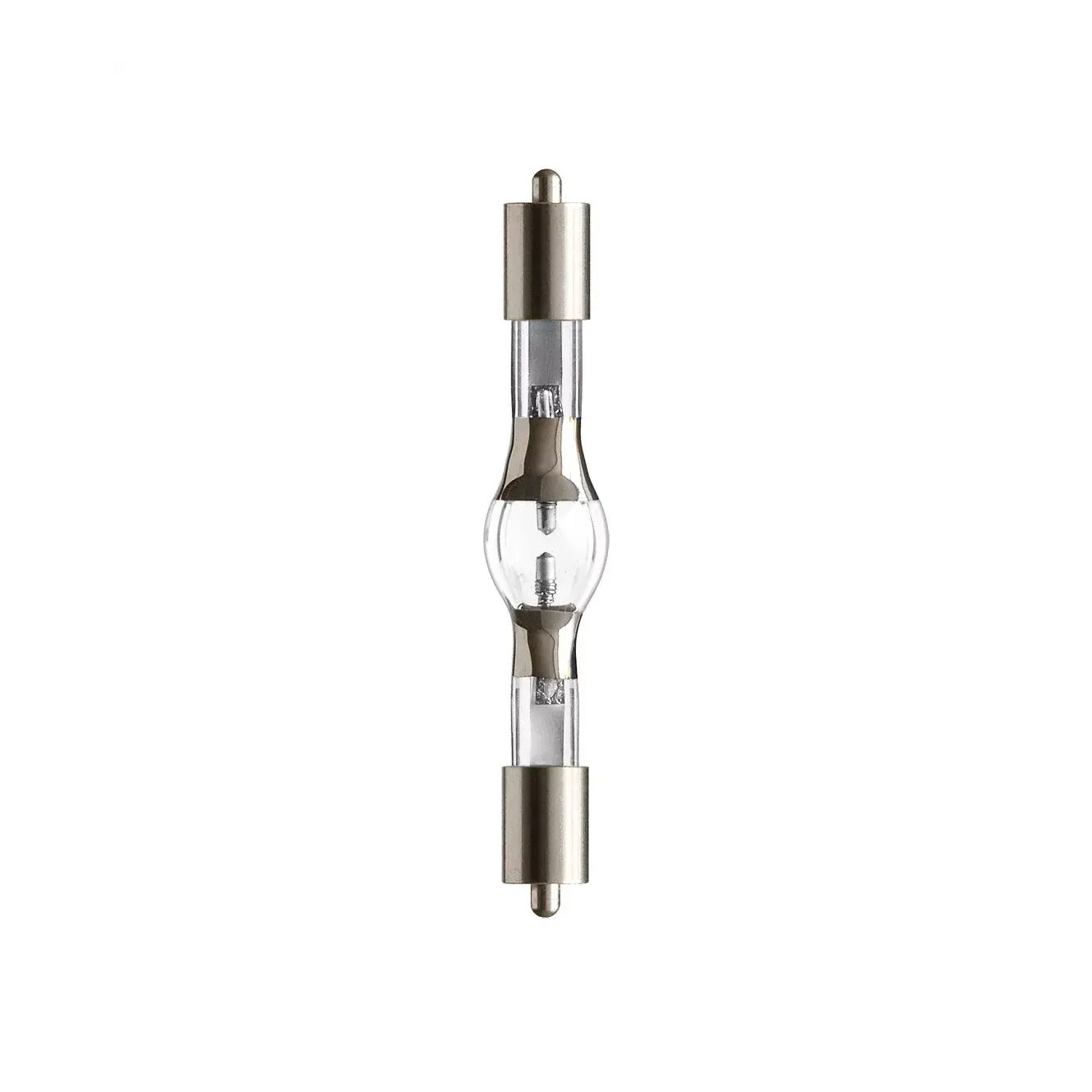

OSRAM HBO 50W/AC L2 50W 34V mercury short arc double-ended

OSRAM HBO 50W/AC L2 50W 34V mercury short arc double-ended

OSRAM SKU: 69214
$15499 $275.99 USD
39 in stock



OSRAM 69214 HBO 50 W AC L2 Mercury Short Arc Discharge Lamps are intense point sources that provide a broad spectrum through the visible and ultraviolet range.
The HBO 50 W AC L2 lamps are optimal sources for fiber illumination devices for Medical, Scientific, and various Industrial areas.
The broad spectrum makes these lamps ideal for microscopy applications.

Key Features and Benefits:
- High luminance / radiance with intense point source
- Broad spectral distribution in the visible and ultraviolet range
- Enhanced UV characteristics available on some types
- High arc stability

- Medical & Scientific
- Microscopy
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Industrial

- Fiber Illumination
- Microscopy
- Solar Simulation


Abbreviation Name HBO50WACL2
Application UV Light Curing, Microscopy
Average Luminance (cd/cm2) 30000
Base Anode SFa6-2
Base Cathode SFa6-2
Bulb KO118
Class C (gas)
Cooling Convection
Current (A) 1.45
Diameter d (in) 39.331
Diameter d (mm) 999
Distance a (mm) 22
Family Brand Name HBO
Lamp Finish Clear
Length l1 (mm) 53
Length l1 max. (mm) 53
Length l2 (mm) 47
Length l2 max. (mm) 47
Light Center Length - LCL (mm) 22
Luminous Area w x h (mm) 0.3 x 1.0
Luminous Efficacy (lm/W) 40
Luminous Intensity (cd) 230
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 53
Nominal Voltage (V) 34
Nominal Wattage (W) 50
Operating Position s 45
Reflector Coating 999
Type of Current AC
CA Prop 65 Yes
CA Prop 65 Material Mercury
