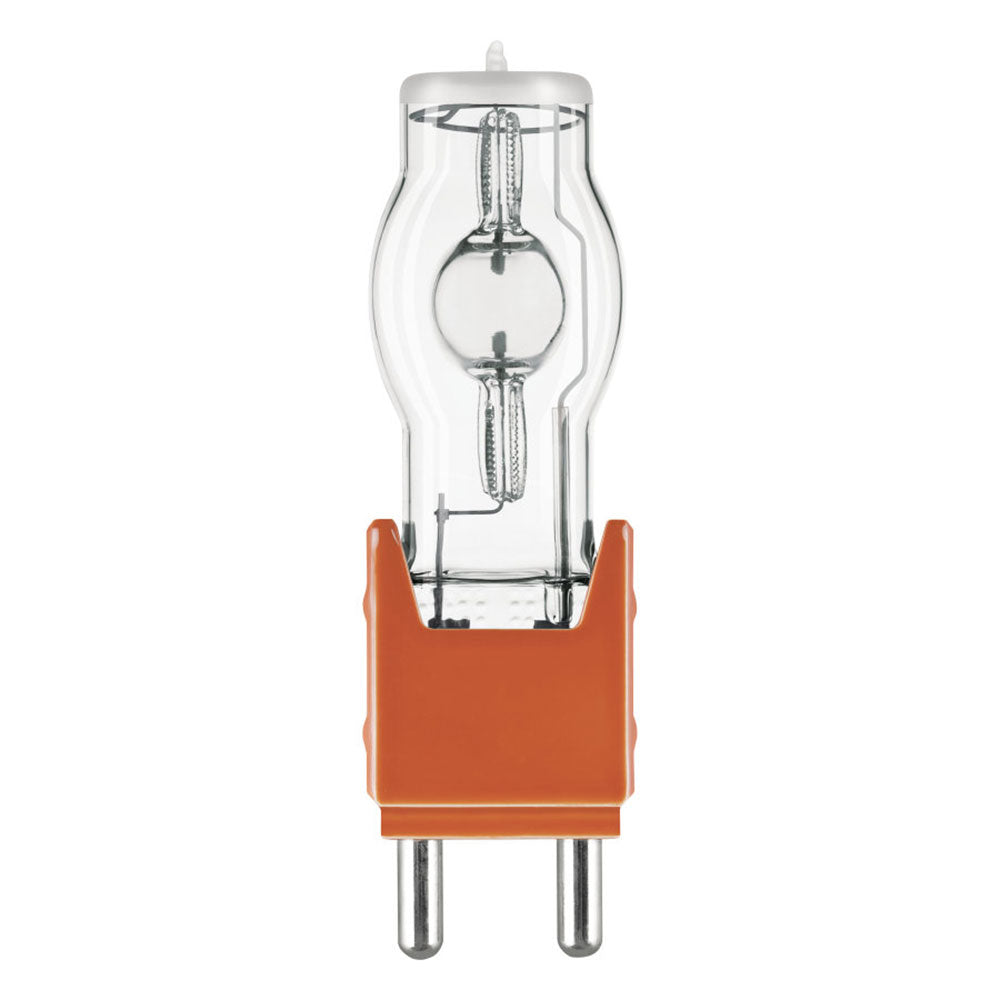

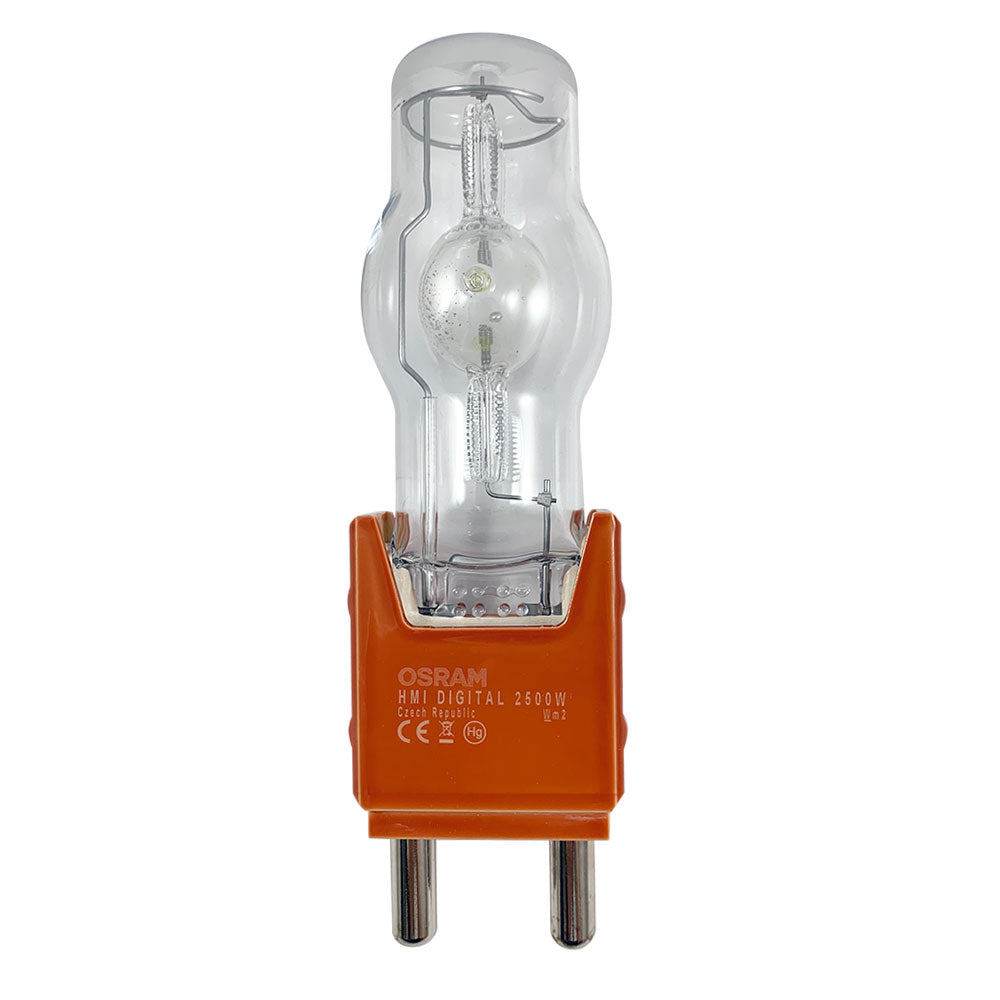

OSRAM HMI DIGITAL 2500W 118v G38 base 6300K Metal Halide bulb

OSRAM SKU: 55182
$17299 $251.99 USD
101 in stock



1

Description

OSRAM HMI Digital 2500W metal halide bulb - G38 base, single end, 6300K, UV stop quartz. Excellent hot-restart.

Osram 55182 HMI Digital 2500W bulb is replacing the Osram 54070 HMI2500W/SE

Cross Reference:
- HMI2500W/SE Osram 54070
- HMI2500w/SE/XS 302653 54070
- MSR2500/HR Ph 245811
- CSR2500/HR DIS-25H UV-B = USR2500 = BA2500 SE HR
- TruArc 2500W SE
- AMHK2500HR
- BA2500SE HR
- DSE2500
- RSI2500WSE

Application:
- FILM, TV & VIDEO PRODUCTION - Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees Celsius.
- UVS=UV-Stop. UVS technology reduces harmful UV-B and UV-C ultraviolet radiation emissions by 99%.
- Designed to approximate daylight color temperature (5600K to 6200K) inside of a fixture. Note that color temperature will vary based on the ballast used and its operating frequency.

Specs

Abbreviation Name HMIDIGITAL2500W 1/CS 1/SKU
Application Film, TV & Video Production
Base G38 Mogul Bipost
Bulb GST60
Color Rendering Index (CRI) 90
Color Temperature (K) 6300
Cooling Convection
Current (A) 24.5
Diameter d (mm) 60
Distance a(mm) 127
Family Brand Name HMI DIGITAL
Hot Restart Yes
Length l (mm) 225
Light Center Length - LCL (mm) 127
Electrode Gap (cold) (mm) 14
Luminous Flux (lm) 220
Maximum Overall Length - MOL (mm) 225
Nominal Voltage (V) 118
Nominal Wattage (W) 25000
Operating Position Any
Type of Current AC
CA Prop 65 Yes
CA Prop 65 Material Mercury

Equipment

The MSR 2500 HR bulbs is used in following equipment
- ARRI ARRI Daylight 2500 SE
- ARRI ARRI Daylight Compact 2.5 kW
- ARRI ARRI X 40/25
- ARRI ARRISUN 40/25
- Cameleon Lyre 2500
- Coemar Bomber
- De Sisti Goya 2.5-4 kW
- De Sisti Rembrandt 1.2/2.5 kW
- De Sisti Rembrandt 2.5/4 kW
- De Sisti Remington 2.5-4kW
- Despar Rembrandt - Piccolo 2500 W
- F.A.L. Comet 2500
- F.A.L. Meteorite 2500
- F.A.L. Sky-liner 2500
- Griven Dardo 2500
- Griven Shuttle dmx 2500
- Kobold Licht Bel. DL 2500 FR / SE
- Kobold Licht Bel. DLf 2500 SE
- Lampo, Weichhart Traviata TE Sequipersona
- LTM Ambiarc 2500
- LTM Cinepar 2500
- Mole - Richardson Type 6641
- Mole - Richardson Type 8361
- Narva, Imax Followspot 2500
- Niethammer, AVAB HMZ 215
- Niethammer, AVAB MZS 254
- Niethammer, AVAB MZU 256
- Philips Strand Lighting Sirio Bambino 2500 W
- Philips Strand Lighting Super Quasar
- Robert Juliat 900 SX Range
- Robert Juliat Tungstein 500
- Spotlight, Korner Vedette 25MMT
- Spotlight, Korner Verfolger MSR 2500 ZOOM/Figura 25ZS

Video

Additional Info

Manual:

HMI� DIGITAL
