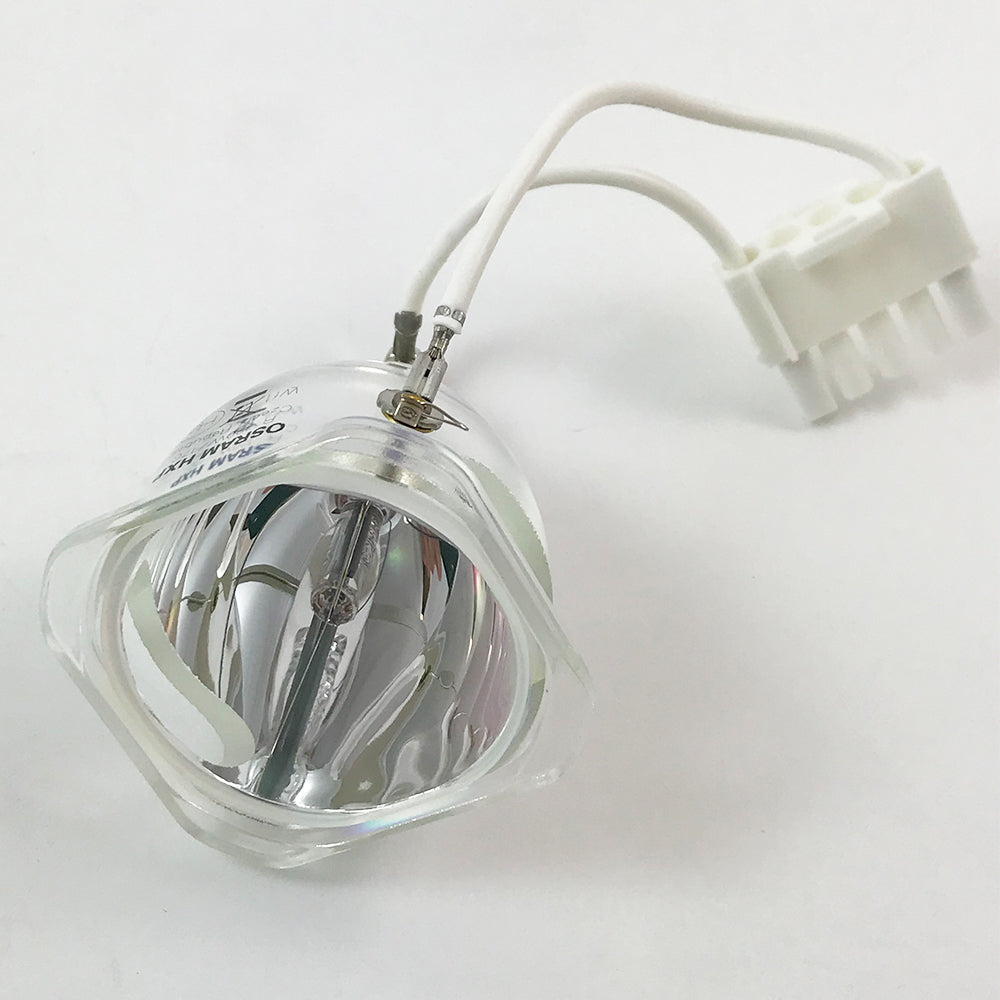

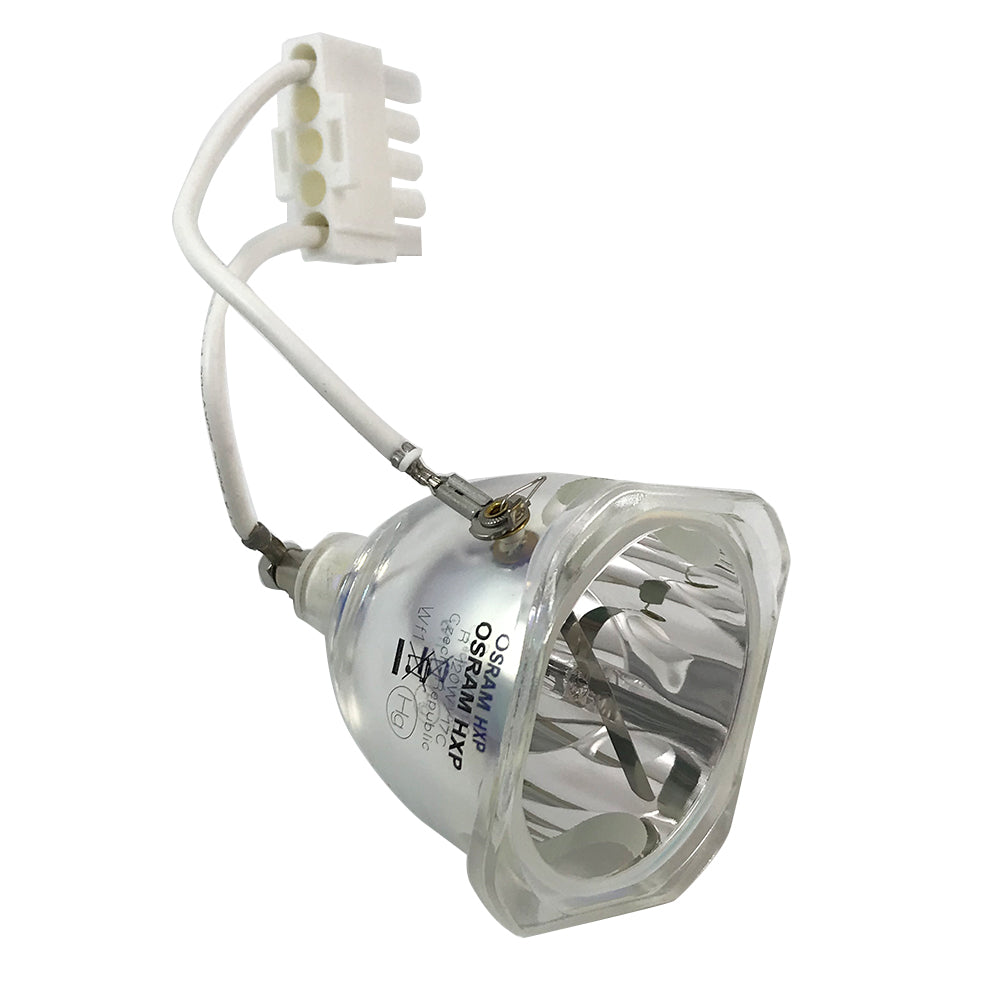

OSRAM HXP R 120W/17C 2X1 mercury short arc discharge Lamp

OSRAM SKU: 68895

OSRAM

$48499 $599.99
43 in stock



Description

OSRAM 68895 HXP R 120W/17C 2X1 Mercury Short Arc Discharge Lamps are intense point sources that provide a broad spectrum through the visible and ultraviolet range.
The HXP R 120W/17C 2X1 lamps are optimal sources for fiber illumination devices for Medical, Scientific, and various Industrial areas.
The broad spectrum makes these lamps ideal for microscopy applications.

Key Features and Benefits
- High luminance / radiance with intense point source
- Broad spectral distribution in the visible and ultraviolet range
- Enhanced UV characteristics available on some types
- High arc stability

Application
- Medical & Scientific
- Microscopy
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Industrial

Industrial
- Fiber Illumination
- Microscopy
- Solar Simulation

Specs

Abbreviation Name HXPR120W17C2X1
Application MEDICAL AND INDUSTRIAL FIBER OPTICS
Average Rated Life (hr) 2000
Base Special
Bulb REFLECTOR
Class C (GAS)
Current (A) 1.4
Hot Restart YES
Lamp Finish Clear
Length l1 (mm) 76.5
Length l1 max. (mm) 76.5
Maximum Overall Length - MOL (mm) 77
Nominal Wattage (W) 120
Operating Position P 20
Type of Current AC
Working Distance a (mm) 17.3
