OSRAM R7s/RX7s and RSC Ceramic Socket Lamp Holder - 12inch Lead has a rating of 5.0 stars based on 2 reviews.

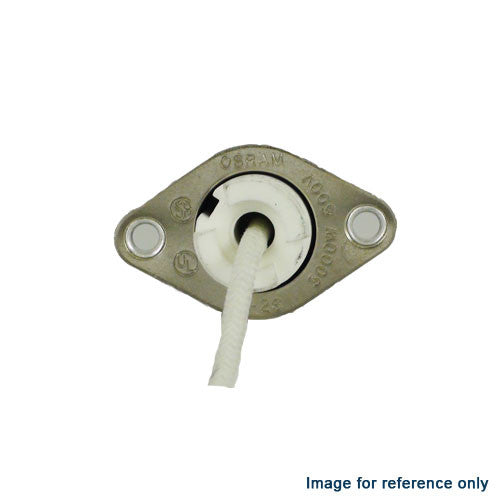

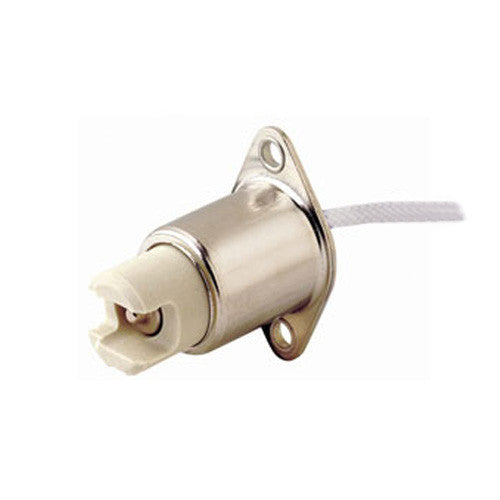

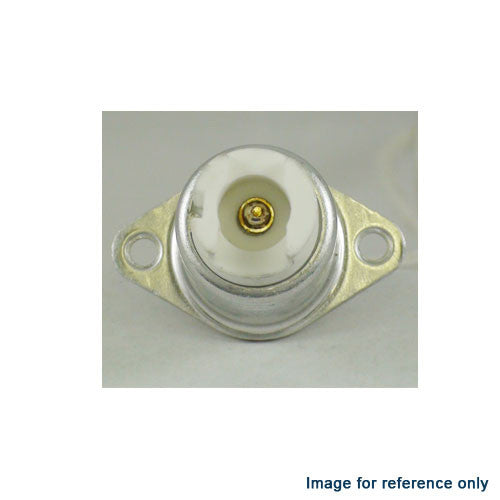

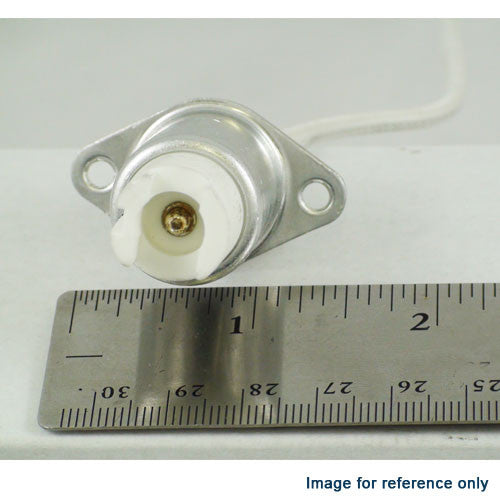

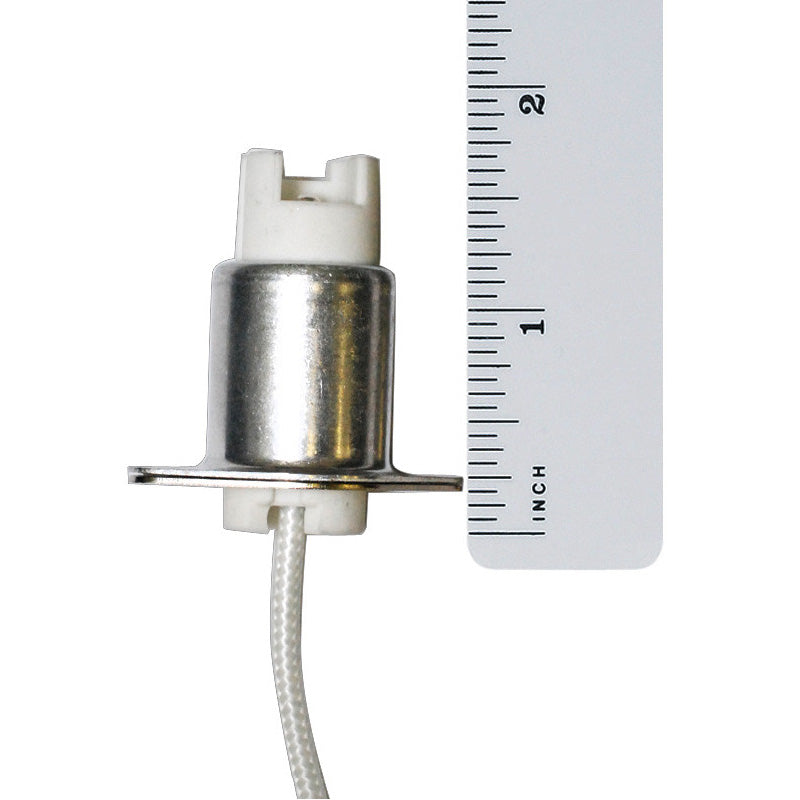

OSRAM R7s/RX7s and RSC Ceramic Socket Lamp Holder - 12inch Lead

OSRAM SKU: 69673
$1799 $32.99 USD
43 in stock




1

Description

This lamp holder is for bulbs with R7s and RX7s base, like:

- 150/25T4, FCM, FFM, DWT, FDA, FHM, DXW, FDB, 64579 115-120V, EHP, FDN, FFT, EHR, FER, 6.6A/200T5/CL/64380, EJG, FEX/230, 6.6A/45T3/CL/64315, FAD, FEX/240, 1600T3Q/IR/7 240V, FAL, FEY, 2500T3Q/IR/7 480V, FCB, FFJ, 500T3Q/IR/7 120V
- Brand Name: OSRAM

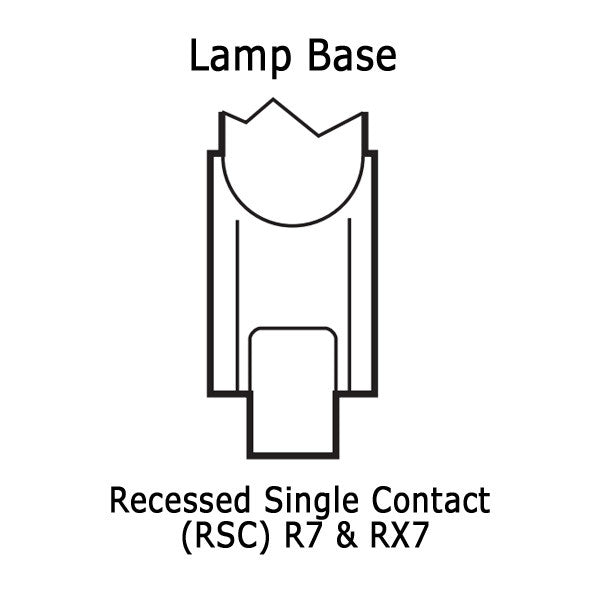

- R7s, RX7s Recessed Single Contact (RSC) socket
- Wire Gauge: 16 AWG
- Maximum Voltage: 600 Volt
- Maximum Wattage: 3000 Watt
- Lead Length: 12 inch

Specs

Manufacturer OSRAM
Part Number 69673
UPC 046135690129
EAN 4008321499875
Application Socket
Color White
Contact Material Silver Plated Copper
Operation Temperature (F) 662
Type S26
Voltage (V) 600
Wire Guage/Type AWG16 SF2
Length (in) 12.00
