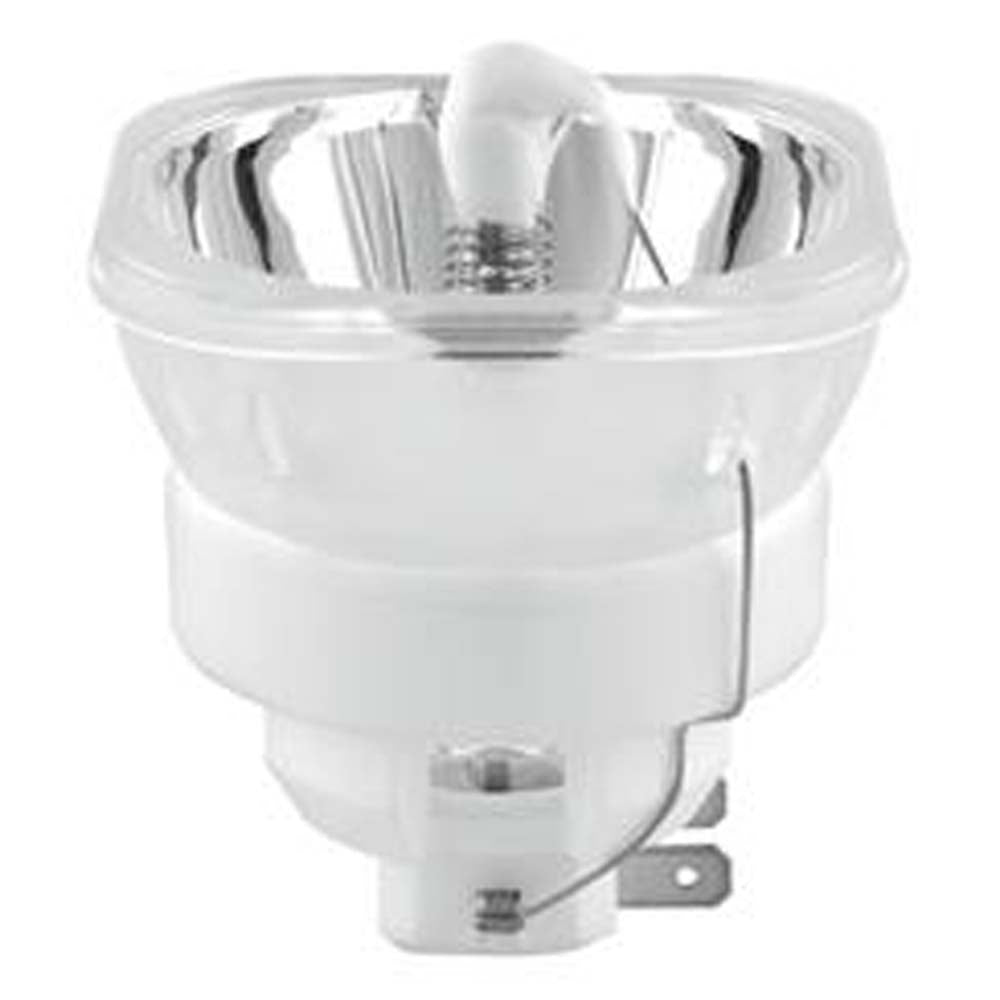

OSRAM Sirius HRI 550W XL FS1 Compact Reflector Lamp

The OSRAM SIRIUS HRI 550W XL replacement lamp has a OSRAM product code of 55247. This OSRAM SIRIUS HRI 550W XL lamp is a 550 watt bulb. The OSRAM SIRIUS HRI 550W XL bulb is a 90 volt bulb. The OSRAM SIRIUS HRI 550W XL replacement lamp has a part number of BC16431. The maximum overall length of the OSRAM SIRIUS HRI 550W XL replacement bulb is 2.300 inches or 58.4 millimeters. The bulb diameter of the OSRAM SIRIUS HRI 550W XL replacement lamp is 2.126 inches or 54.0 millimeters. The OSRAM SIRIUS HRI 550W XL replacement lamp is often referred to by the product code 55247. The OSRAM SIRIUS HRI 550W XL replacement bulb has a reorder code of BC16431. The manufacturer continuous use average life rating for this OSRAM SIRIUS HRI 550W XL lamp is 1500 hours. The color temperature of this replacement lamp is 7500 degrees Kelvin. The rated lumens value of the OSRAM SIRIUS HRI 550W XL replacement bulb is 28000. The color rendering index of the OSRAM SIRIUS HRI 550W XL replacement bulb is 75. The operating position of this replacement bulb is Universal.

Features:
- Lightweight and compact reflector lamps
- Perfectly suited for small and lightweight moving heads
- Optimized burner design allows any burning position
- High luminance through very short arc and high pressure
- Bright light for brilliant light effects
- Long lifetime
- Easy lamp replacement
- Stable light output over the entire lifetime

Areas of application:
- Concert lighting
- Club and disco
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment

Safety Advice:

Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Brand Name	OSRAM
Abbreviation Name	SIRIUS HRI 550W XL FS1
Bulb	REFLECTOR
Wattage	550w
Volts	90v
Average Rated Life (hr)	1500 hrs
Luminous Flux (lm)	28000
Color Temperature (K)	7500k
CRI	75
Electrode Gap (cold) (mm)	1
MOL	2.300 in (58.4 mm)
Diameter	2.126 in (54.0 mm)
Operating Position	Universal
CA Prop 65	Yes
CA Prop 65 Material	Mercury
UPC	4062172078153

Manual:

55247 Data Sheet
