OSRAM TP22H G9.5 Lampholder Ceramic Socket 1000w 250v 3 Wire 64in Lead 16GA CE
has a rating of 4.8 stars
based on 6 reviews.
OSRAM TP22H G9.5 Lampholder Ceramic Socket 1000w 250v 3 Wire 64in Lead 16GA CE
SKU: 69017
$2899 $39.99
USD
Description
This OSRAM socket is designed to be used with any G9.5 base and HPL with heatsink Bulbs.
This socket will fit all generations of ETC Source Four fixtures and HPL bulbs.

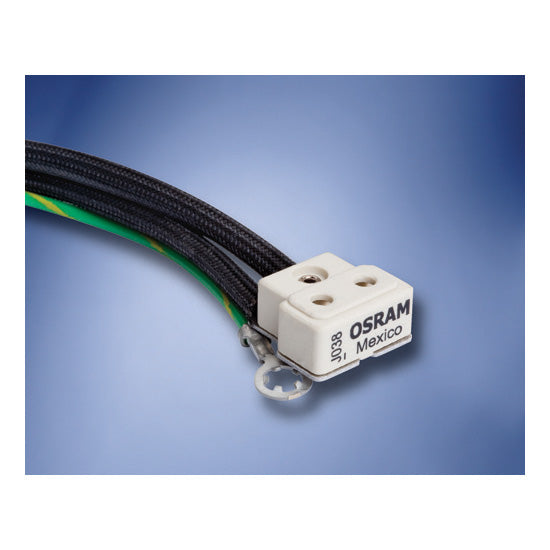

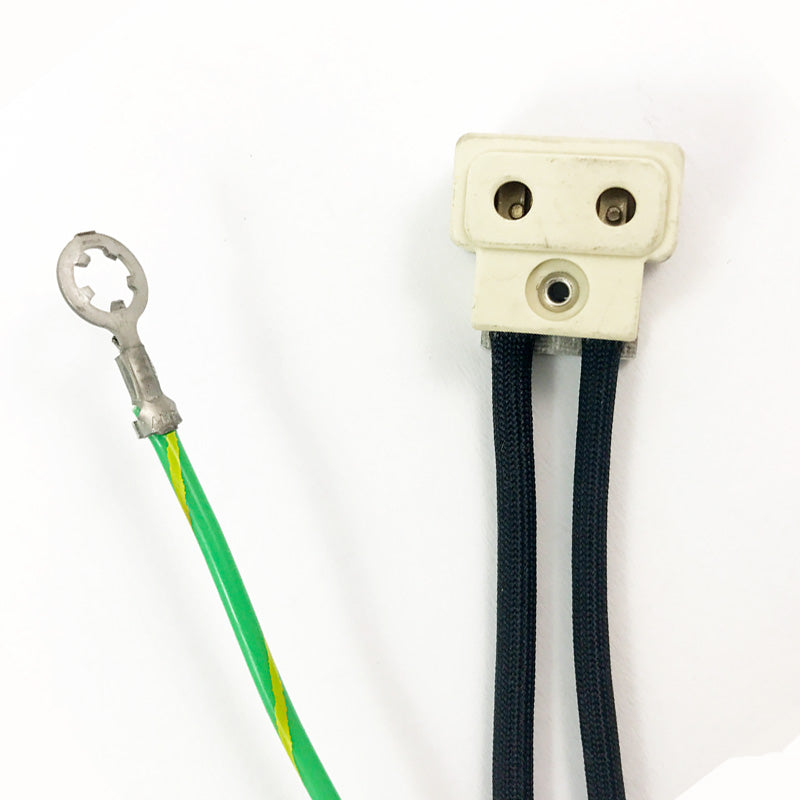

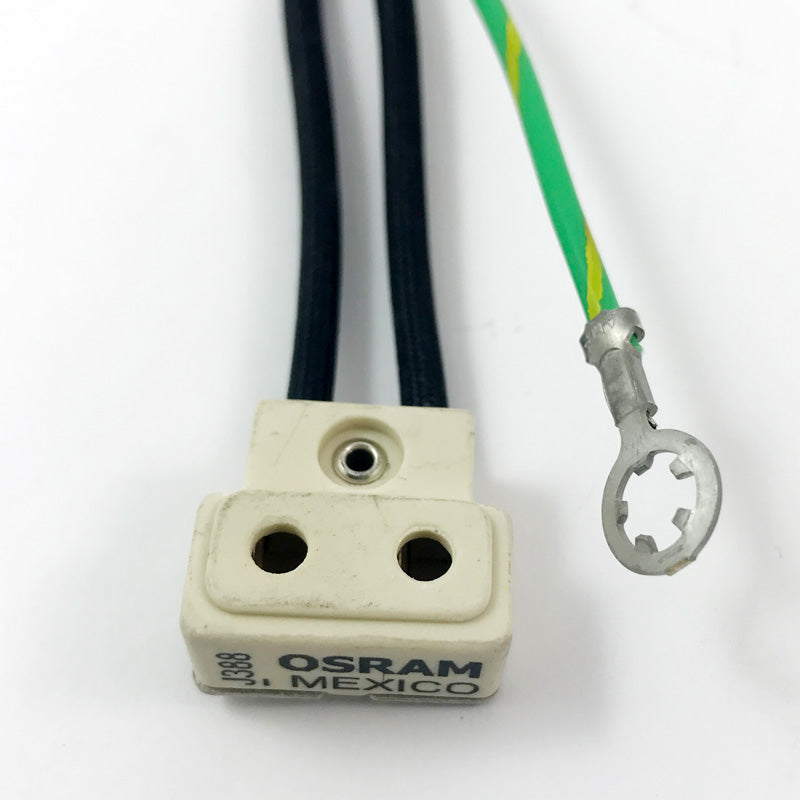

The TP22H ceramic socket has nickel plated contacts with high temperature stainless steel backer springs.
The socket comes with two 16 gauge wires with PTFE high temperature wire jackets and a ground wire. This socket is UL approved and is designed for 250v 1000W and maximum temperature of 300 degrees Celsius.
This socket will fit all generations of ETC Source Four fixtures and HPL bulbs.
The TP22H ceramic socket has nickel plated contacts with high temperature stainless steel backer springs.
The socket comes with two 16 gauge wires with PTFE high temperature wire jackets and a ground wire. This socket is UL approved and is designed for 250v 1000W and maximum temperature of 300 degrees Celsius.
Specs
| Abbrev. With Packaging Info. | TP22HCE165CM16GAUL1659 |
| Body Material | Ceramic Steatite |
| Contact Material | Silver Plated Nickel |
| CSA File No. | LR20904 |
| Height (in) | 0.43 in. (10.8 mm) |
| Length | 0.75in. (19 mm) |
| Width | 0.85in (21.7 mm) |
| Lamp Base Reference | G9.5, Bi-Pin |

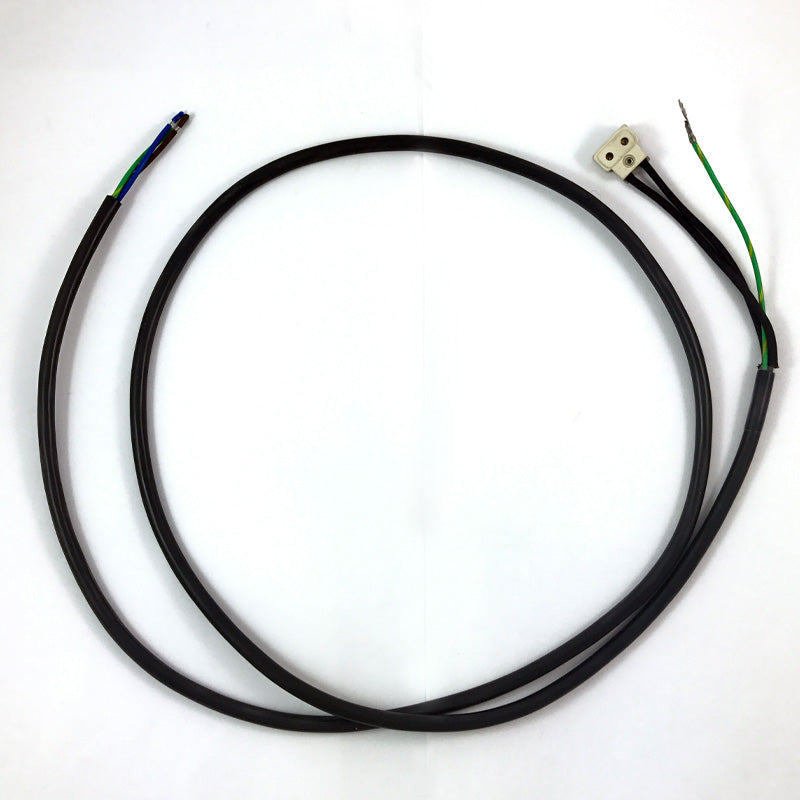

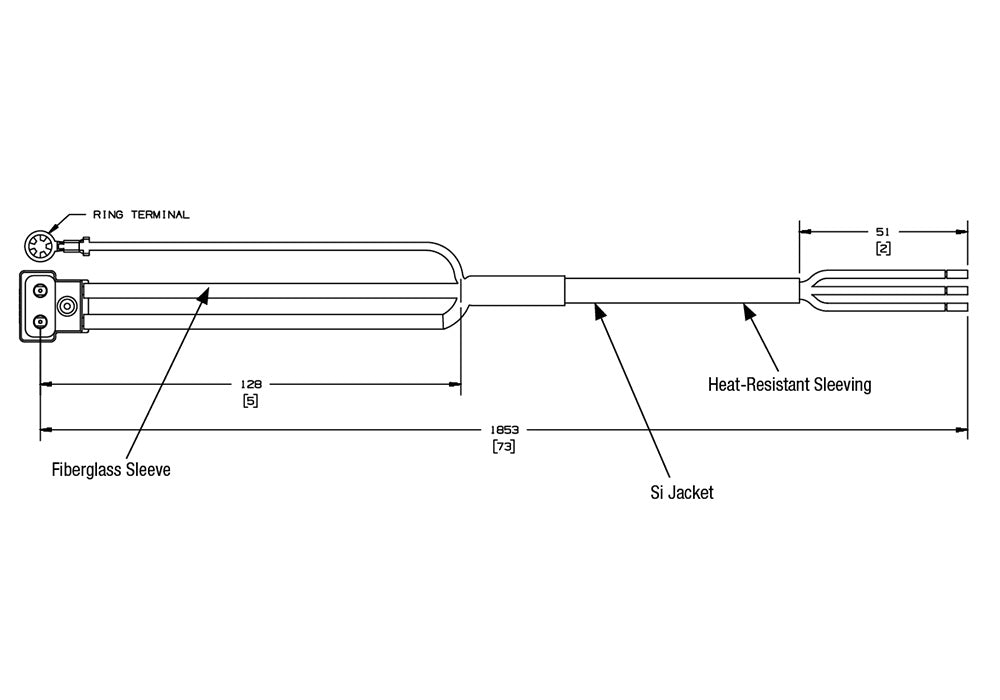

| Lead Strip Length | 64 inch (165cm) |
| Maximum Operating Temperature C | 250 |
| Maximum Voltage (V) | 250 |
| Maximum Wattage (W) | 1000 |
| Rohs Compliant | Yes |

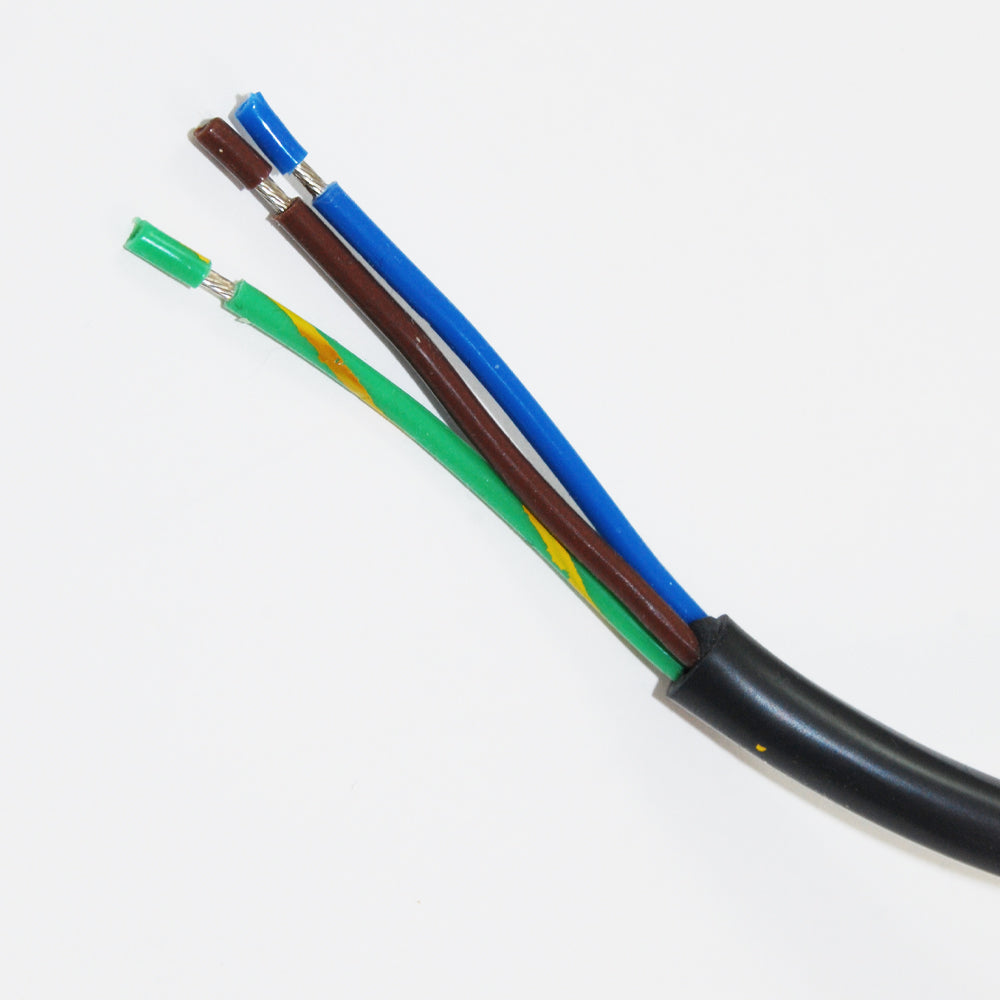

| Wire Color(s) | Brown, Blue, Green |
| Wire Type | PTFE Jacket |
| Underwriters Laboratories File No. | E31557 |
| Wire Gauge (AWG) | 16 |
