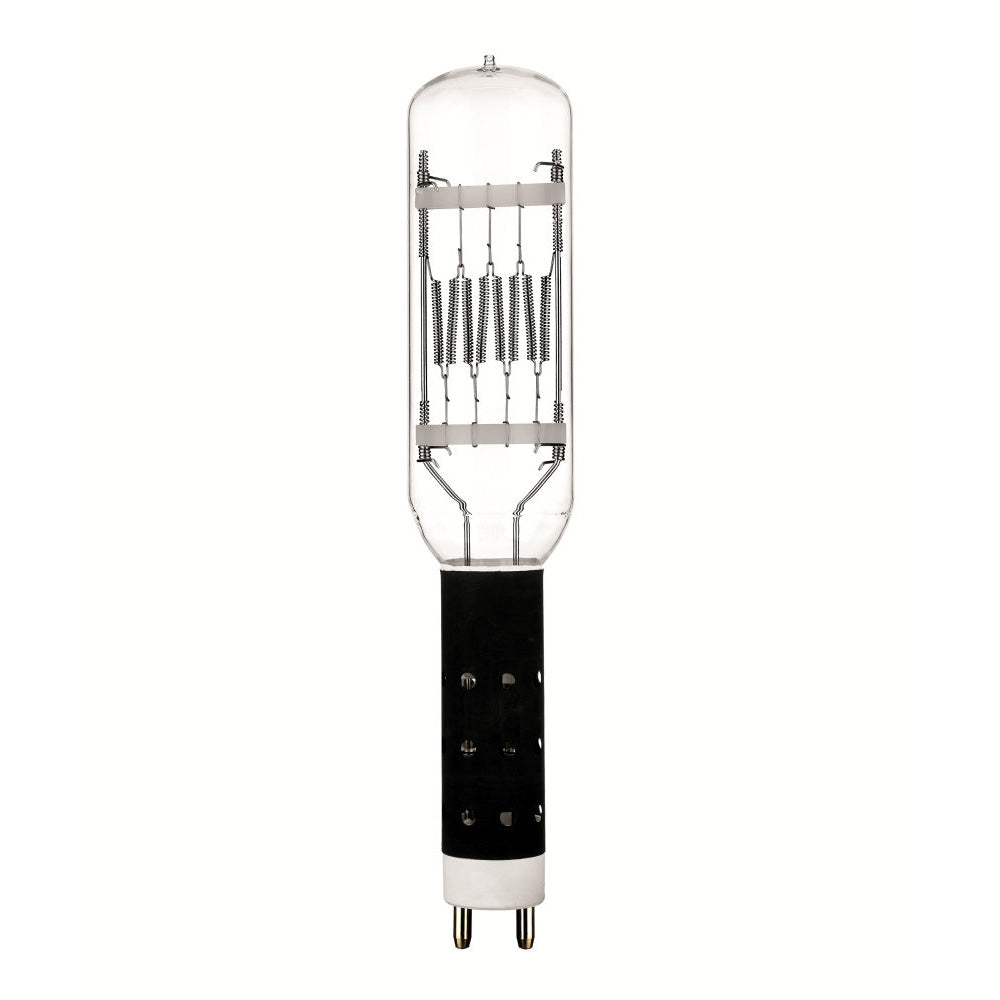

OSRAM BCM - 20,000w 230v 64818 CP99 G38 Base Studio and Film Lamp

Osram 54342 BCM - 20,000 watts 230 volts BCM 64818 G38 Mogul Bipost Base Single Ended Halogen Light Bulb.
The BCM bulbs is used in the following equipment
- Mole - Richardson Type 2471
- Mole - Richardson Type 8351
- ARRI L2.0005136 Studio T STUDIO T24 FRESNEL
Cross Reference:
- OSRAM CP/99, CP99, CP-99,
- OSRAM BCM 64818, 54342
- Koto KP200-220V-230V, KP200, KP200/220-230V
- GE 48771 BCM Q20MT32/4CL 230
- GE 48774 BCM Q20MT32/4CL 240
- BCM/20K/230v, BCM/220-230V-KT
- LBCM/220-K
- Primary article identifier: 4050300782713 | 4008321792051

Product features and benefits
- Robust construction for reliable, lasting performance
- Consistent color over the life of the lamps
- Instant on and nearly constant luminous flux over the life of the lamp
- Broad product portfolio supporting the stage and studio markets
- Dimmable to 0% with traditional amber shift
Areas of application
- Stage & Theatre
- Studio, TV, & Film
- Professional Photography
- Club & Disco

BRAND	OSRAM
SKU	54342
ANSI code	BCM
LIF code	CP/99, CP99, CP-99
Global order reference	64818
Bulb Type	Halogen Bulbs
Base	G38 Mogul Bi-Post
Wattage (W)	20,000W
Voltage (V)	230V
Nominal luminous flux	570,000LM
CCT	3200K
Voltage (V)	230V
Diameter (in)	3.937
Maximum Overall Length (in)	21.45
Filament	C-13-8
Rated Life	350 Hours
Shape	T100
Primary article identifier	4050300782713 | 4008321792051

Manual:

OSRAM 54242 BCM 64818 CP/99 20KW 230V
