OSRAM 58850 - 64322 EXL DL 30W 6.6A GY9.5 Base Airfield Bulb

OSRAM 58850 - 64322 6.6A EXL DL 30 Watt Halogen Current Controlled GY9.5 Base Airfield Bulb

Cross Reference Part Numbers
- GE EXL
- Osram 64322 EXL/DL
- Osram 58850 4008321100146, 046135588501
- Philips 6112LL 9230751859, 9230 751 859
- SLI L2500 / 21757
- Narva 58312 6112 LL EXL
- Narva 4250686502213

Product features and benefits
- Wattage: 30W,
- Light Output: 400 Lumens

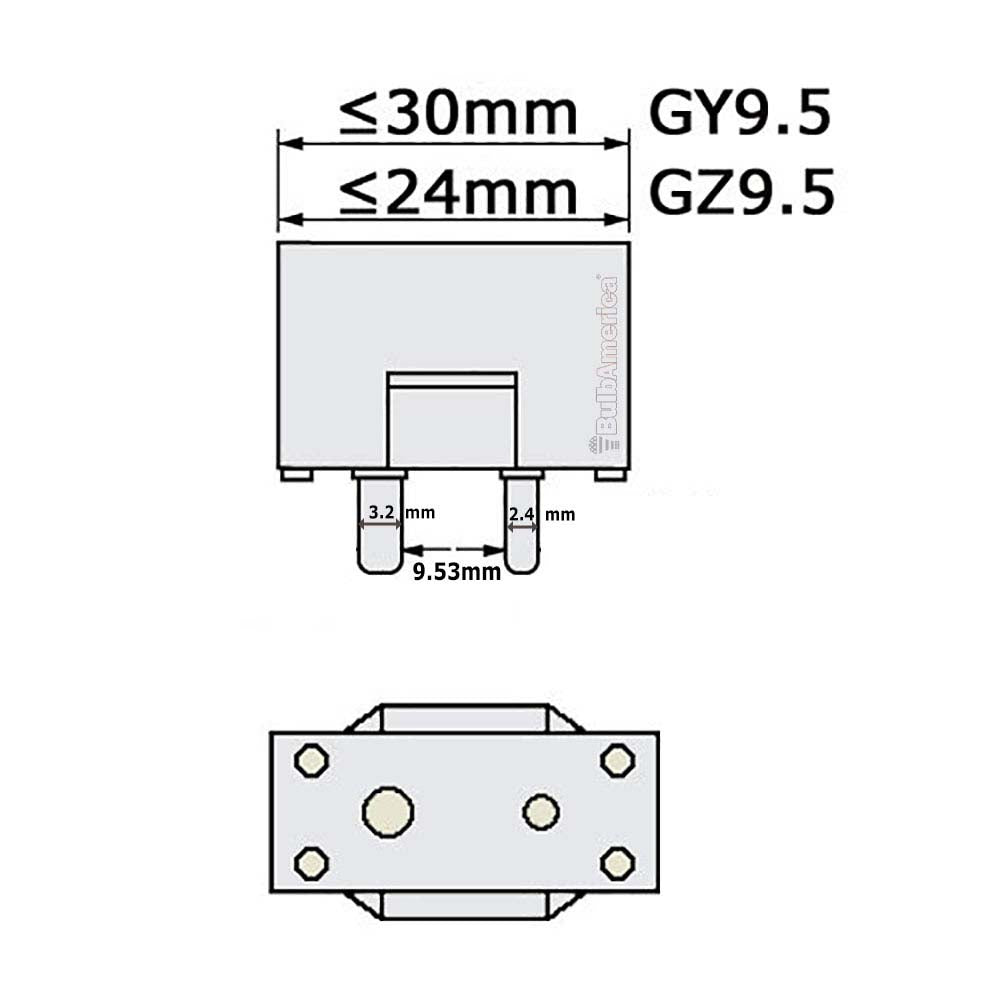

- Base: GY9.5 Bi-Pin
- Low maintenance costs due to long lamp life
- Consistent light output over the life of the lamp
- Durable construction provides resistence to the effects of vibration
- IR radiation provides guidance in low visibility conditions and facilitates defrosting in cold climates
- FAA approved in conjunction with many OEM fixtures
- Dimmable
- Flicker-free operation
- Ability to reduce light output when needed
- Mercury-free​

Areas of application
- Airfield Lighting

Brand	OSRAM
SKU	58850
Product name	6.6A 64322 30W EXLDL
Base	GY9.5 2-Pin
Bulb Type	Halogen Bulbs
Wattage (W)	30W
Luminous Flux (LM)	400
Color Rendering Index (CRI)	100
Color Temperature	2950K

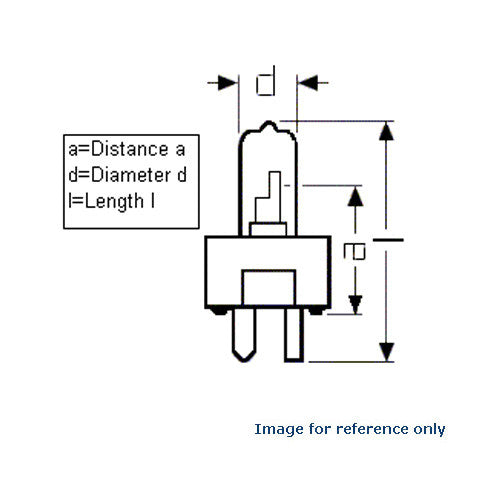

Diameter	0.453 in (13.5mm)
Maximum Overall Length	1.75in (44.5mm)
Filament	C-8
Lamp Finish	Clear
Rated Life (Hours)	1500
Shape	T3.5
Burning position	s90

Manual:

OSRAM 58850 6.6A/30T3.5/64322/EXL/DL
Airfield Lamps Specs
