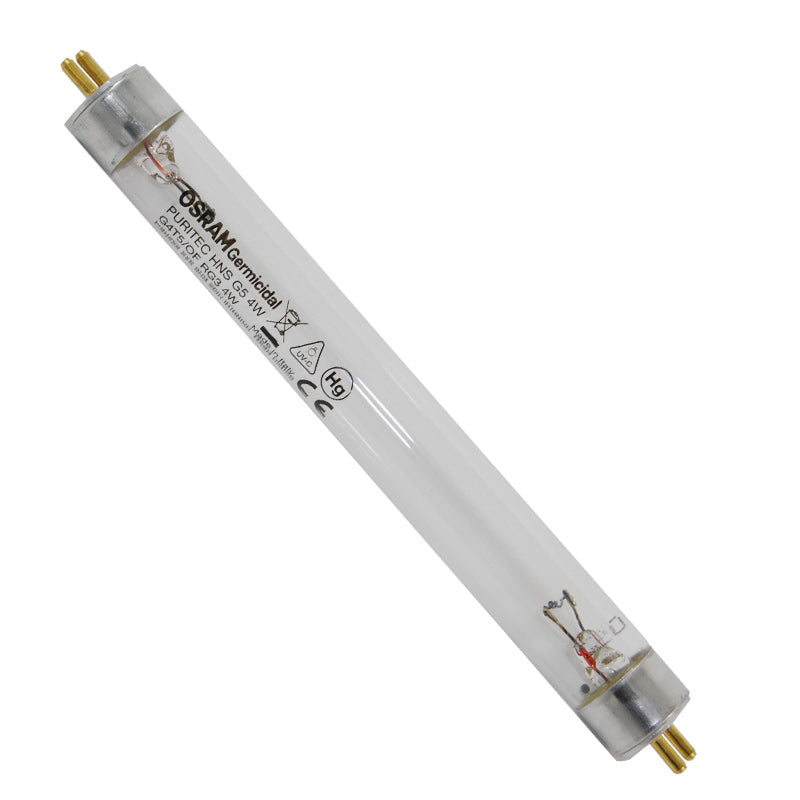

OSRAM 23397 G4T5/OF Puritec HNS 4W G5 RG3 6 inch Germicidal Lamp

The OSRAM 23397 G4T5/OF PURITEC HNS germicidal lamps provide highly effective UV-C irradiance at 254nm, which provides the needed effect for purification, without the use of toxic chemicals. These lamps are ideal for both air and water purification systems.

OSRAM 23397 G4T5/OF PURITEC HNS lamps are reliable and efficient sources with long service life in excess of 8,000 hours. In addition, the special outer glass tube absorbs the lower wavelengths, suppressing the formation of ozone and ensuring environmentally friendly sterilization.

Key Features and Benefits:

• Effective and environment-friendly disinfection without chemicals
• High UV-C radiance at 254 nm
• Low mercury content
• Long lifetime due to special coating
• Ozone-free

Areas of application:

• Air
• Water Purification
• Surface Sterilization

Manufacturer	OSRAM
Part Number	23397
UPC	046135233975
EAN	4008321378316
Abbreviation Name	G4T5/OF
Base	Miniature Bipin
Bulb	T5
Family Brand Name	Germicidal

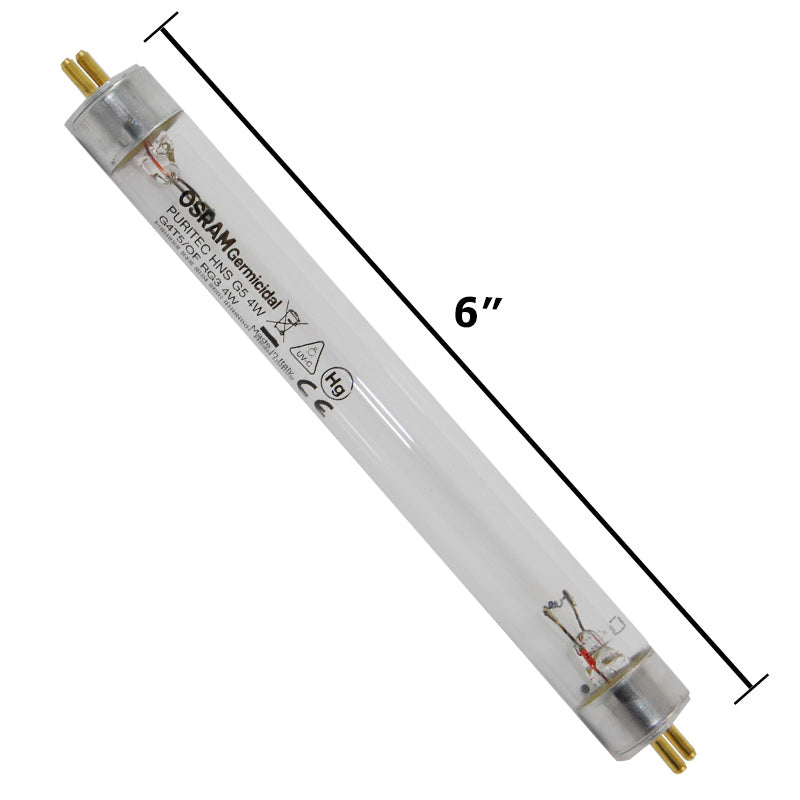

Maximum Overall Length (MOL)	5.90 in (150 mm)
Diameter	0.62 in (16mm)
Nominal Wattage (W)	4
Current (A)	0.17 A
Average Rated Life	8000 h
Application	Air and water purification, surface disinfection

Cross Reference: - American Ultraviolet, Inc. GML180
- Aquanetics Systems ALA-4
- Aquanetics Systems Aquanetics 4
- Aquanetics Systems Q4IL
- Aquanetics Systems Q4SPT
- AquaStar Portable Water Purifier
- Atlantic Ultraviolet Corporation 4 Watt Strip Fixture
- Atlantic Ultraviolet Corporation NO4 Models
- Biolux 4 Watt Strip Fixture
- Biolux NO4 Models
- Cole-Parmer Instrument Co. 34-0003-01
- Cole-Parmer Instrument Co. UX-09815-12
- Custom SeaLife PUVLB504
- EcoQuest Manufacturing 70059
- EcoQuest Manufacturing Fresh Air UV4
- EcoQuest Manufacturing G4T5UV
- EcoQuest Manufacturing US70059
- EcoQuest Manufacturing UV4
- EdenPure G-7
- EdenPure WGEP-1000
- EdenPure ZW4S15W-Z135
- EiKO Global, LLC G4T5
- General Electric 5872
- General Electric G4T5
- Hawaiian Marine AN-4S
- Hawaiian Marine AN-4SA
- Light Sources, Inc. LTC4T5
- LightTech Lamp Technology, Ltd. LTC4T5
- Orbitec 007859
- Osram Sylvania Ltd. 23397
- Osram Sylvania Ltd. G4T5
- Osram Sylvania Ltd. G4T5/OF
- Osram Sylvania Ltd. HNS 4W G5
- Philips Lighting 363713
- Philips Lighting TUV 4T5
- Purely UV Products PUVLB504
- Sankyo Denki G4T5
- Spectronics Corporation BLE-2537/S
- Spectronics Corporation PE-140T
- Spectronics Corporation PE-240T
- Spectronics Corporation Q-22NF
- Ushio 3000013
- Ushio G4T5

Manual:

Laboratory Lamps
Osram Germicidal Bulbs
Technical Data
Product Info
G4T5/OF
PURITEC® HNS® UV-C lamps
