Osram Puritec NHS 7W 46V T12.5 G23 Clear UV Germicidal Light Bulb

Manufacturer: Osram Sylvania SKU: 20390

Osram Sylvania

$669 $10.99

4 in stock

Description

Osram Puritec NHS 7W GC7DS G23 Clear Germicidal Light Bulb

The Osram Puritec NHS 20390 germicidal lamps are low-pressure lamps that emit mercury line radiation mainly in the short-wave ultraviolet range.
They are the highly promising eco-friendly alternatives to chemical purification processes.
They do not use any chemicals and are environmentally friendly. They are available in different sizes and outputs to suit different requirements.

They are transparent for the radiation that kills micro-organisms but do not let ozone-generating radiation through. HNS lamps are manufactured as undoped lamps and as amalgam-doped lamps.

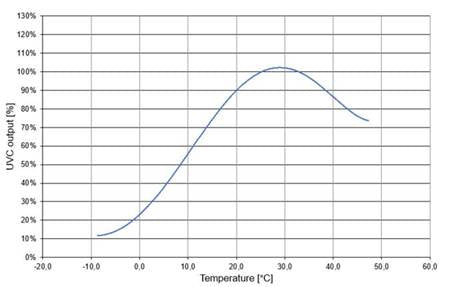

The undoped lamps achieve their optimum wall temperature of 40 °C at an ambient temperature of around 25 °C.
The amalgam lamps, on the other hand, typically reach temperatures around 100 °C and are less sensitive to ambient temperature.

Main applications
- Air purification
- Water purification and cleansing
- Surface disinfection
- Odor elimination
- Erasing of Eproms

Cross Reference:
- Osram 20390
- Osram HNS S 7W G23
- Osram Abbreviation Code GCF7DS/G23/SE/OF
- Light Tech Light Sources LTC7W/G23
- Philips TV PL-S 7W 2pin
- Sankyo Denki GPX7

Specs

Abbreviation Name GCF7DS/G23/SE/OF
Base G23
Bulb Type Fluorescent Bulbs
Rated Life (Hours) 8000
Shape Single Tube 2-PIN
Voltage (V) 46V
Wattage (W) 7W

Video

Additional Info

Manual:

Osram 20390 GCF7DS/G23/SE/OF
