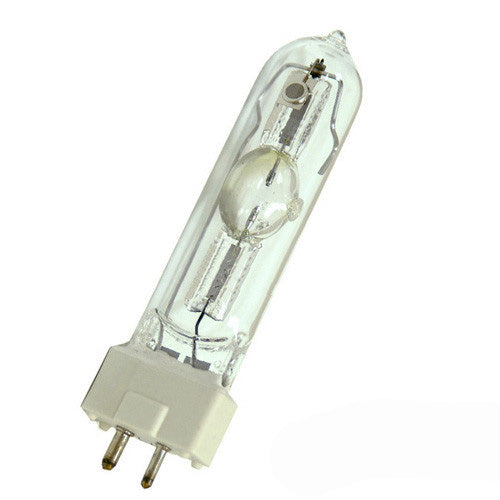

OSRAM HSD 250w /80 4ARXS GY9.5 metal halide light bulb

OSRAM HSD 250w /80 4ARXS GY9.5 metal halide light bulb

SKU: 54243

$15999 ~~$283.99~~ USD

Description

OSRAM HSD 250W/80 short arc metal halide lamps are ready to meet the demands of any stage, architectural or event lighting application. HSD lamps are ideal for large scale architectural lighting applications where both maximum output and long service life are important. "Metail Halide HSD lamps" are single-ended, with an outer jacket for ease of handling.

Product features and benefits
- Proven, reliable technology for entertainment and architectural fixtures
- Designed with an outer quartz jacket providing compact and rugged construction
- High luminous efficacy of up to 90 lumens/watt
- 4ARXS ("For Architainment eXtreme Seal") are designed to withstand temperatures up to 450°C at the pinch seal and provide longer lamp life of up to 3,000 hrs (when operated on an ECG)

Areas of application
- Architecture & Architainment
- Concert Lighting
- Club & Disco

Cross Reference:
- PHILIPS 287037, 277210 MSD 250/2
- GE CSD 250/2
- SLI BA 250 /2 SE D
- ZB-MSD 250/2
- OSRAM 54243 HSD 250W/80 4ARXS, HSD 250/80
- MSD250/2 30H UNP/128
- 228066, 277210, 27721-0, 28703-7, 245159, 24515-9, 291526, 29152-6, 8711500204400, 8711500204417, 8718696415887, 871829122806600, 928099005115, 928099005103,
Current EAN: 4008321625786. Previous EAN: 4050300808635. Alternate EAN 4008321417237. Previous UPC 046135542435

Specs

Abbreviation Name	HSD 25080 4ARXS

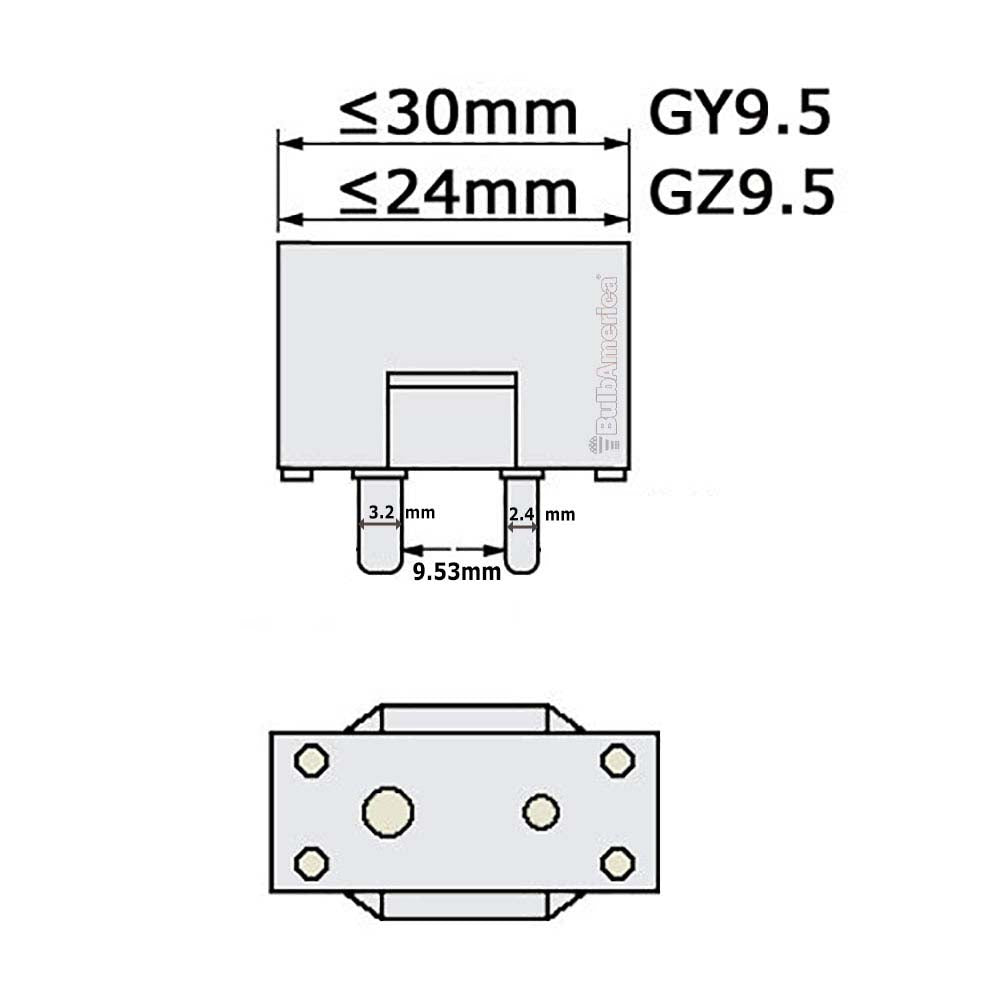

Base	GY9.5 2-Pin Prefocus
Bulb Type	High Intensity Discharge Bulbs (HID)
Color Rendering Index (CRI)	85
Color Temperature (K)	8000K
Diameter (in)	0.906
Lamp Finish	Clear
Luminous Flux (LM)	17000
Maximum Overall Length (in)	4.25
Rated Life (Hours)	3000
Wattage (W)	250W
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Video

Additional Info

Manual:

OSRAM 54243 HSD 250W/80 4ARXS

Equipment:

This lamp is used in the following equipment:
AC Lighting Tourspot 250
AC Lighting TourWash 250
American DJ Accu Color 250
American DJ Accu Roller 250
American DJ Accu Scan 250
American DJ Accu Spot 250 II
American DJ Accu Spot 300
American DJ Accu Spot Pro
American DJ Accu Wash 250
American DJ Fantasy 250
American DJ Fantasy Scan 250
American DJ Illusion 250
American DJ Tempest 250 MSD
Chauvet Intimidator Spot 250
Coemar MiniCyc
Coemar ProSpot 250 Evo
Coemar ProSpot 250 LX
Coemar ProWash 250 LX
Elation Active Scan 250
Elation Active Wave 250
Elation CMY Zoom 250
Elation Design Spot 250
Elation Design Spot 250 WH
Elation Focus Spot 250R
Elation Power Spot 250
Elation Power Wash 250
Elation Power Wash 250B
Elation Vision Color 250
Elation Vision Scan 250
Elation Waterfall 250 Pro
Elektralite Elektric Eye MM200
Elektralite Elektric Eye My250
High End Color Pro FX
High End Color Pro HX
High End Color Pro HXi
High End Studio Spot 250
High End Technobeam
High End Trackspot 2
Martin CX-10 Extreme
Martin CX-10 Extreme Color Changer
Martin MAC 250
Martin MAC 250 Beam
Martin MAC 250 Entour
Martin MAC 250 Krypton
Martin MAC 250 Wash
Martin MAC 250+
Martin MAC 300
Martin MX-10 Extreme
Martin MX-10 Extreme Scanner
Martin RoboScan Pro 518
Martin Wizard 250
Martin Wizard Extreme
Programmi & Sistemmi Event
Programmi & Sistemmi Firewall DMX
Programmi & Sistemmi Omniscan 250-Y
Programmi & Sistemmi Protos 250 Pro
Programmi & Sistemmi Radius
Programmi & Sistemmi Raving
Programmi & Sistemmi Water Wall DMX

‎
