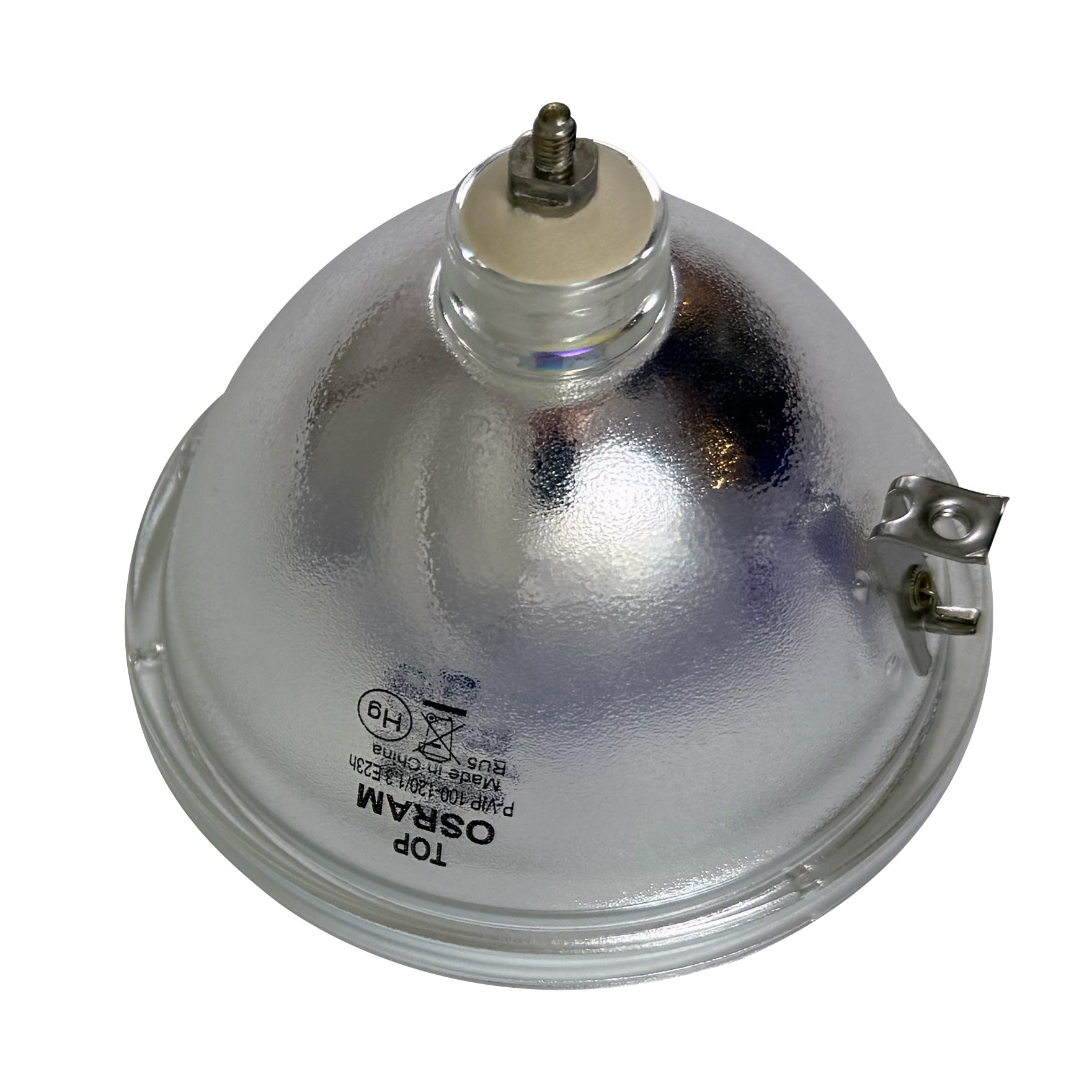

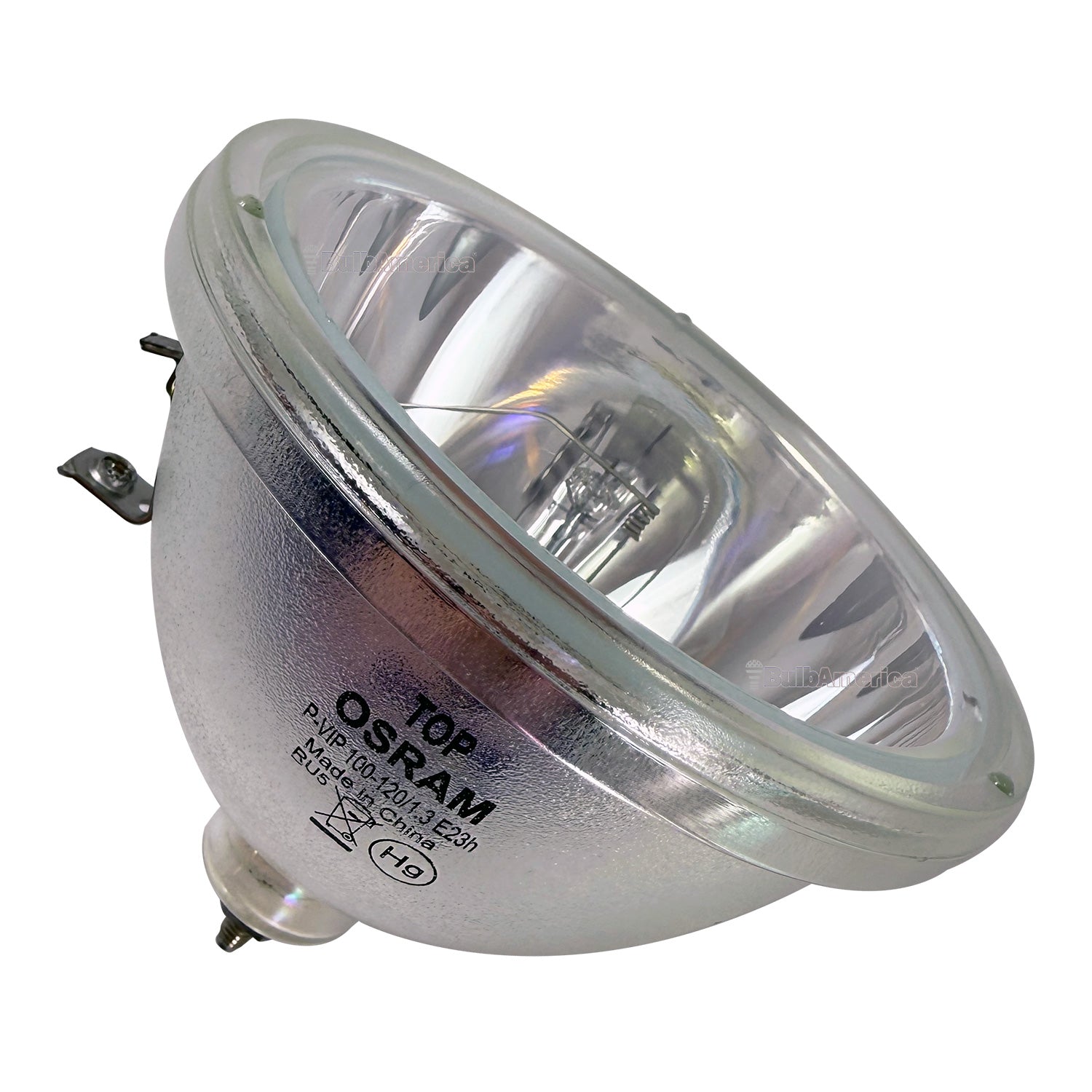

Osram P-VIP 100-120/1.3 E23H Original Bare Lamp Replacement

Osram P-VIP 100-120/1.3 E23H Original Bare Lamp Replacement

OSRAM SKU: 69383
$7999 $119.99 USD
3 in stock



P-VIP 100-120/1.3 E23H Original Bare Lamp Replacement. This lamp is intended to be used with your existing housing. Only purchase this item if you are comfortable installing the lamp yourself.

- Projector Lamp Model: P-VIP 100-120/1.3 E23H
- Condition: New
- Lamp Manufacturer: Osram
- Lamp Model: P-VIP 100-120/1.3 E23H
- Wattage: 100-120 Watt
- Glass: Reflector E23 Elliptic, Elliptical, Elliptically
- Arc Gap: 1.3mm
- Ignition: 15kV-18kV- 5200 Lumens at 120W observed in working distance through 6mm aperture
- Average Life 6000 Hours at 120W when operated on Osram lamp driver PT VIP 2AC/380 O1- Category MD TV
- Environmental Complies RoHS
- Electrodes: Solid tungsten
- Max Lamp Current: 2.0 Amps
- Luminous Flux: 6000 lm at 100W
- 7000 lm at 120W- Max Lamp Operating Voltage: 65 Volts
- Colour Temperature: 7600K
- CRI: Ra 57- Bulb Finish: Hard Dichroic Cold Mirror
- Chromaticity Co-ordinates: CCx : 0.298 CCy : 0.311
- Bulb Type: PAR-23 Borosilicate with front glass
- Reflector Size: Round 3.74in (95mm)

Alternate Part Numbers: P-VIP 100-120/1.3 E23ha, E23hl, VIP-120-E23h, OSRAM P-VIP 100-120/1.3 E23, 260962, 69383, Optima, Model HLN5065WX BulbBP9600224C (P) Samsung, 100/120W Toshiba, Sylvania, and Philips Lamps, Phillips UHP, E23ha, 915P020010, PL8820-825, Philips 100W E23 UHP, 90.2(A), 72783163, 72782309, ASM 75003665, Standard Type A 260962, Standard Type B 265103, RL1280,, SSAA47-00003A, AA47-10001B, VIP-120-E23hL, 101221178, BP96-0082 3A(O), BP96-01394A, 101221178, HS100AR13-5, 69559, 69074

- Osram P-VIP 100-120/1.3 E23H Projector Bare Bulb Replacement
- Original Osram OEM Bare Bulb Replacement without cage assembly
- 90-day warranty when purchased from BulbAmerica
- 100% identical with the original bulb used in the projector
- Brand New Osram projector bare bulb without Cage / Housing


Lamp Part # VIP-01/05
Rated Life (Hours) 2000-3000
Wattage (W) 100W
Warranty 90 Days Manufacturers Warranty. Warranty does not cover: shipping costs, improper installation including damages incurred while attempting installation, any installation or labor costs, lamps damaged by TV/projector malfunction, damage due to abuse, light
UPC 743062446446
