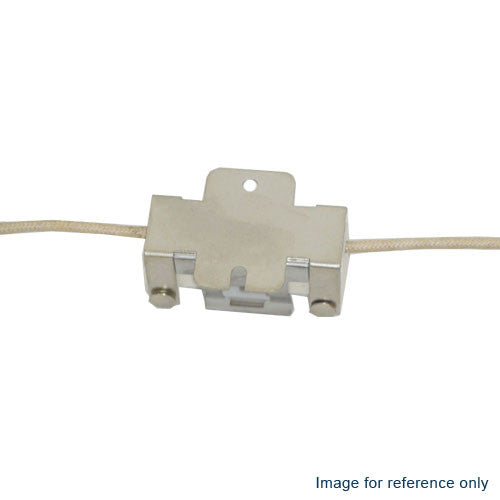

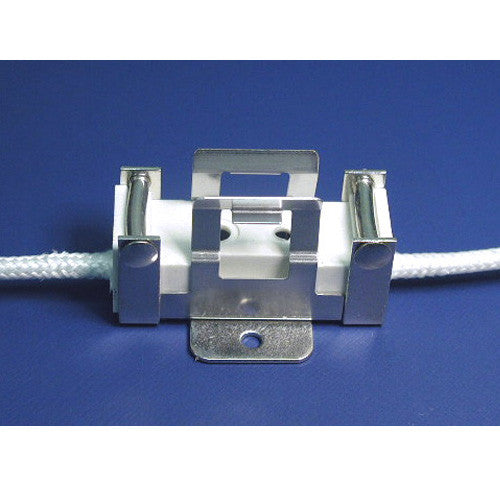

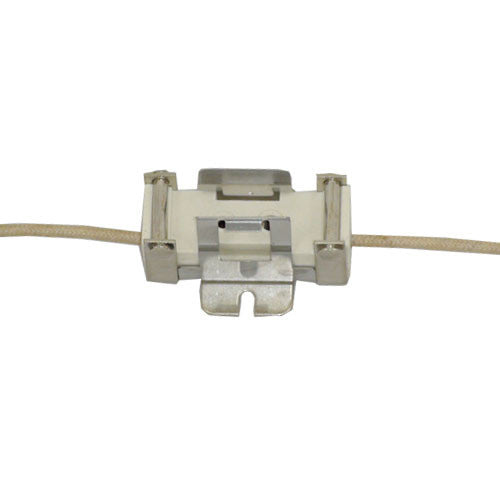

OSRAM TP-23H GY9.5, GZ9.5 lamp holder

This lamp holders is for GY9.5

GZ9.5 base for bulbs like:
- 220T4Q/2PPF
- FMR
- 235T4Q/2PPF
- FRG
- DZE / FDS
- 6.6A/30T3.5/ 64322 / EXL / DL
- BHC / DYS / DYV
- 6.6A/45T3.5/64320/ EXM
- BHC-5 / DYS-5 / DYV-5
- EKB
- HMI 400 W/SE
- Body Material: CERAMIC
- Contact Material: NICKLE ALLOY
- CSA File No.: LR20904

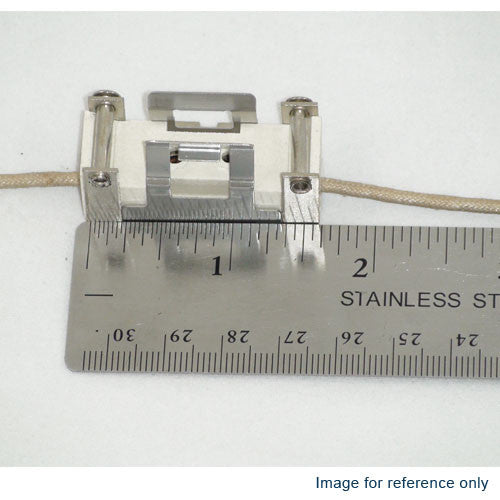

- Socket Height: 1.06 in (29.6mm)
- Socket Length: 1.69 in (42.9mm)
- Socket Width: 1.19 in, (30.20mm)

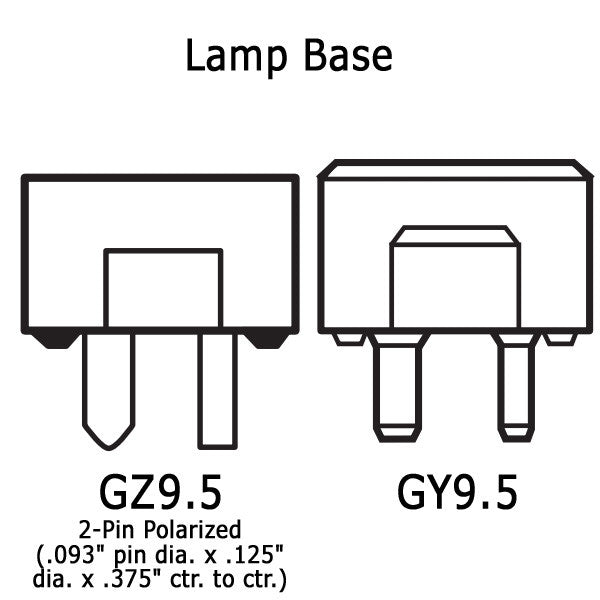

- Lamp Base Reference: GY9.5
- Lead Length: 12 in (305mm)
- Wire Gauge (AWG): 16
- Maximum Operating Temperature: 200ºC
- Maximum Voltage (V): 250
- Maximum Wattage (W): 1200
- Wire Type: UL5359
- Underwriters Laboratories File No.: E31557

Manufacturer	OSRAM
Part Number	69020
UPC	046135697241
EAN	4052899513358
Application	Socket
Base	GY9.5 2-Pin Prefocus, GZ9.5 2-Pin Prefocus
Color	Natural
Contact Material	Nickel Alloy
Type	TP-23H
Voltage (V)	250
Wire Guage/Type	12 in AWG16 MGT
Length (in)	1.69
Width (in)	1.19
Height (in)	1.06

Manual:

OSRAM 69020 TP23H 12IN/16GA/UL5359
