Osram TP-30 GY5.3 lamp holder ceramic socket

OSRAM SKU: 69757
$1599 $25.99 USD
240 in stock




Description

This lamp holders is for GY5.3 base for bulbs like: ELH, ENX-5, FLE, ENG, ENH-5, FXL, ENH, ENX-7, FXL-HL, ENH, ETJ, ENX, EVW

Specs:
- Body Material: CERAMIC
- Contact Material: SILVER PLATED BRASS
- CSA File No.: LR20904

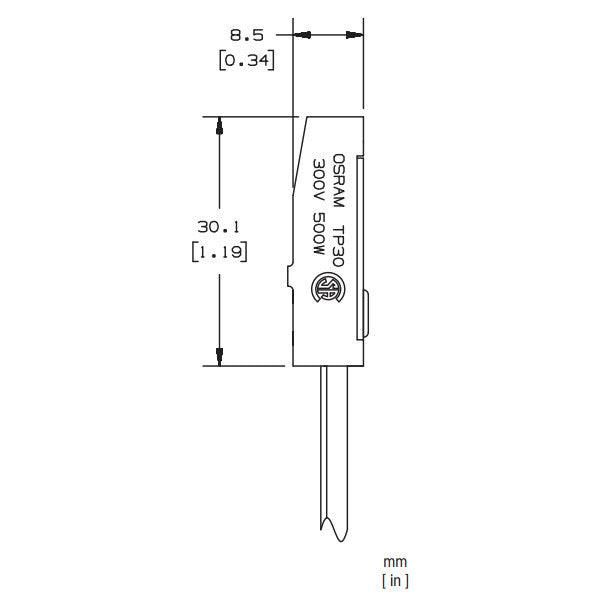

- Socket Height: 0.35 in (8.9mm)

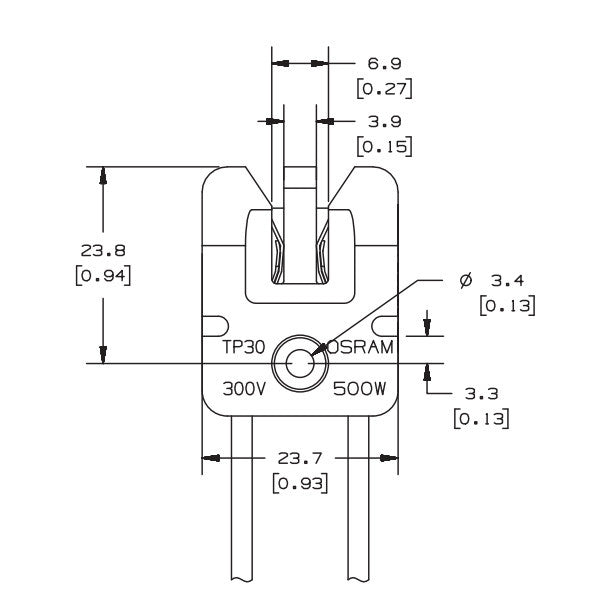

- Socket Length: 1.19 in (30.2mm)
- Socket Width: 0.93 in (23.6mm)

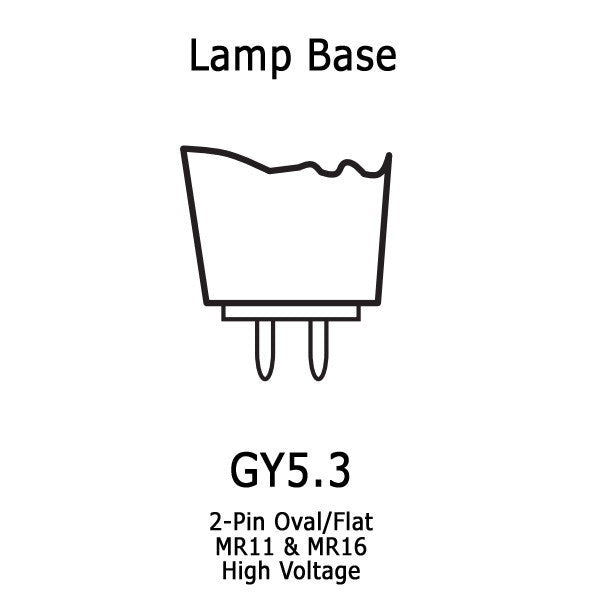

- Lamp Base Reference GY5.3
- Lead Strip Length: 12 in (305mm)
- Wire Gauge: 18AWG
- Maximum Operating Temperature: 200C
- Maximum Voltage: 300V
- Maximum Wattage: 500W
- Wire Color: WHITE
- Wire Type: ULSFF1
- Underwriters Laboratories File No.: E31557

Specs

Application Socket
Base GY5.3 2-Pin
Color White
Contact Material Silver Plated Brass
Operation Temperature (F) 392
Type TP30
Voltage (V) 300
Wire Guage/Type 12 inch AWG18 SFF1
Length (in) 1.19
Width (in) 0.93
Height (in) 0.35
