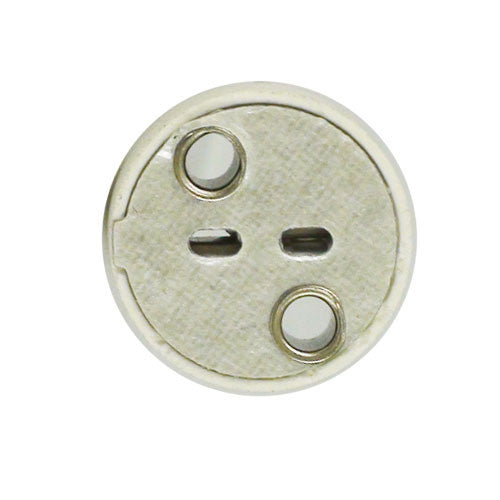

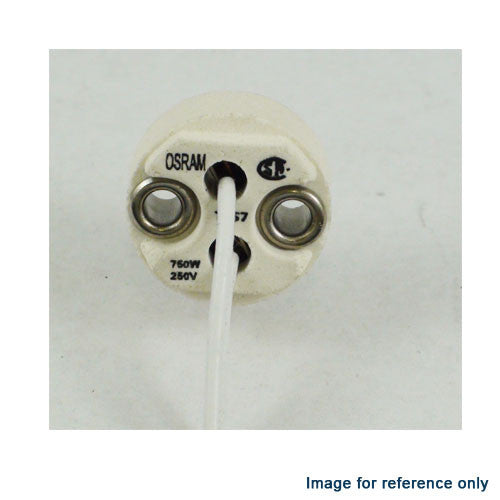

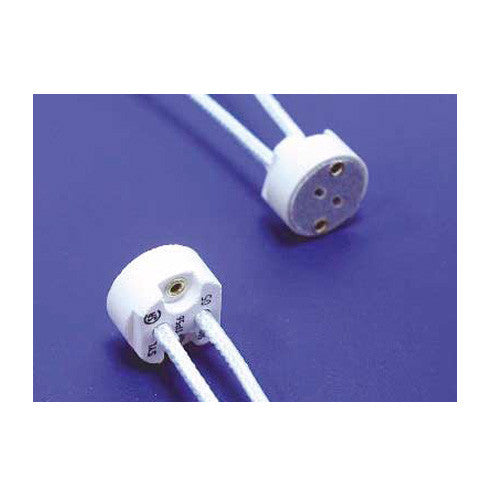

OSRAM TP-57 GU/GX/GZ 4, G/GX/GY/GZ 6.35 lamp holder

OSRAM SKU: 69735
$1599 $29.99 USD
153 in stock




1

Description

This lamp holder is for GU4, GX4, GZ4, G6.35, GX6.35, GY6.35, GZ6.35 base for bulbs like: - 64223- 64665 HLX- EVD 64663 HLX- EFP/X 64629 HLX- 64261- BRJ/EVB - 64633 HLX- FCR 64625 HLX- EFR 64634 HLX- 64275- BRL 64610 HLX- FCS 64640 HLX- EFR-5/X 64620- 64647- EHJ 64655 HLX- FDV 64642 HLX- 64515- 64650- EHJ HLX- FNT 64656 HLX- 64573- 62138 HLX- EHJ 64655 HLX/7X- 64637- 64575- 64258 HLX- ESA/FHD 64225- 64635 HLX- BVM 64540- 64265 HLX- ESB 64250 HLX- EFM 64607- EGW 64535- 64638 HLX- EVA 64623 HLX- EFN 64615 HLX- FNS 64512- 64664 HLX- EVC 64657 HLX- EFP 64627 HLX- 64501- 64513- 64514- 64516- 64602- 64611 HLX- 6.6A/45T3.5Q/64321- 64291 XIR 40W- 64292 XIR 150W- 64668 XIR 80W- 6.6A/200T4Q/64386 - 69736 - 69733 - 69731 - 69732 - 69734 - Strip Length (in): 0.12- Qualifications: UL Recognized-E31557, CSA Certified - LR20904- Wire Leads: Any UL recognized and CSA certified wire:AWG18, 16 or 14, 300 V min, 392 F min

Specs

Application Lamp Holder
Base GU4 2-Pin, GX4 2-Pin, GZ4 Miniature 2-Pin, G6.35 2-Pin, GX6.35 2-Pin, GY6.35 2-Pin, GZ6.35 2-Pin
Color White
Contact Material Nickel(with high temperature back-up spring)
Operation Temperature (F) 482
Type TP57
Voltage (V) 250
Wire Guage/Type AWG18 UL1726
Length (in) 14.00
