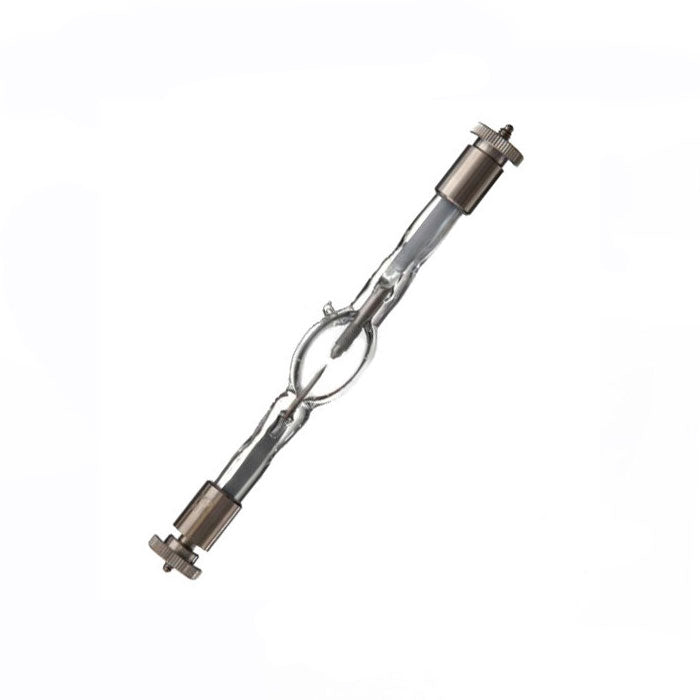

OSRAM XBO 4000w HS XL OFR Metal Halide Xenon Short Arc Bulb

OSRAM XBO 4000w HS XL OFR Metal Halide Xenon Short Arc Bulb

OSRAM SKU: 69474
$1,67499 $2,108.99 USD
17 in stock



InOSRAM XBOlamps, a luminous arc is struck between two electrodes in an atmosphere of purexenon gas. Because the gap between the electrodes is only a few millimeters even in high wattage versions, XBO lamps come very close to being an ideal point source of light. XBO lamps offer extremely high light output and a color temperature of approximately 6000K, similar to that of daylight. They provide a continuous spectrum in the visible range and have a near perfect color rendering index. The exceptional lamp-to-lamp color consistency they exhibit when new is maintained over the entire life of the lamp. "XBO" lamps rapidly achieve full lumen output and have hot restrike capability.


Manufacturer OSRAM
Part Number 69474
UPC 046135694745
EAN 4008321412812
Abbreviation XBO 4000 W/HS XL OFR
Application Cinema Film Projection
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 90000
Base Anode SFaX30-9.5
Base Cathode SFa30-7.9
Warranty Hours 1500
Bulb KO156
Bulb Type High Intensity Discharge Bulbs (HID)
Class C (gas)
Cooling Required
Current (A) 135
Current Control Range (A) 80-150
Diameter (in) 2.756
Electrode Gap (cold) (mm) 7
Hot Restart Yes
Lamp Finish Clear
Light Center Length - LCL (in) 6.73
Luminous Area w x h (mm) 1.9 x 6.0
Luminous Intensity (cd) 17000
Maximum Base Temperature C 230
Maximum Overall Length (in) 16.14
Shape Double-Ended
Voltage (V) 28
Wattage (W) 4000W
Operating Position s20 p20
Reflector Coating 70
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
