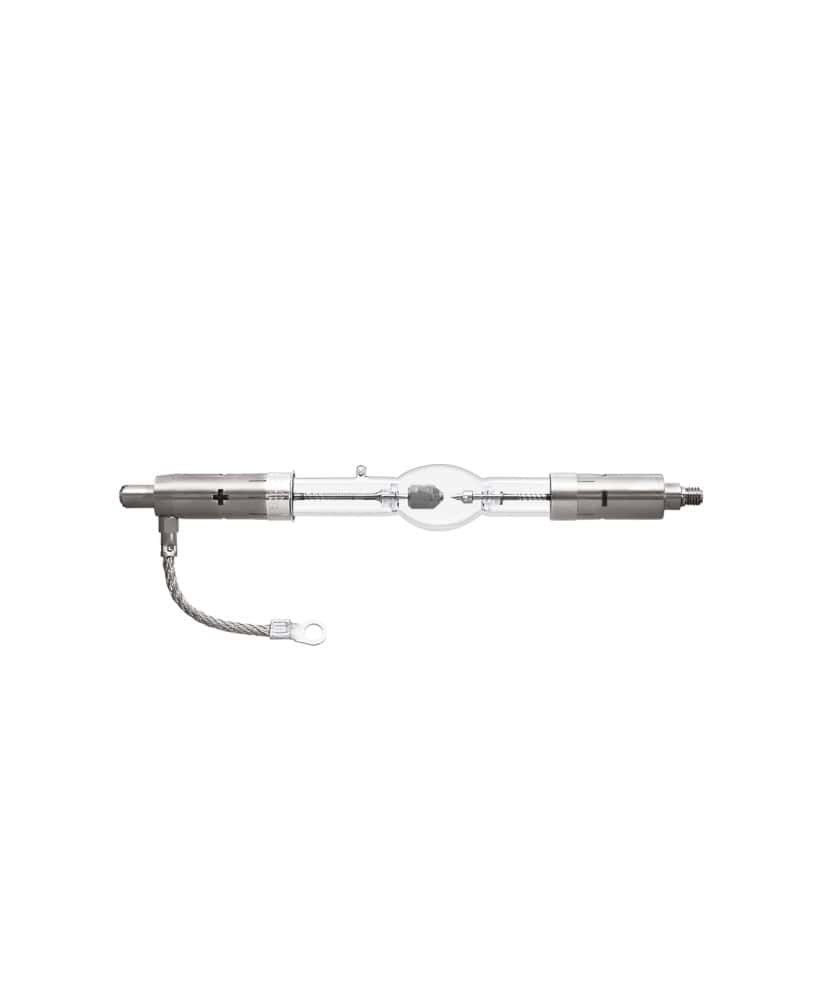

OSRAM XBO 1000W/HSC OFR 1000W Cinema Film Projection Lamp

OSRAM XBO 1000W/HSC OFR 1000W Cinema Film Projection Lamp

OSRAM SKU: 69264
$63999 $1,105.99 USD
7 in stock




1

Description

OSRAM 69264 1000w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.

The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems. Key Features and Benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering >95
- High arc stability
- DC operation
- Hot restart

Specs

Abbreviation Name XBO1000WHSCOFR
Application Cinema Film Projection
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 60000
Base Special Double Ended
Base Anode SK27/50
Base Cathode SFcX27-8
Warranty Hours 2000
Bulb KO141
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Cooling Required
Current (A) 50
Current Control Range (A) 30-55
Diameter d (in) 1.575
Diameter d (mm) 40
Distance a (mm) 95
Electrode Gap (cold) (mm) 3.8
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 236
Length l2 max. (mm) 222
Light Center Length - LCL (mm) 95
Luminous Area w x h (mm) 1.1 x 2.8
Luminous Flux (lm) 32000
Luminous Intensity (cd) 3000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 236
Nominal Voltage (V) 19
Nominal Wattage (W) 1000
Operating Position s20 p20
Reflector Coating 40
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
