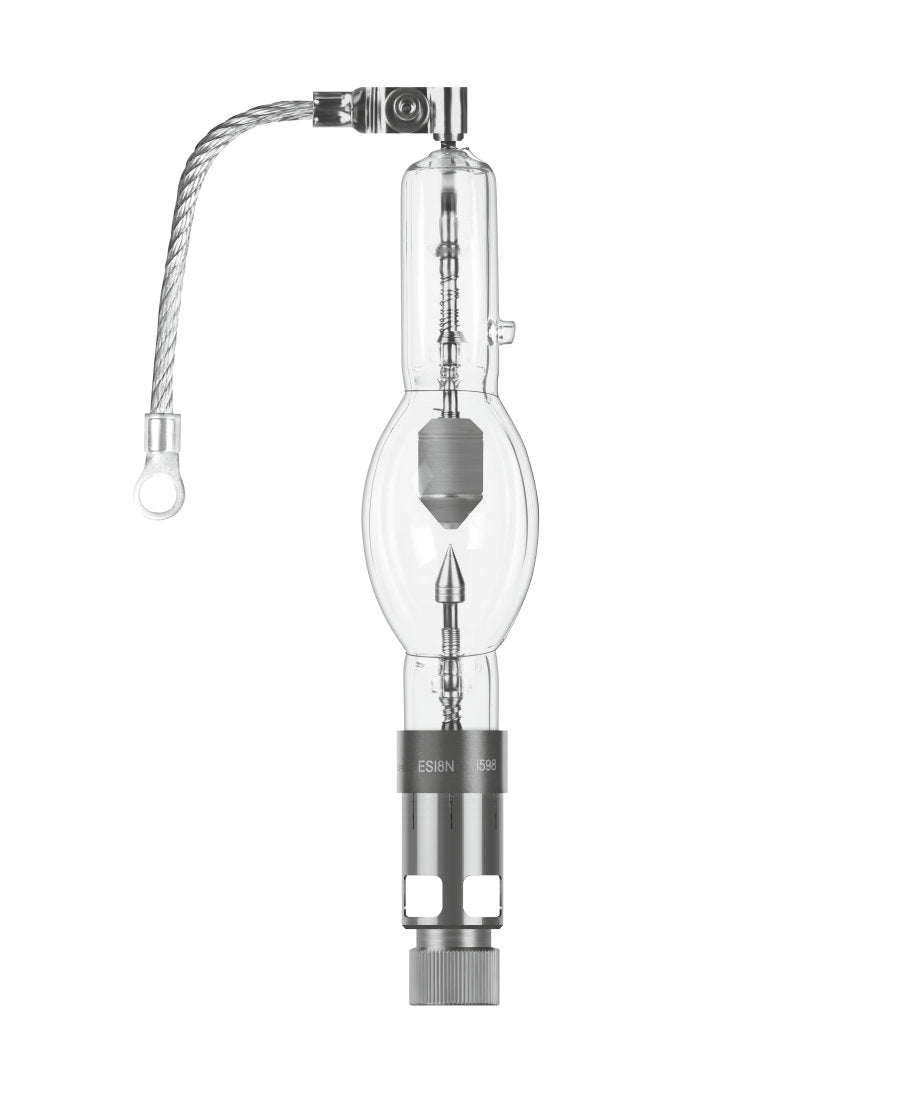

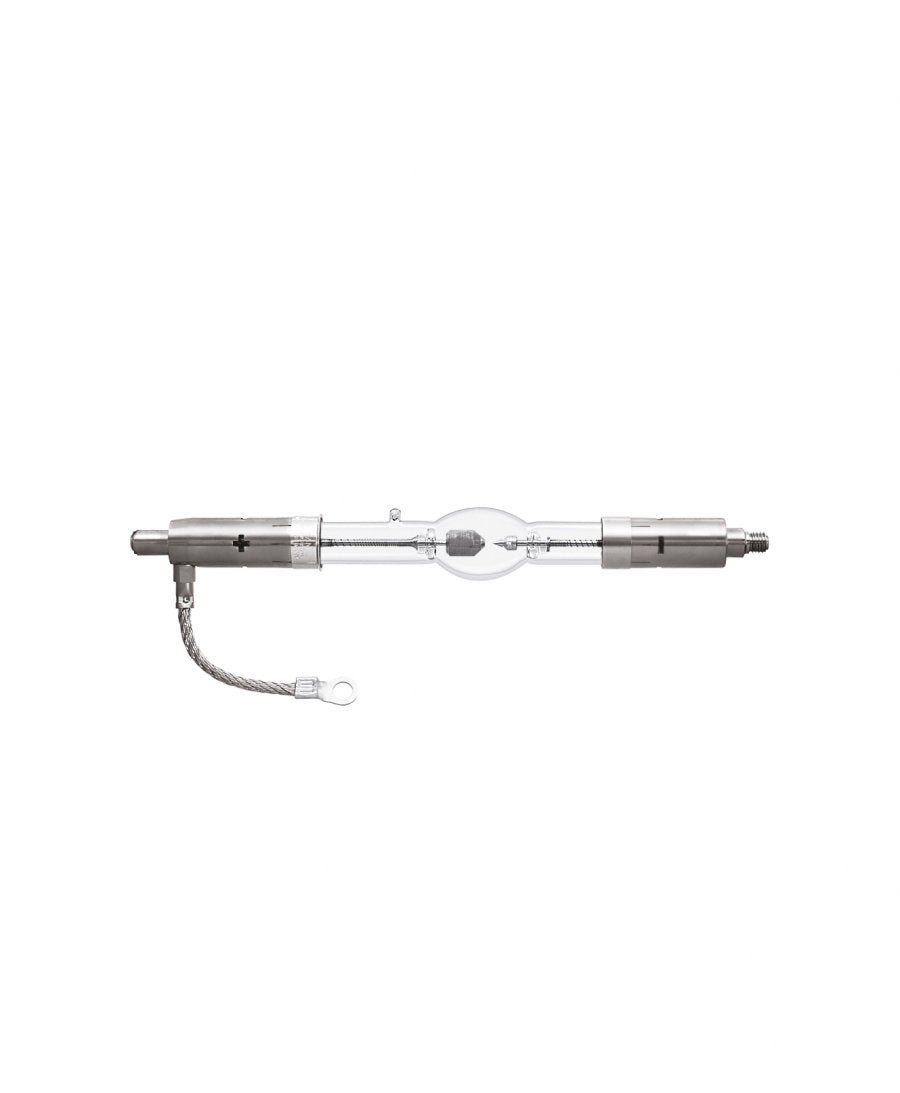

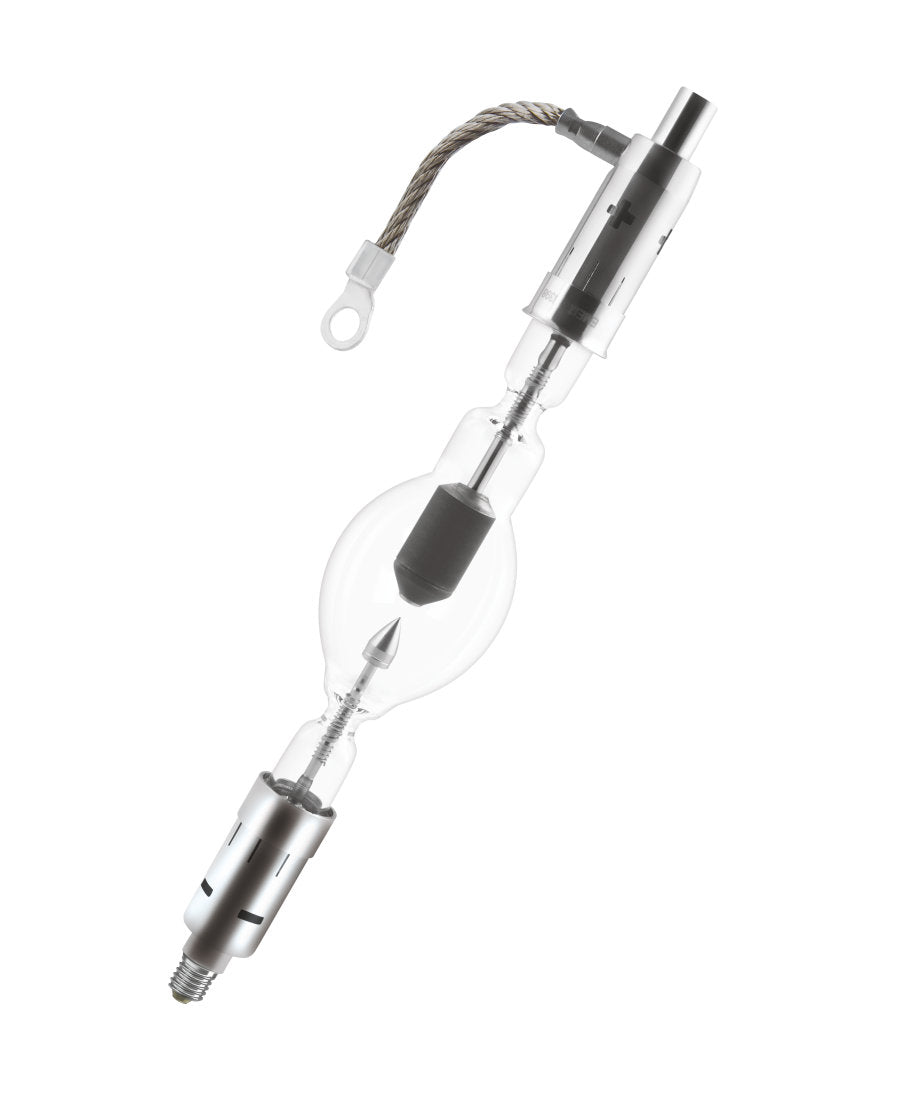

OSRAM XBO 1600W DTS OFR, XBO DHP for Digital Projection Lamp

OSRAM SKU: 68892
$1,15799 $1,367.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 67.0 A
Current control range 50.80 A
Nominal Wattage 1600.00 W
Nominal Voltage 25.0 V
Diameter 46.0 mm
Length 245.0 mm
Length with base excl. base pins/connection 202.00 mm
Light center length (LCL) 100.5 mm
Cable length 121.0 mm
Product weight 350.00 g
Electrode gap cold 3.7 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 3000 h
Service Warranty Lifetime 3500 h
Base anode (standard designation) Cable
Base cathode (standard designation) SFc30-20
Cooling Forced
Burning position Other
EAN 4052899417786
Unit VS
Piece 1
Dimension l x w x h 500mm x 204mm x 204mm
Weight 1280.00g
Volume 20.81dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
