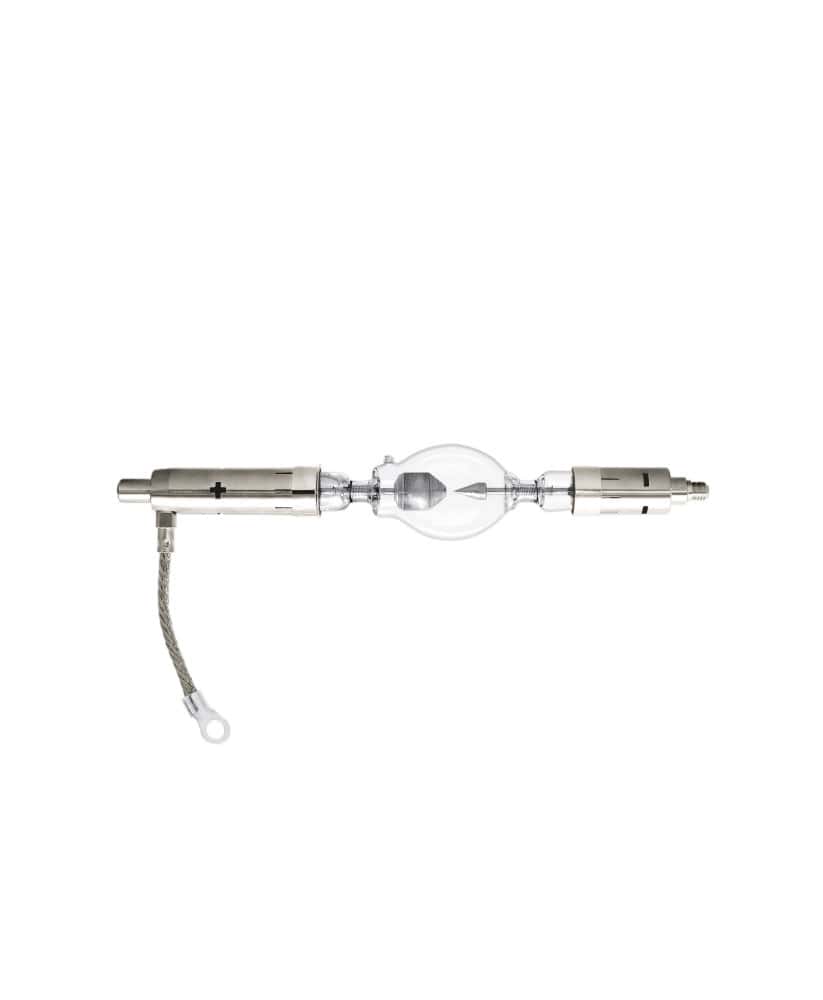

OSRAM XBO 2000W/HS OFR 2000W Cinema Film Projection Lamp

OSRAM XBO 2000W/HS OFR 2000W Cinema Film Projection Lamp

OSRAM SKU: 69270
$68499 $1,189.99 USD
39 in stock



OSRAM 69270 2000w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.

The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems. Key Features and Benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering >95
- High arc stability
- DC operation
- Hot restart


Abbreviation Name XBO2000WHSOFR
Application Cinema Film Projection
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 80000
Base Special Double Ended
Base Anode SFaX27-9.5
Base Cathode SFa27-7.9
Warranty Hours 2400
Bulb KO169
Class C (gas)
Cooling Required
Current (A) 80
Current Control Range (A) 50-85
Diameter d (in) 2.362
Diameter d (mm) 60
Distance a (mm) 145
Electrode Gap (cold) (mm) 5
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 342
Length l2 max. (mm) 302
Light Center Length - LCL (mm) 145
Luminous Area w x h (mm) 1.3 x 4.0
Luminous Intensity (cd) 7500
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 342
Nominal Voltage (V) 24
Nominal Wattage (W) 2000
Operating Position s30 p30
Reflector Coating 60
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
