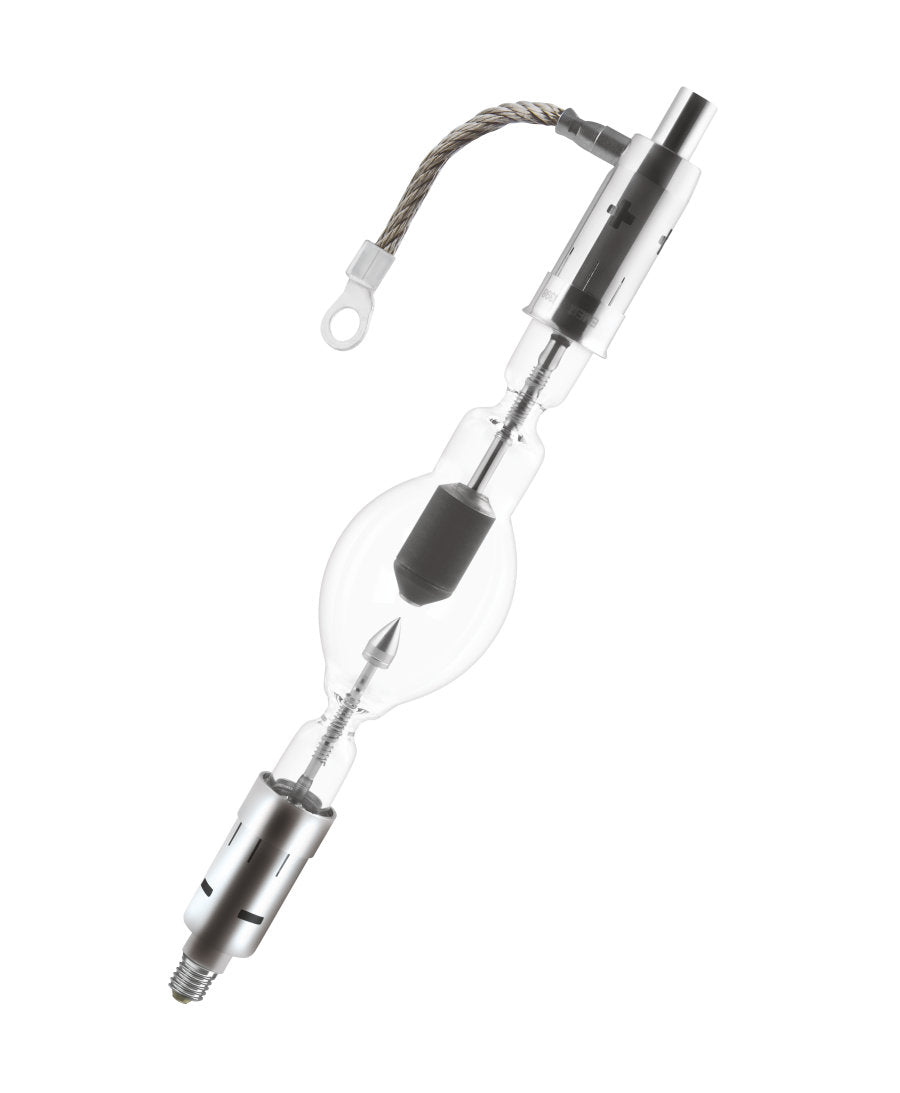

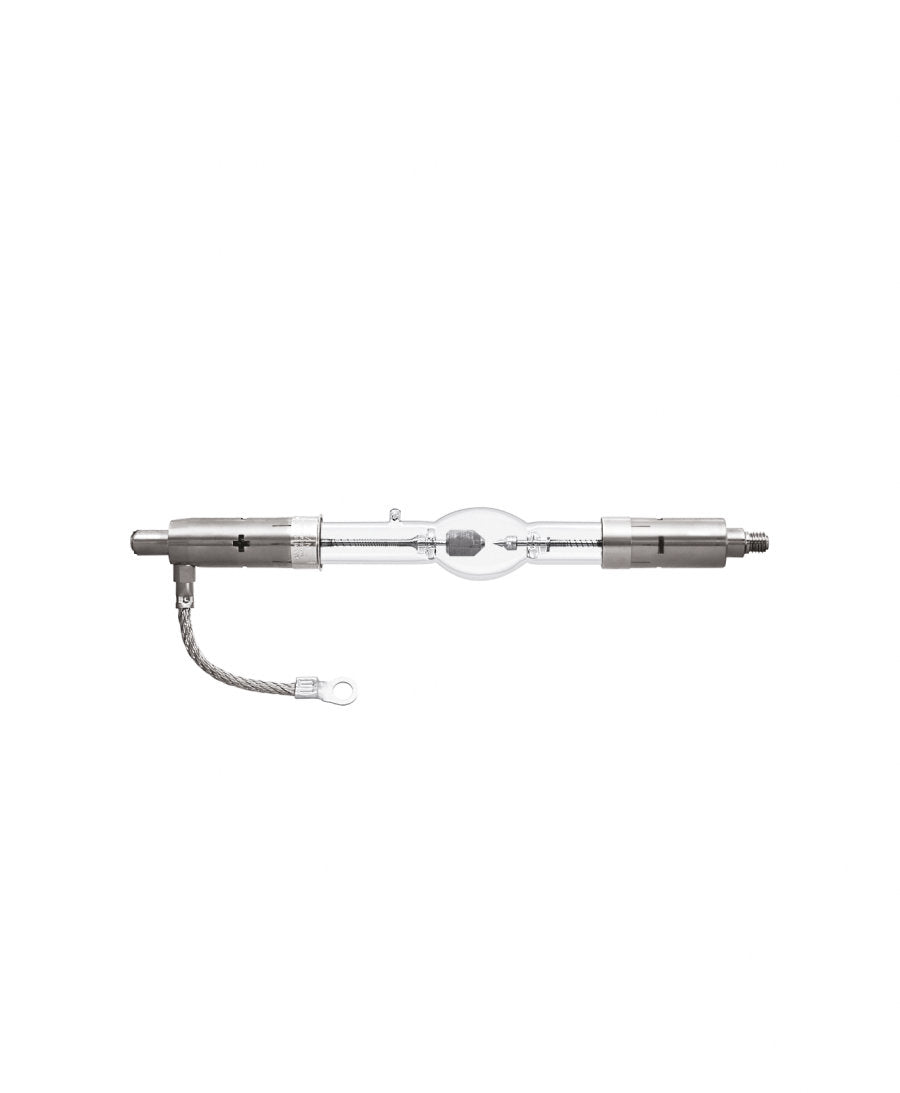

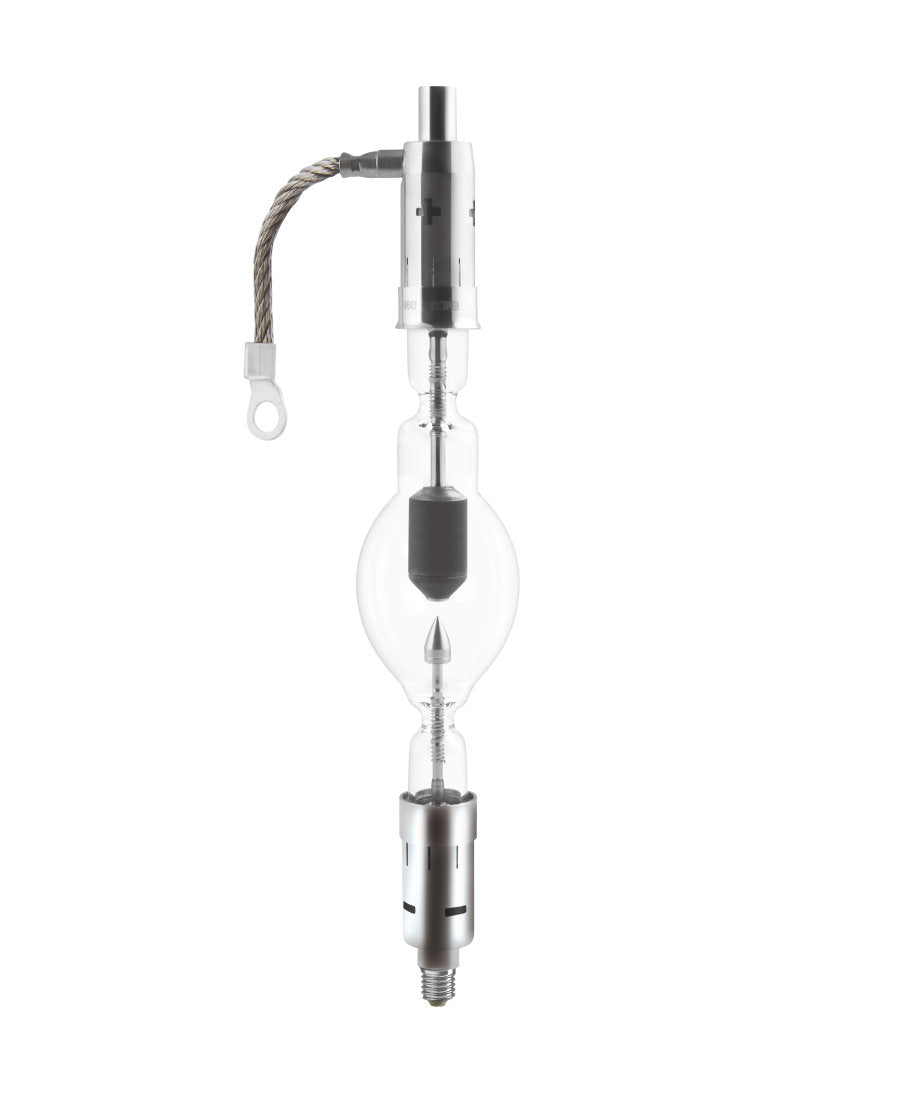

OSRAM XBO 2000W DHP OFR, XBO DHP for Digital Projection Lamp
SKU: 69150
Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates
In observance of Yom Kippur, Monday, September 25th, 2023, there will be NO SHIPPING on this day. We will resume regular shipping the following day. We apologize for any inconvenience.
Description
Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp
Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation
Specs
| Nominal current | 87.0 A |
| Current control range | 64.95 A |
| Nominal Wattage | 2000.00 W |
| Nominal Voltage | 25.0 V |
| Diameter | 55.0 mm |
| Length | 345.0 mm |
| Length with base excl. base pins/connection | 295.00 mm |
| Light center length (LCL) | 123.0 mm |
| Cable/wire length, input side | 130 mm |
| Cable length | 130.0 mm |
| Product weight | 530.00 g |
| Electrode gap cold | 4.5 mm |
| Max. permitted ambient temp. pinch point | 230c |
| Lifespan | 2400 h |
| Service Warranty Lifetime | 3000 h |
| Base anode (standard designation) | SFaX30-14 |
| Base cathode (standard designation) | SFc30-16 |
| Cooling | Forced |
| Burning position | s15/p15 |
| EAN | 4062172030441 |
| Unit | VS |
| Piece | 1 |
| Dimension l x w x h | 500mm x 204mm x 204mm |
| Weight | 1460.00g |
| Volume | 20.81dm3 |
| CA Prop 65 | Yes |
| CA Prop 65 Material | Mercury |
