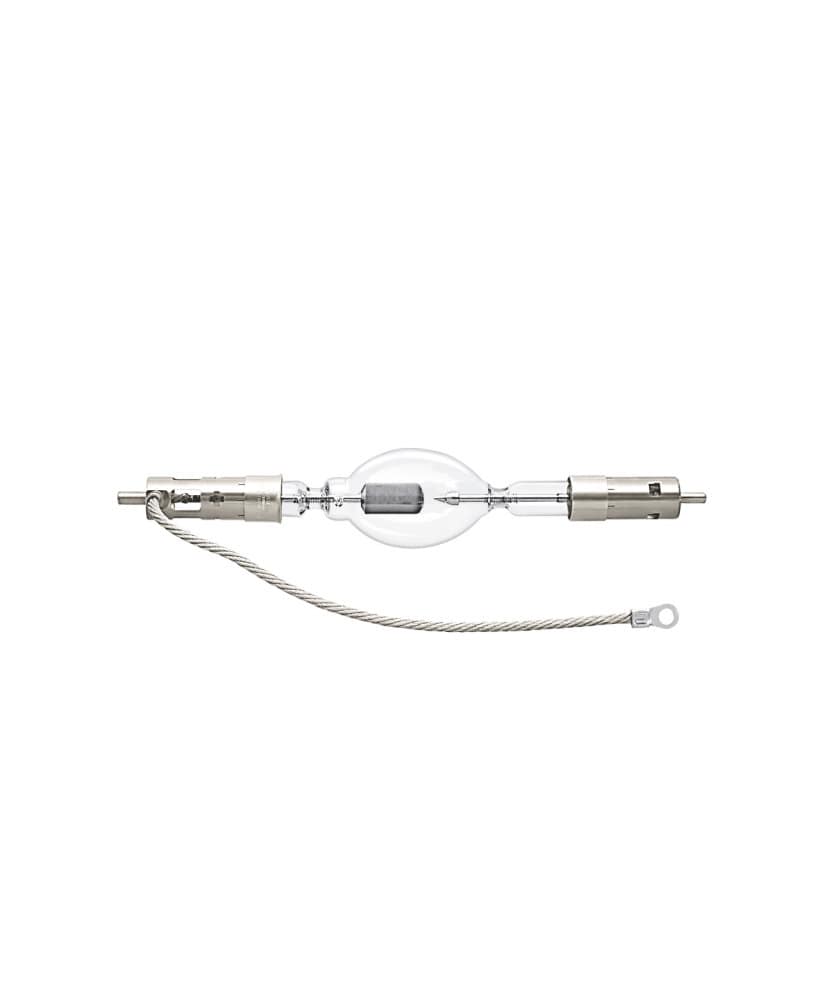

OSRAM XBO 3000W/H XL OFR 3000W Cinema Film Projection Lamp

OSRAM XBO 3000W/H XL OFR 3000W Cinema Film Projection Lamp

OSRAM SKU: 69478
$89499 $1,552.99 USD
14 in stock



OSRAM 69478 3000w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.

The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems.

Key Features and Benefits:
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering >95
- High arc stability
- DC operation
- Hot restart


Abbreviation Name XBO3000WHXLOFR
Application Cinema Film Projection
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 85000
Base Special Double Ended
Base Anode SFaX27-13
Base Cathode SFa27-14
Warranty Hours 2200
Bulb KO158
Class C (gas)
Cooling Required
Current (A) 100
Current Control Range (A) 60-110
Diameter d (in) 2.362
Diameter d (mm) 60
Distance a (mm) 167.5
Electrode Gap (cold) (mm) 6
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 428
Length l2 max. (mm) 382
Light Center Length - LCL (mm) 167.5
Luminous Area w x h (mm) 1.7 x 5.0
Luminous Intensity (cd) 12000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 428
Nominal Voltage (V) 29
Nominal Wattage (W) 3000
Operating Position s30 p30
Reflector Coating 60
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury

Installation Guide
