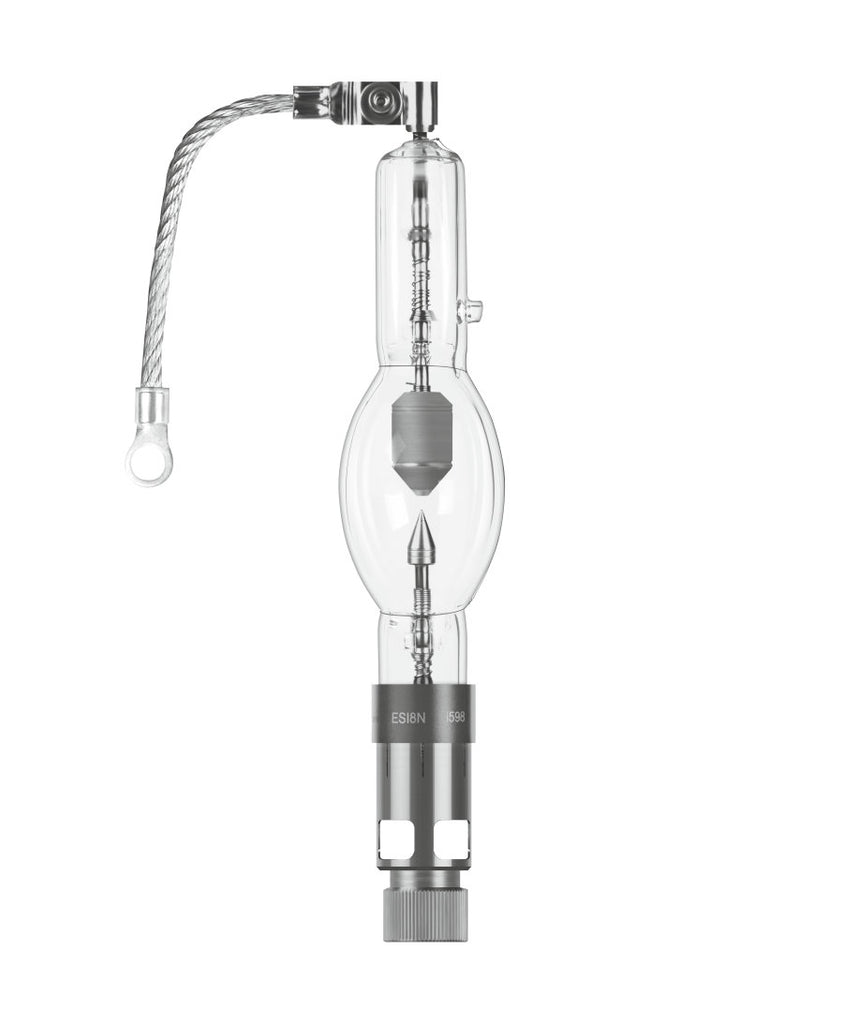

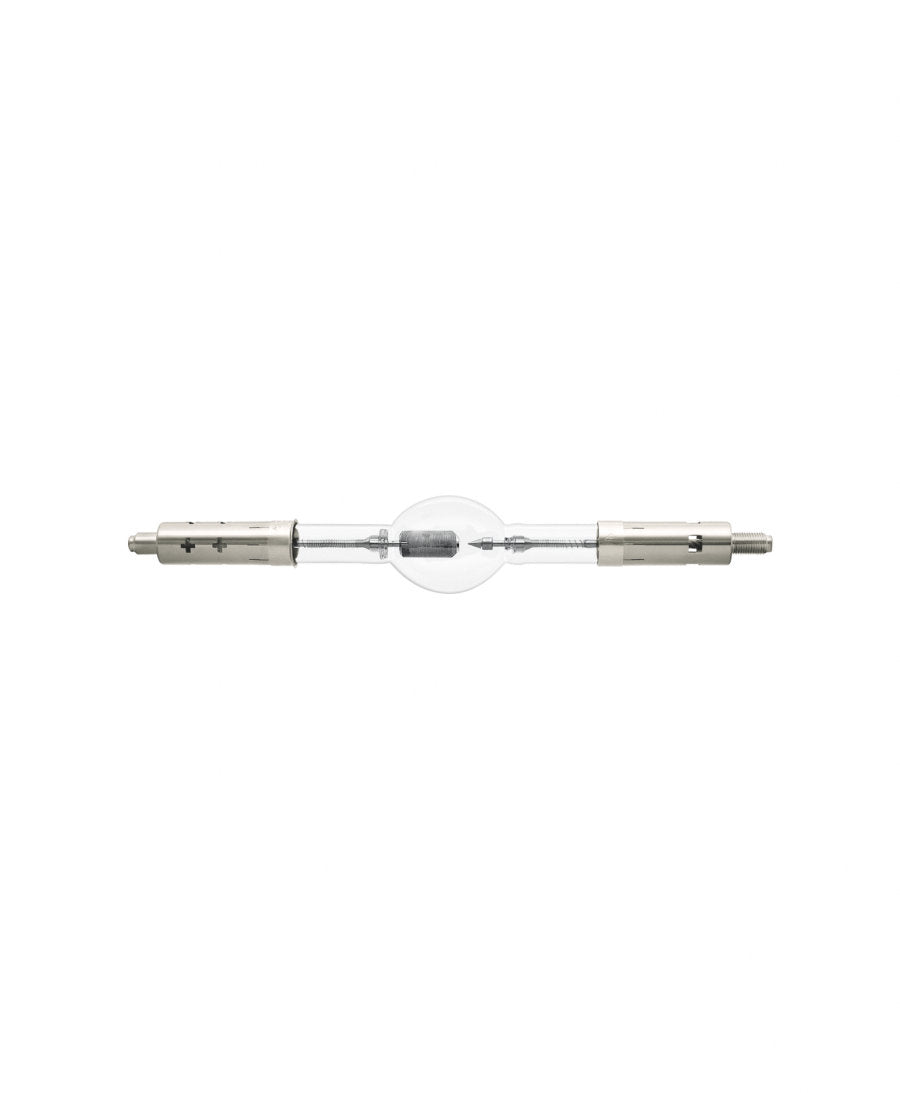

OSRAM XBO 3000W DTP L OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 17106
$1,37299 $1,622.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates



Osram XBO 17106 - 1200W/DHP OFR, XBO DHP for Digital Projection Lamp OSRAM XBO Xenon Discharge Lamps (>450W) are intensely bright and offer excellent color
rendering. Originally introduced in 1954 for cinema projection.OSRAM's innovation of XBO
technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Today OSRAM
offers an extensive line of XBO lamps designed specifically to meet in increasing demands of
digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of
point-source intensity needed for today's more demanding digital projection systems.

Product features and benefits:

  • Extremely high luminance for digital cinema projection
  • Color Temperature approximately 6000K - simulates daylight
  • Continuous spectrum in the visible range
  • High color rendering >95
  • High arc stability
  • DC operation
  • Hot restart
Areas of application:
  • Digital Projection
  • Film Projection
  • Spotlights
  • Searchlights
  • Solar Simulation


Nominal current 101 A
Current control range 74.109 A
Nominal Wattage 3000.00 W
Nominal Voltage 27.0 V
Diameter 60.0 mm
Length 405.0 mm
Length with base excl. base pins/connection 354.00 mm
Light center length (LCL) 160.0 mm
Product weight 555.00 g
Electrode gap cold 6.0 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 1900 h
Service Warranty Lifetime 2800 h
Base anode (standard designation) SFa27-14
Base cathode (standard designation) SFc27-14
Cooling Forced
Burning position Other
EAN 4052899430549
Unit VS
Piece 1
Dimension l x w x h 590mm x 234mm x 234mm
Weight 1848.00g
Volume 32.31dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
