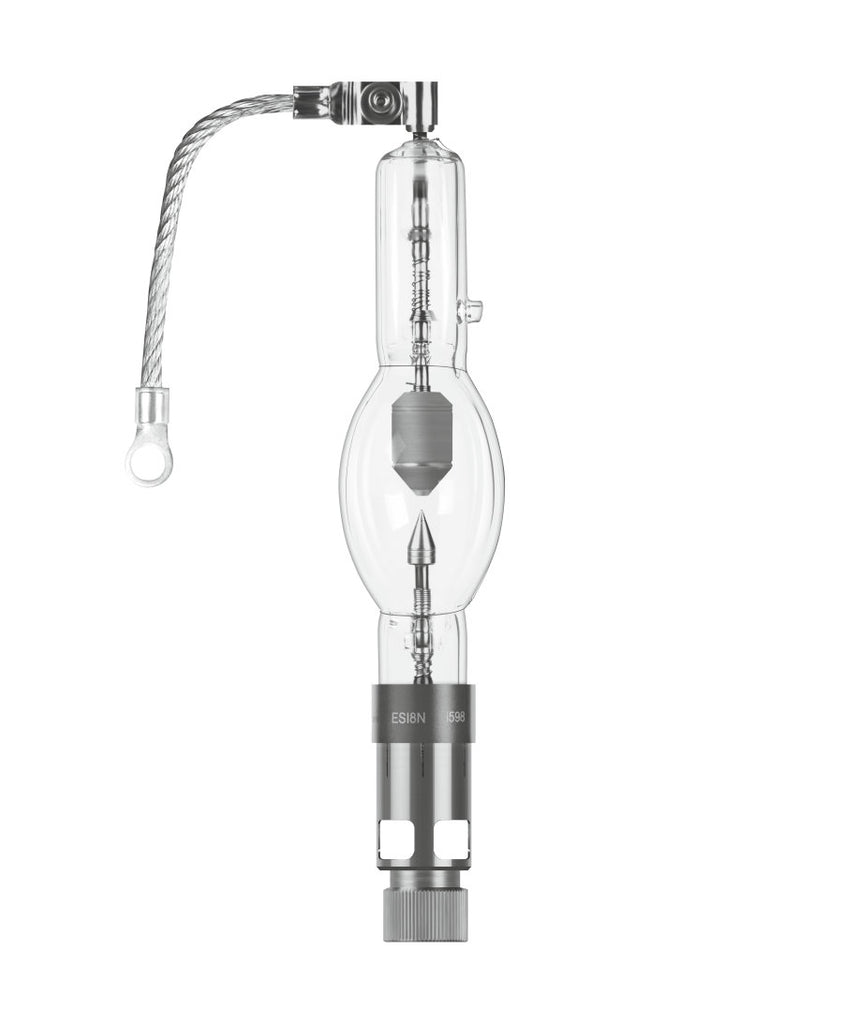

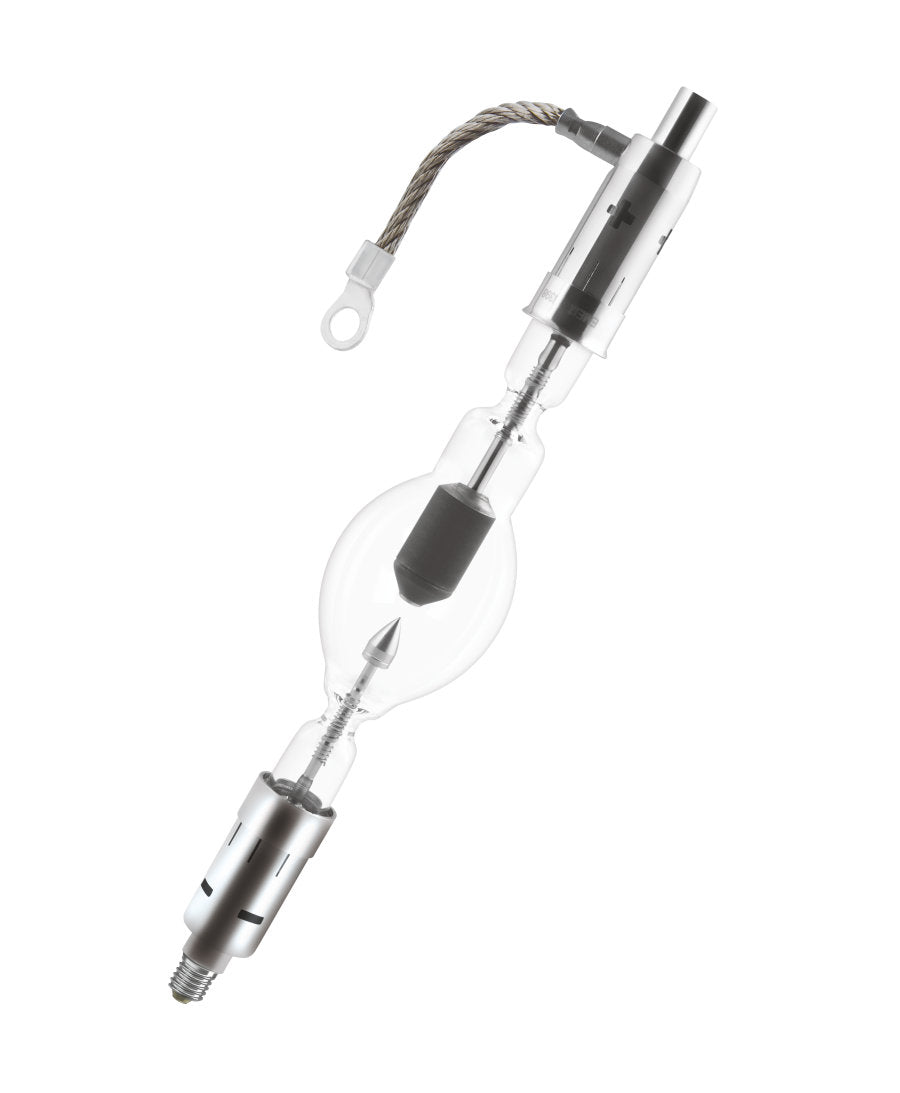

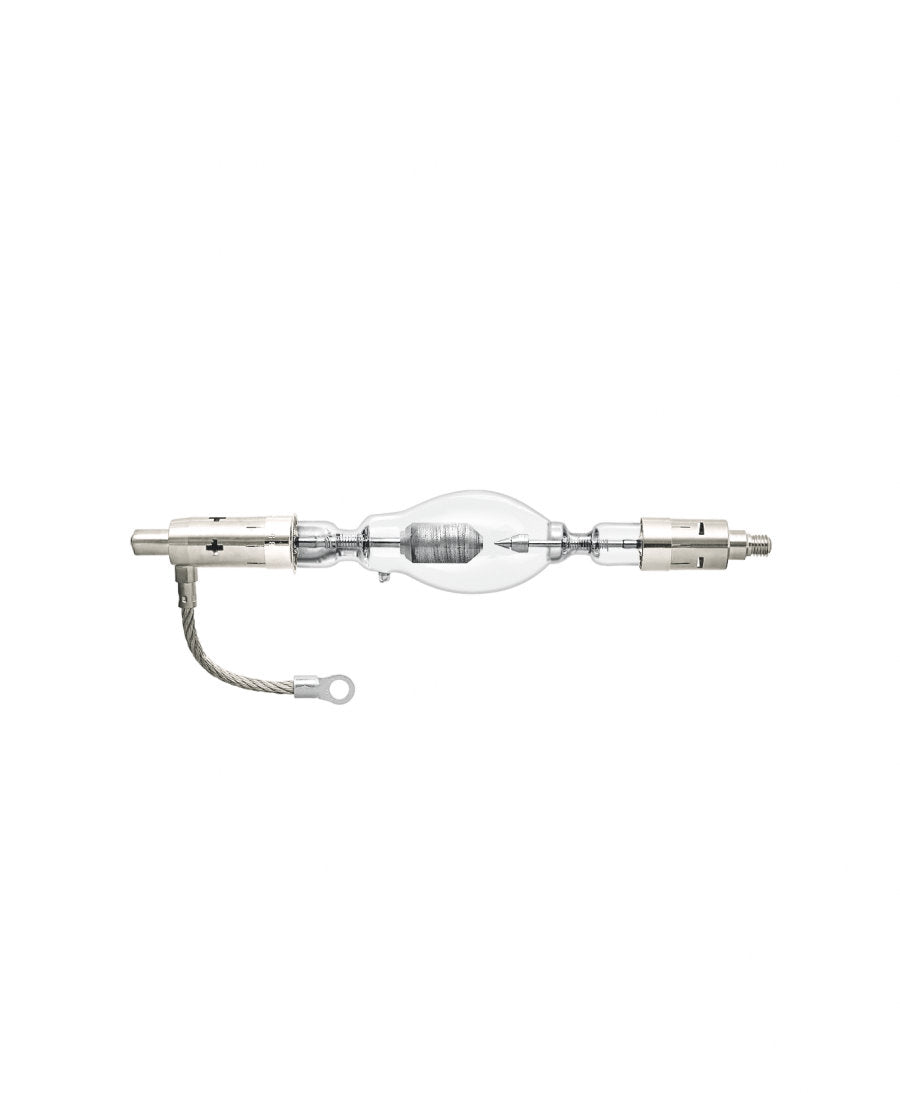

OSRAM XBO 3000W DTP OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69154
$1,51099 $2,052.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 101 A
Current control range 74.109 A
Nominal Wattage 3000.00 W
Nominal Voltage 27.0 V
Diameter 60.0 mm
Length 405.0 mm
Length with base excl. base pins/connection 354.00 mm
Light center length (LCL) 160.0 mm
Product weight 558.00 g
Electrode gap cold 6.0 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 1500 h
Service Warranty Lifetime 2500 h
Base anode (standard designation) SFa27-14
Base cathode (standard designation) SFc27-14
Cooling Forced
Burning position Other
EAN 4052899509474
Unit VS
Piece 1
Dimension l x w x h 590mm x 234mm x 234mm
Weight 1848.00g
Volume 32.31dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
