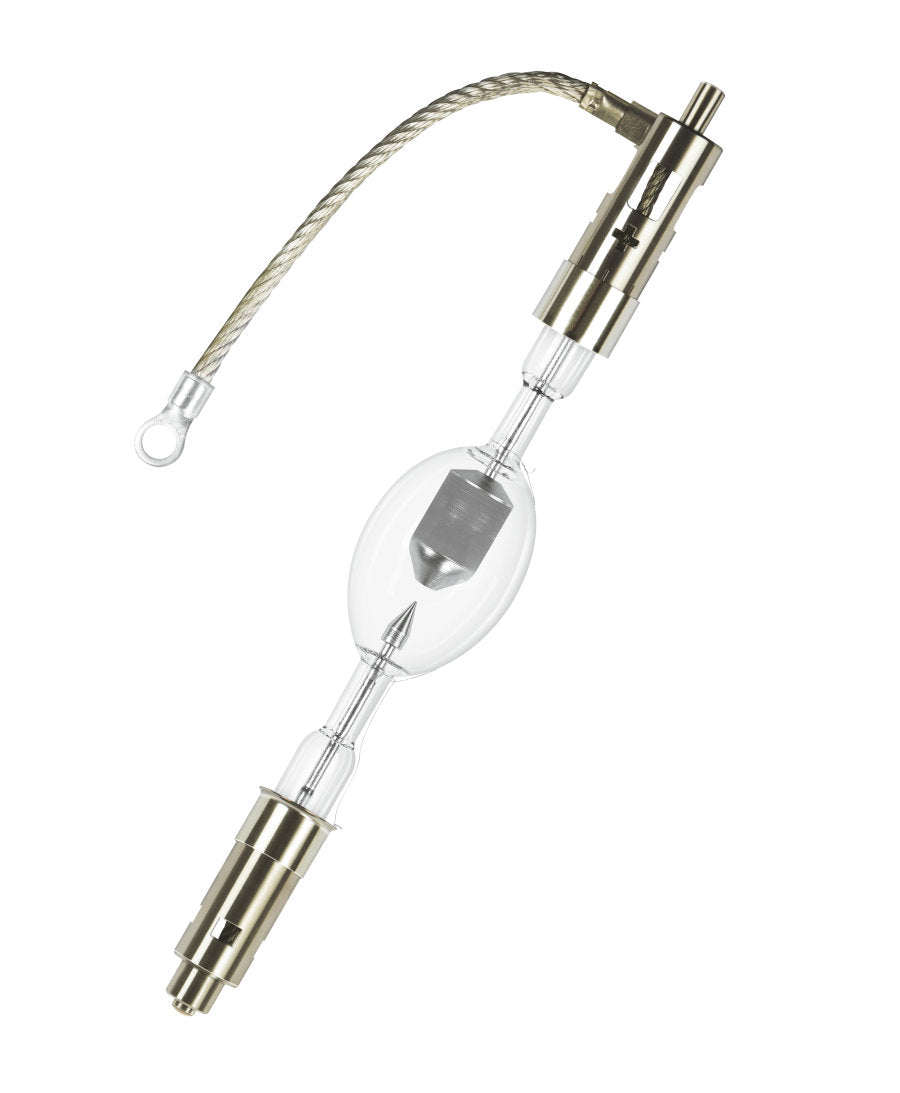

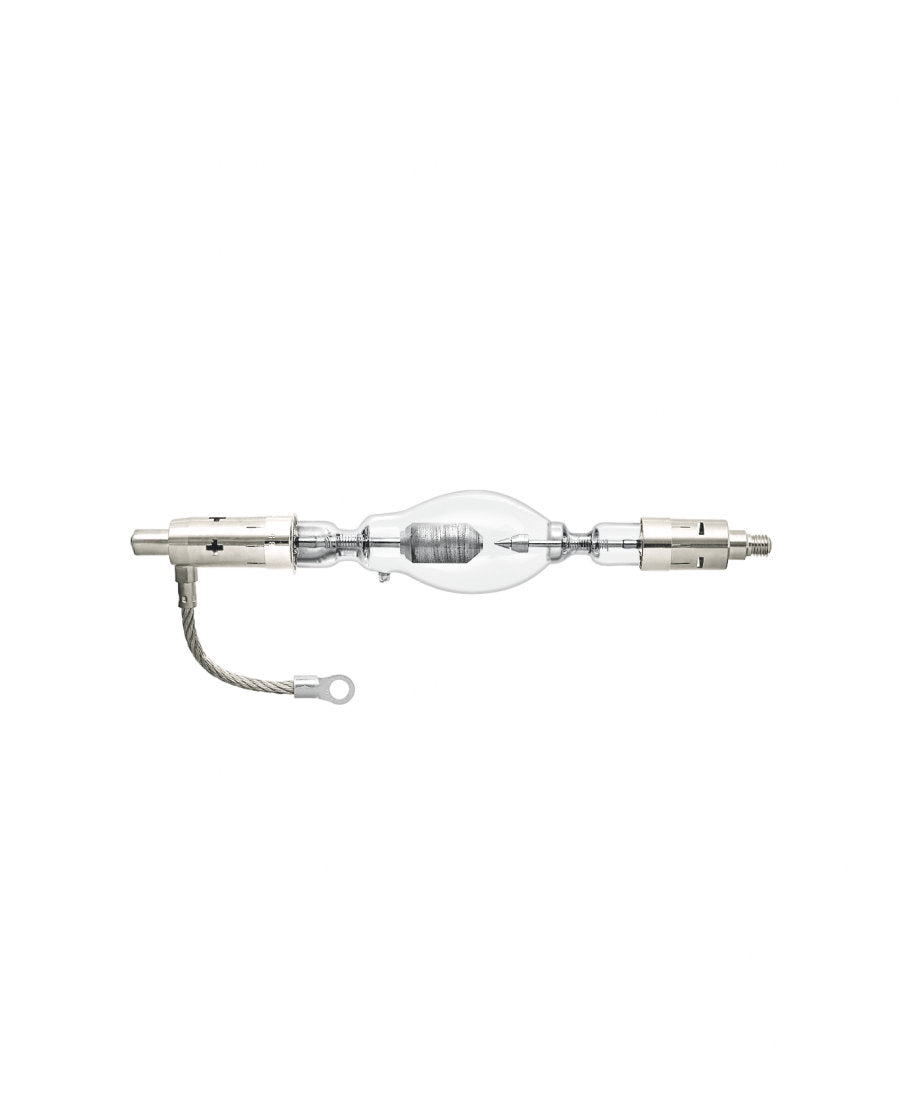

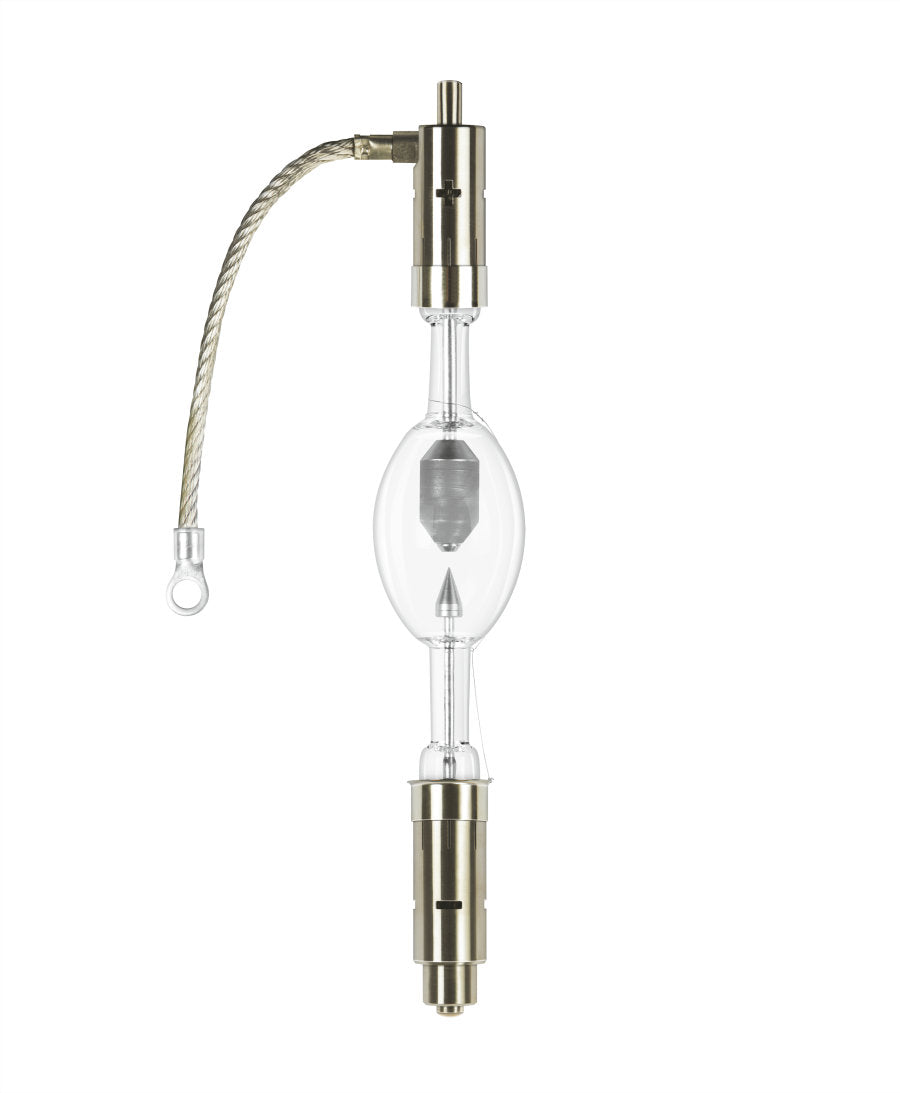

OSRAM XBO 3000W HPN OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69084
$1,37299 $1,622.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates



Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation


Nominal current 104 A
Current control range 77.108 A
Nominal Wattage 3000.00 W
Nominal Voltage 29.0 V
Diameter 55.0 mm
Length 345.0 mm
Length with base excl. base pins/connection 308.00 mm
Light center length (LCL) 144.0 mm
Cable/wire length, input side 235 mm
Cable length 228.0 mm
Product weight 601.00 g
Electrode gap cold 4.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 1500 h
Service Warranty Lifetime 1900 h
Base anode (standard designation) SFaX27-9.5
Base cathode (standard designation) SFa27-20
Cooling Forced
Burning position s15/p15
EAN 4062172030328
Unit VS
Piece 1
Dimension l x w x h 500mm x 204mm x 204mm
Weight 1531.00g
Volume 20.81dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury

Additional Info
