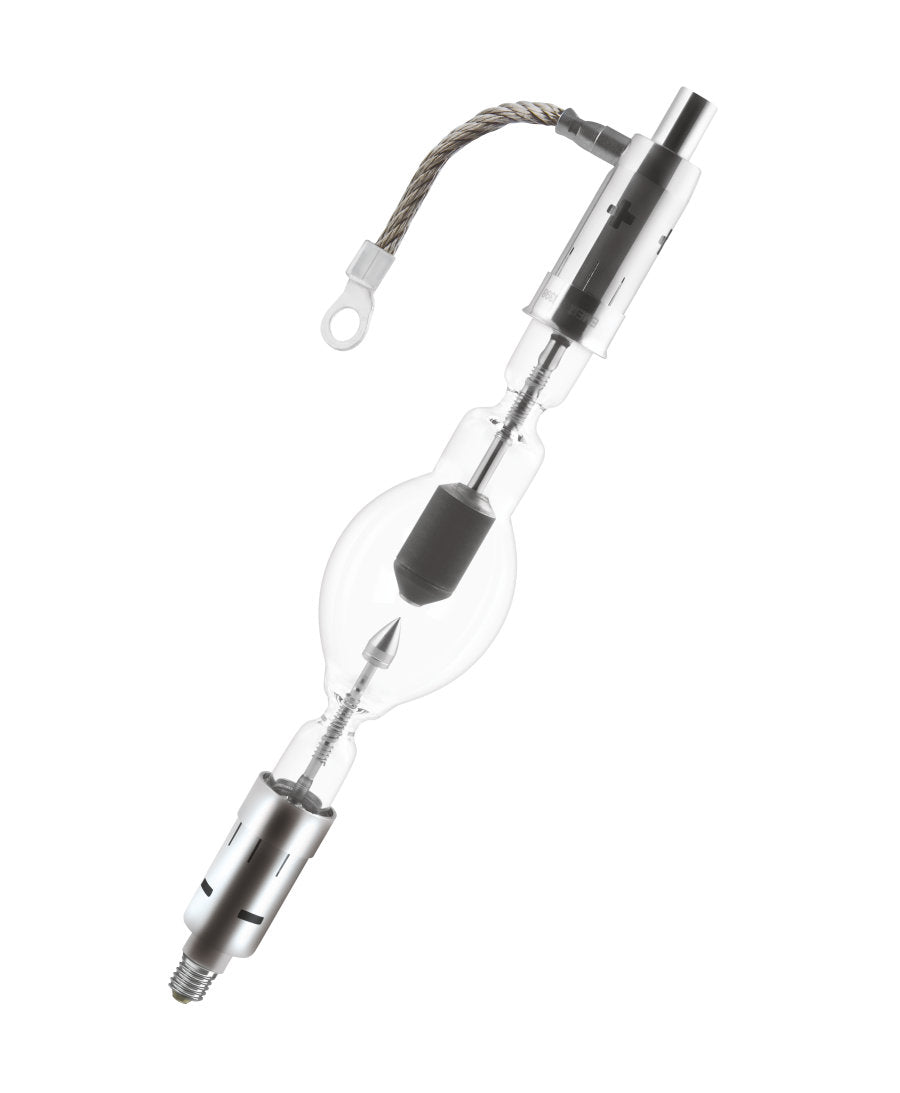

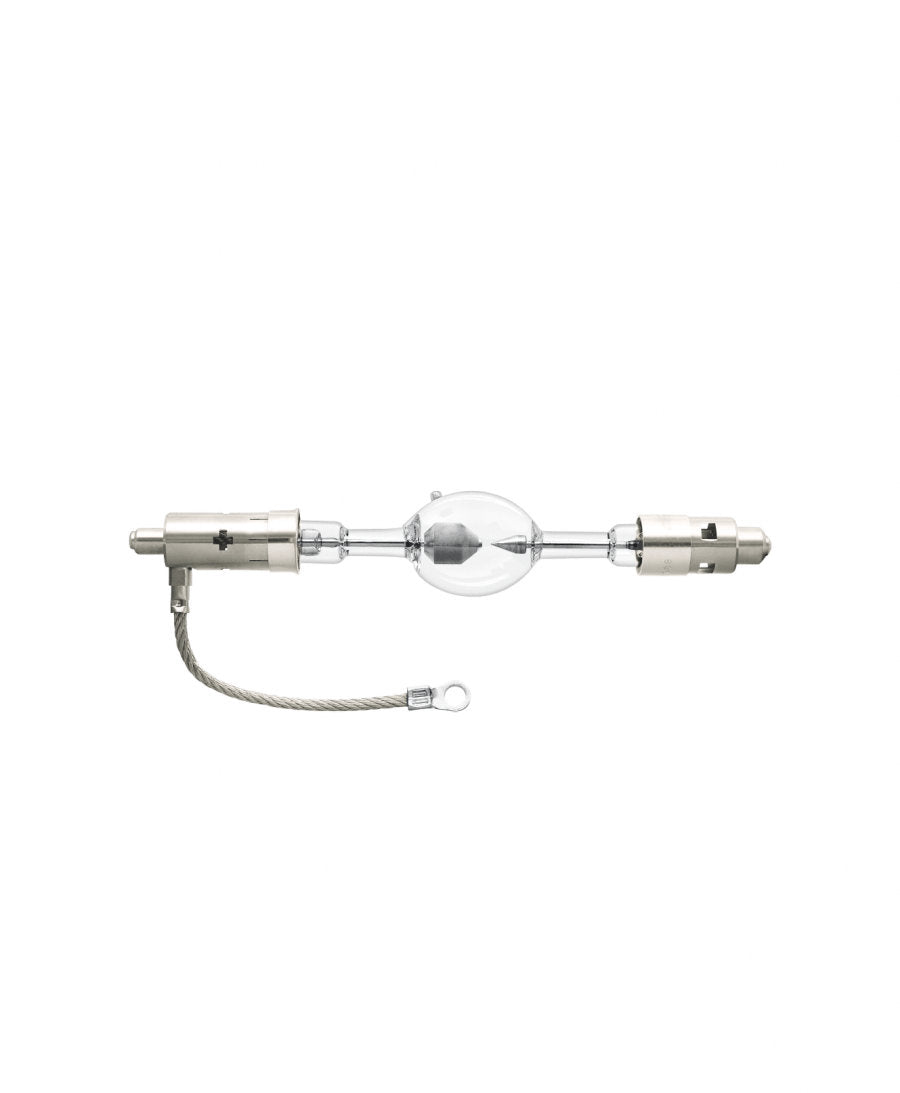

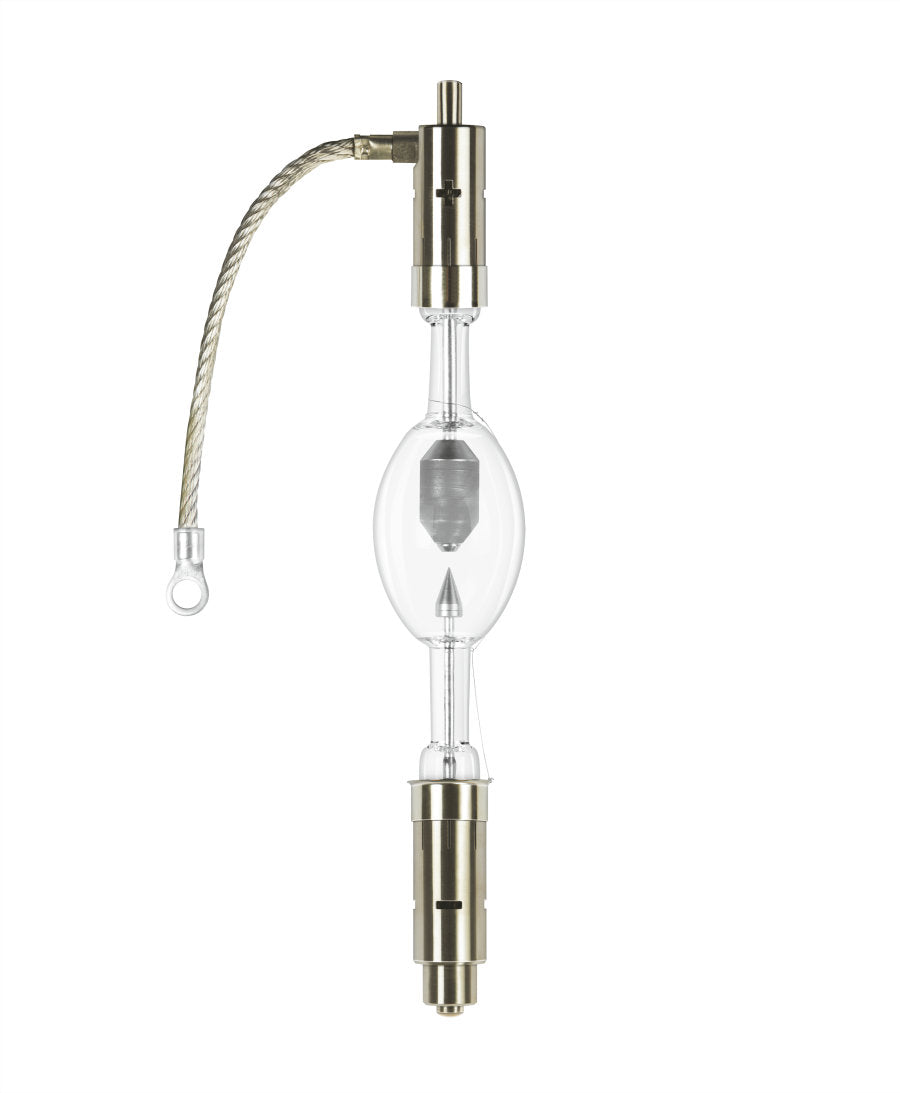

OSRAM XBO 3000W HPS OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69487
$1,61999 $2,421.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 105 A
Current control range 60.112 A
Nominal Wattage 3000.00 W
Nominal Voltage 28.0 V
Diameter 55.0 mm
Length 334.0 mm
Length with base excl. base pins/connection 297.00 mm
Light center length (LCL) 128.0 mm
Cable/wire length, input side 195 mm
Cable length 195.0 mm
Product weight 621.00 g
Electrode gap cold 4.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 1000 h
Service Warranty Lifetime 1300 h
Base anode (standard designation) SFaX30-14/68
Base cathode (standard designation) SFc30-20/50
Cooling Forced
Burning position Other
EAN 4062172030335
Unit VS
Piece 1
Dimension l x w x h 500mm x 204mm x 204mm
Weight 1551.00g
Volume 20.81dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
