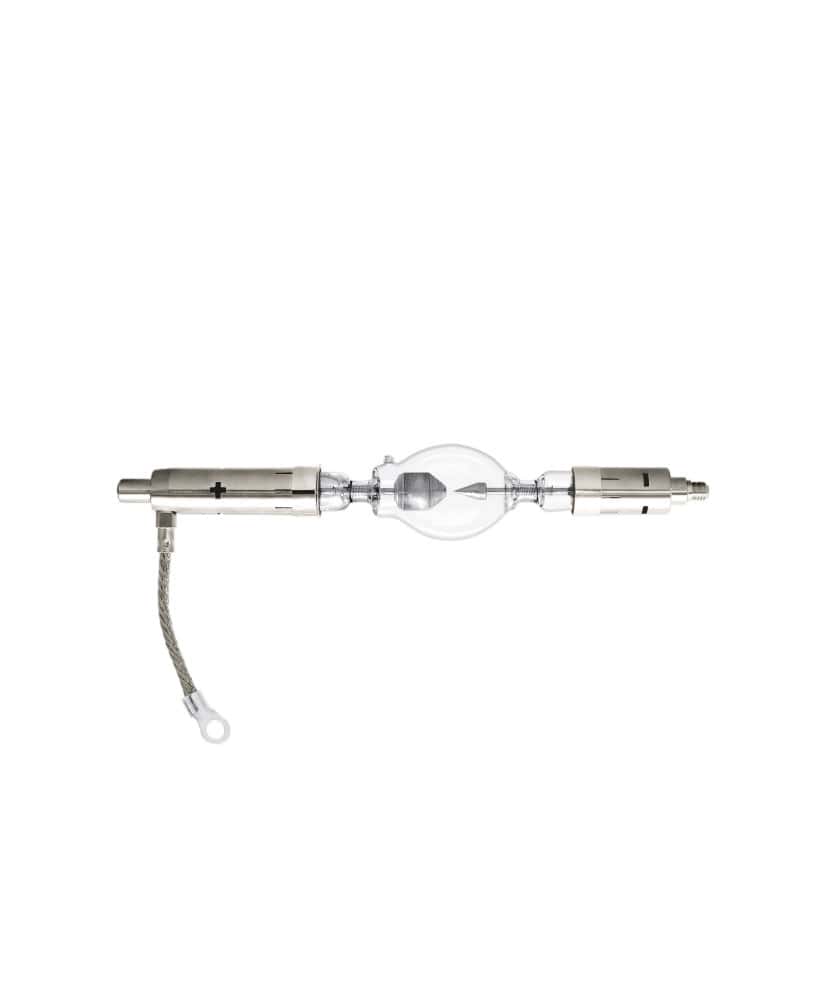

OSRAM XBO 4200W/CA OFR 4200W Cinema Film Projection Lamp

OSRAM SKU: 69294


$1,11399 $1,670.99
36 in stock


OSRAM 69294 4200w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.

The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems.

Key Features and Benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering > 95
- High arc stability
- DC operation
- Hot restart


Abbreviation Name XBO4200WCAOFR
Application Cinema Film Projection, Solar Simulation
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 100000
Base Special Double Ended
Base Anode SFaX27-13
Base Cathode SFaX27-14
Warranty Hours 1000
Bulb KO156
Class C (gas)
Cooling Required
Current (A) 140
Current Control Range (A) 80-160
Diameter d (in) 2.756
Diameter d (mm) 70
Distance a (mm) 167.5
Electrode Gap (cold) (mm) 7
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 428
Length l2 max. (mm) 382
Light Center Length - LCL (mm) 167.5
Luminous Area w x h (mm) 2.1 x 5.7
Luminous Intensity (cd) 20000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 428
Nominal Voltage (V) 27
Nominal Wattage (W) 4200
Operating Position s 15
Reflector Coating 70
Type of Current DC
