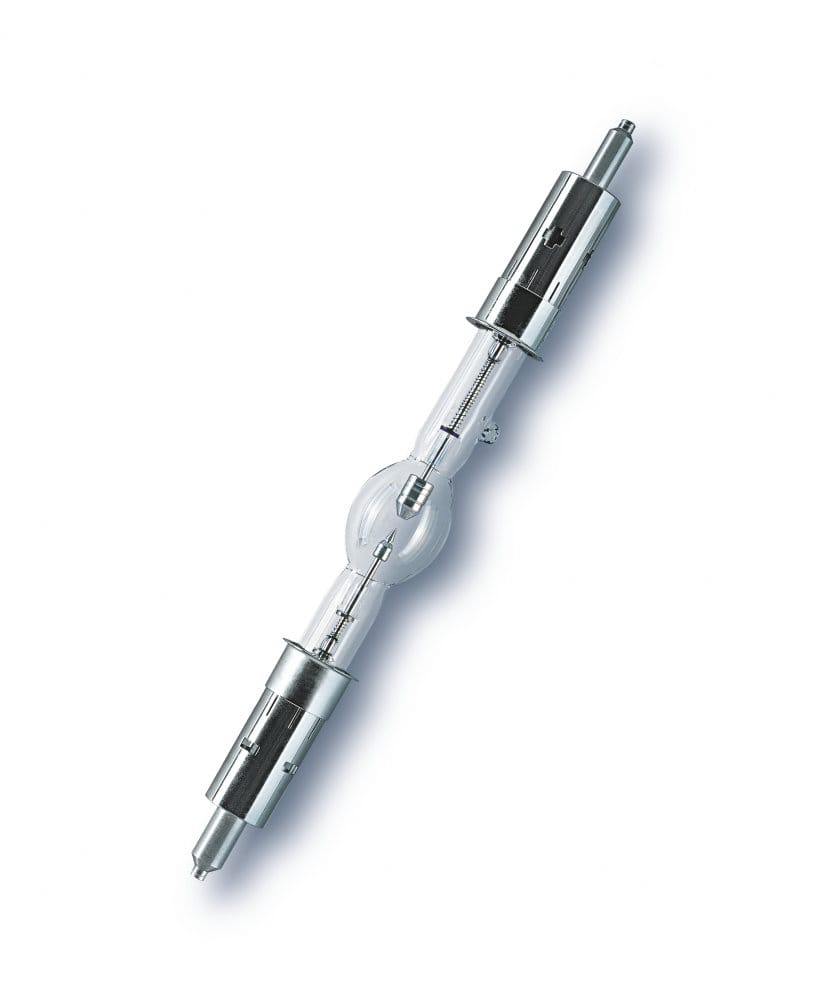

OSRAM 69241 - XBO 450W xenon short arc double-ended used in microscopes

OSRAM SKU: 69241
$51299 $682.99 USD
16 in stock



1

Description

OSRAM 69241 XBO 450w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years. Key Features and Benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation

Specs

Abbreviation Name XBO450W
Application Microscopy
Average Luminance (cd/cm2) 35000
Base Special Double Ended
Base Anode SFa20-8
Base Cathode SFa20-10
Bulb T29,5
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Cooling Required
Current (A) 25
Current Control Range (A) 17-30
Diameter d (in) 1.142
Diameter d (mm) 29
Distance a (mm) 95.5
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 260
Length l2 max. (mm) 212
Light Center Length - LCL (mm) 95.5
Luminous Area w x h (mm) 0.9 x 2.7
Luminous Flux (lm) 13000
Luminous Intensity (cd) 1300
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 260
Nominal Voltage (V) 17
Nominal Wattage (W) 450
Operating Position s 30
Reflector Coating 29
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
