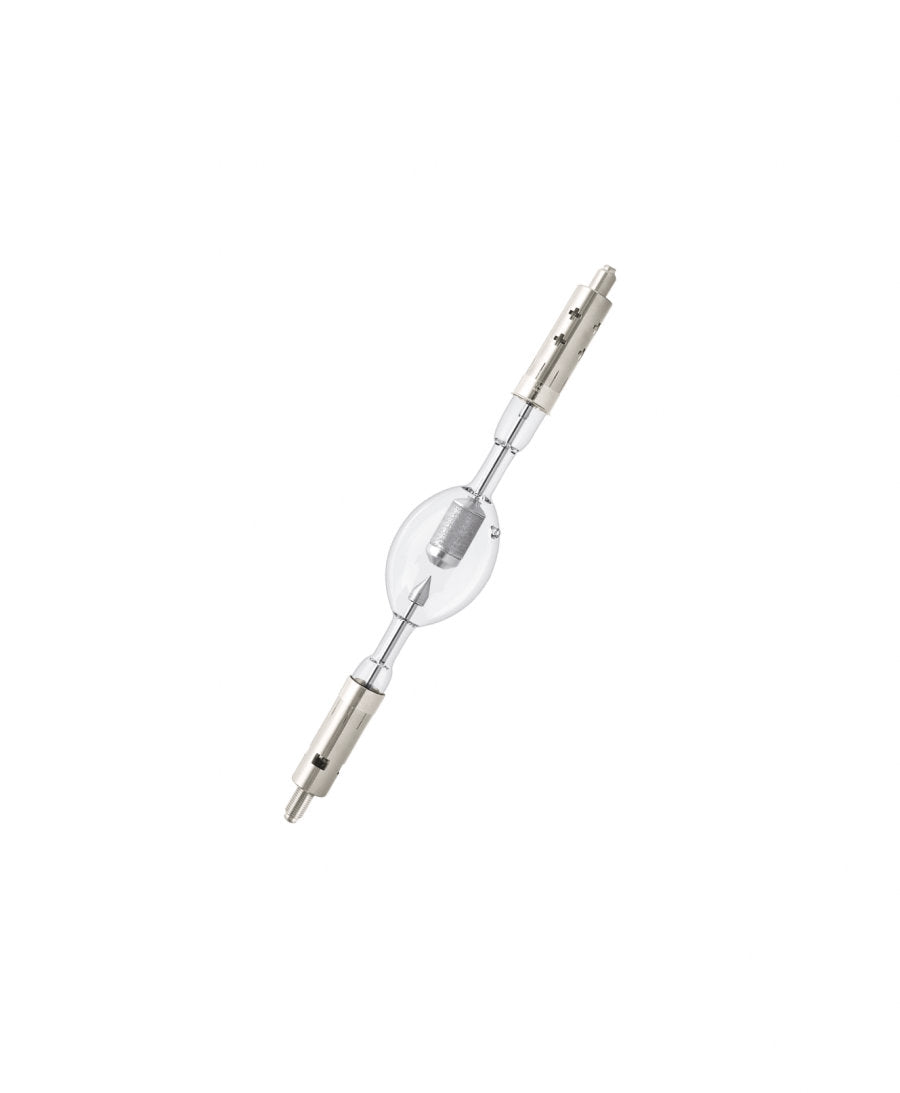

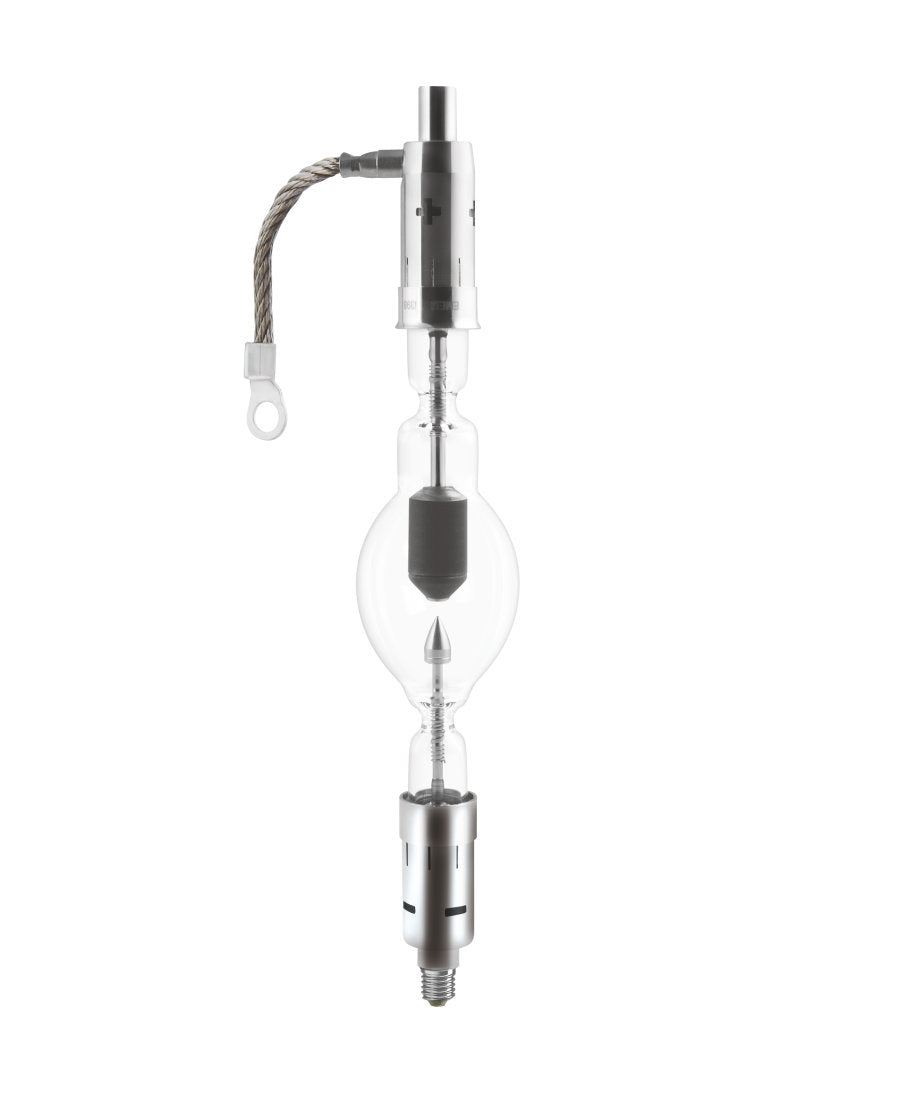

OSRAM XBO 6000W DTP OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69460
$2,15199 $2,542.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates



Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation


Nominal current 170 A
Current control range 140.175 A
Nominal Wattage 6000.00 W
Nominal Voltage 35.0 V
Diameter 78.0 mm
Length 434.0 mm
Length with base excl. base pins/connection 383.00 mm
Light center length (LCL) 165.0 mm
Product weight 960.00 g
Electrode gap cold 7.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 600 h
Service Warranty Lifetime 750 h
Base anode (standard designation) SFa27-14
Base cathode (standard designation) SFc27-14
Cooling Forced
Burning position Other
EAN 4062172030700 / 4062172030717
Unit VS
Piece 1
Dimension l x w x h 590mm x 234mm x 234mm
Weight 2266.00g
Volume 32.31dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
