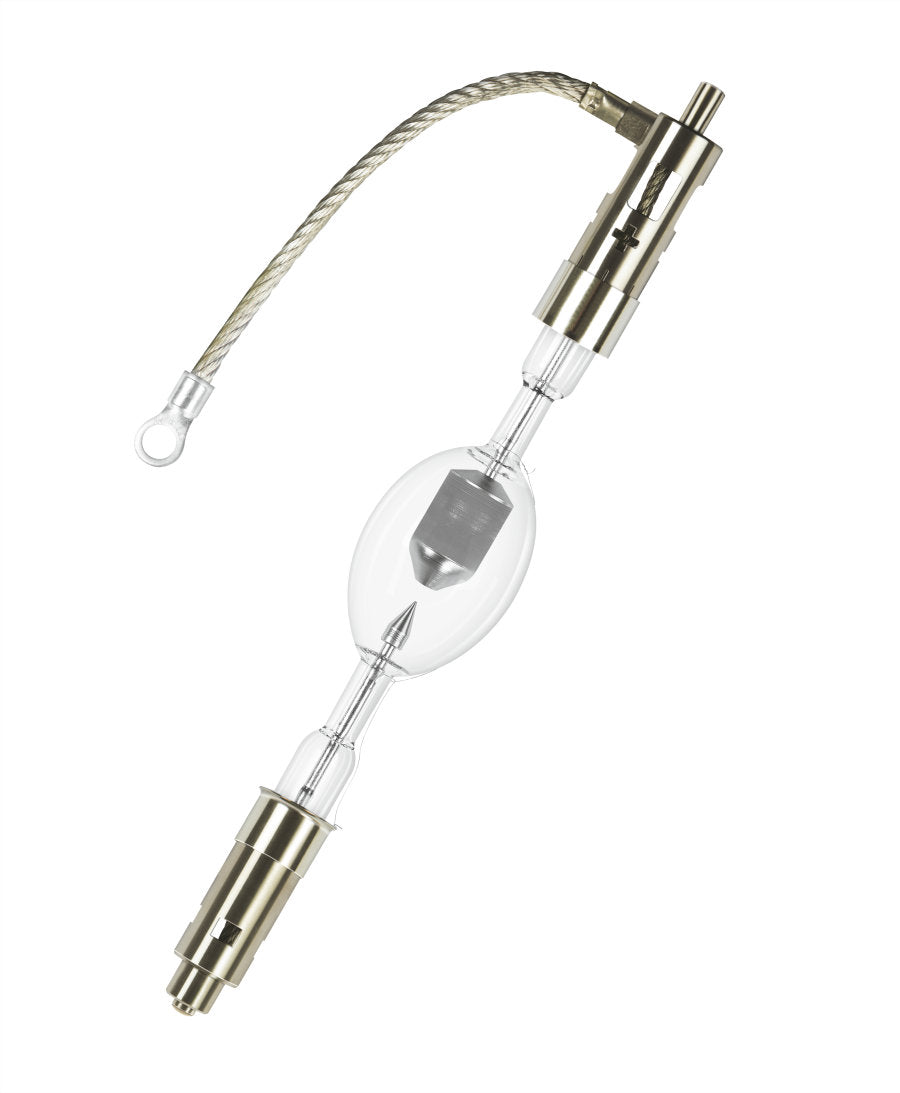

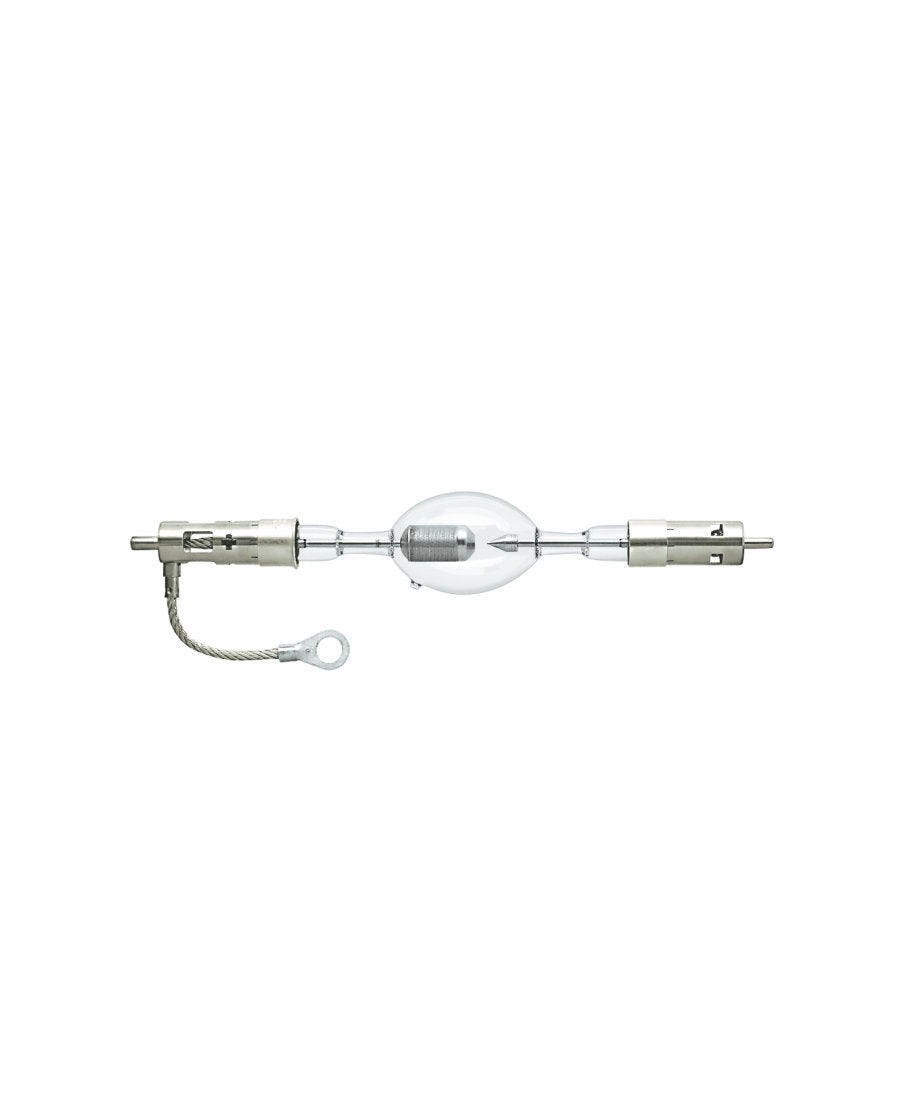

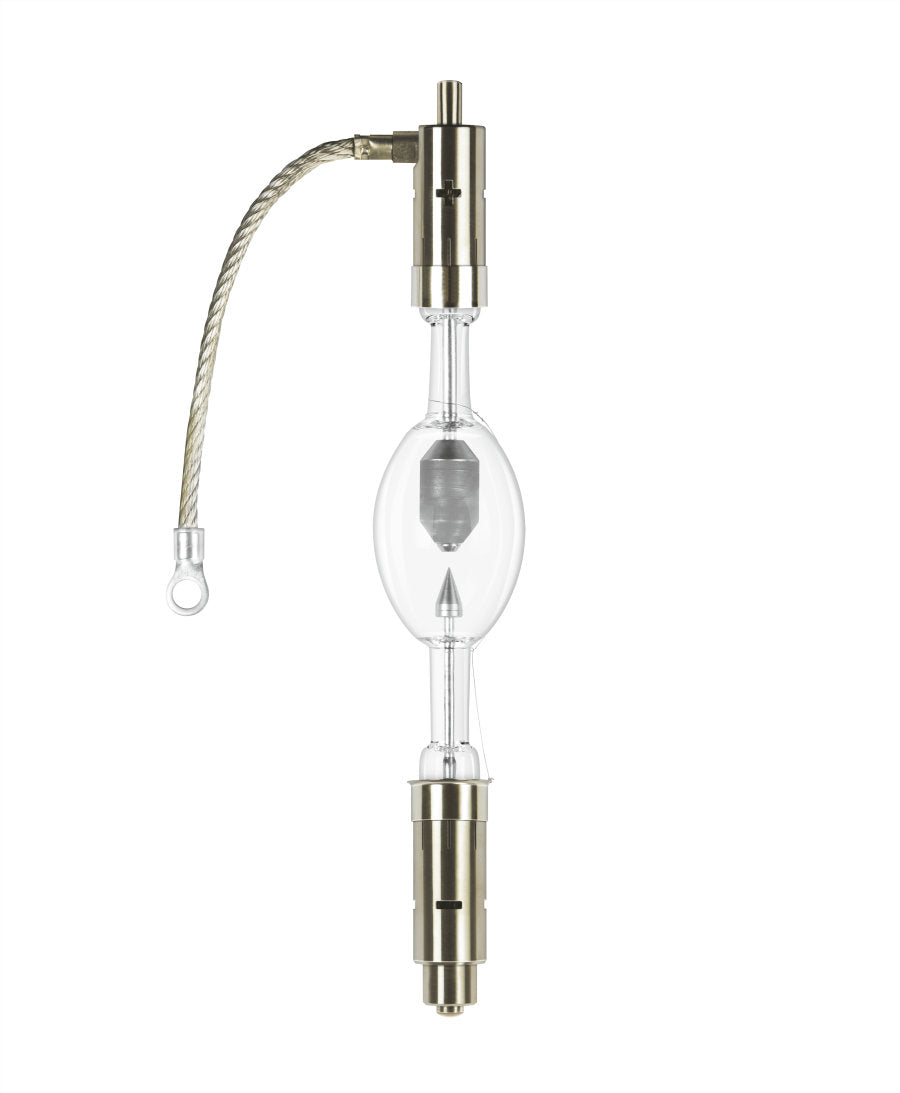

OSRAM XBO 6000W HPN OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69123
$2,41499 $2,853.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 160 A
Current control range 120.163 A
Nominal Wattage 6000.00 W
Nominal Voltage 37.5 V
Diameter 78.0 mm
Length 428.0 mm
Length with base excl. base pins/connection 389.00 mm
Light center length (LCL) 171.5 mm
Cable/wire length, input side 235 mm
Cable length 228.0 mm
Product weight 1050.00 g
Electrode gap cold 7.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 650 h
Service Warranty Lifetime 800 h
Base anode (standard designation) SFaX30-9.5
Base cathode (standard designation) SFa30-20
Cooling Forced
Burning position s15/p15
EAN 4062172030649
Unit VS
Piece 1
Dimension l x w x h 590mm x 234mm x 234mm
Weight 2356.00g
Volume 32.31dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
