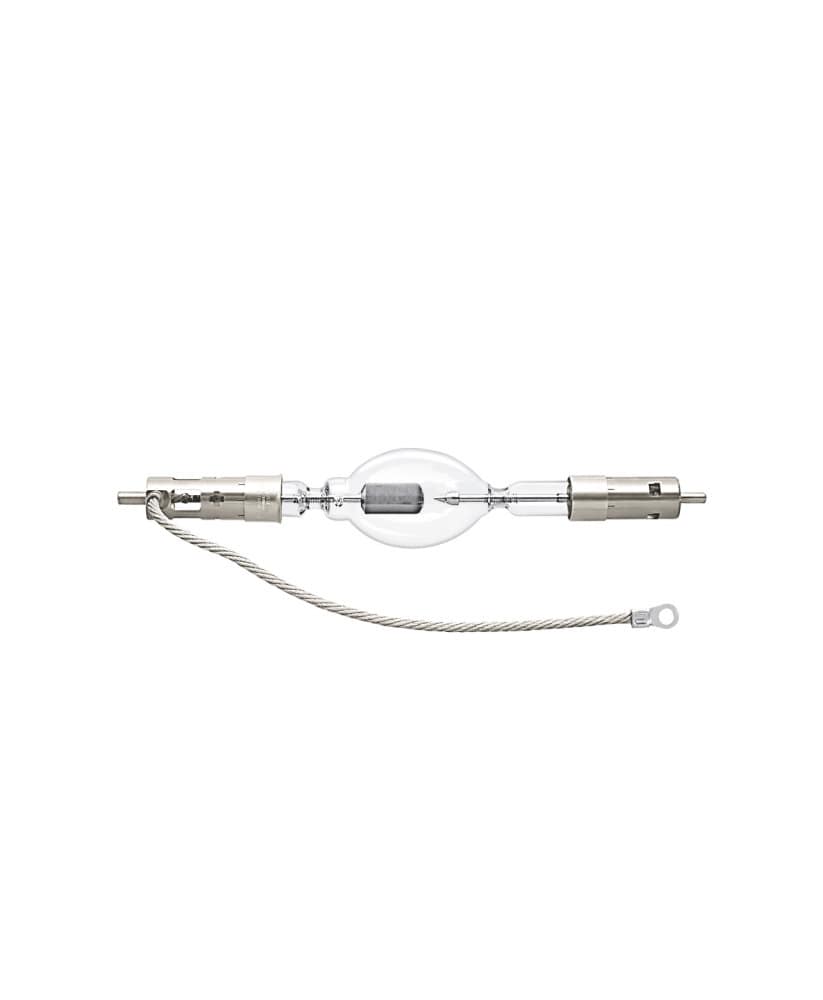

OSRAM XBO 7000W/HS XL OFR 7000W Cinema Film Projection Lamp

OSRAM XBO 7000W/HS XL OFR 7000W Cinema Film Projection Lamp

OSRAM SKU: 69527
$1,94399 $3,355.99 USD
1 in stock




1

Description

OSRAM 69527 7000w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.

The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems. Key Features and Benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering >95
- High arc stability
- DC operation
- Hot restart

Specs

Abbreviation Name XBO7000WHSXLOFR
Application Cinema Film Projection
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 100000
Base Special Double Ended
Base Anode SFaX30-9.5
Base Cathode SFaX30-9.5
Warranty Hours 650
Bulb KO164
Class C (gas)
Cooling Required
Current (A) 160
Current Control Range (A) 110-165
Diameter d (in) 3.071
Diameter d (mm) 78
Distance a (mm) 170.5
Electrode Gap (cold) (mm) 11
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 433
Length l2 max. (mm) 393
Light Center Length - LCL (mm) 170.5
Luminous Area w x h (mm) 2.6 x 9.0
Luminous Intensity (cd) 35000
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 433
Nominal Voltage (V) 42
Nominal Wattage (W) 7000
Operating Position s15 p15
Reflector Coating 78
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
