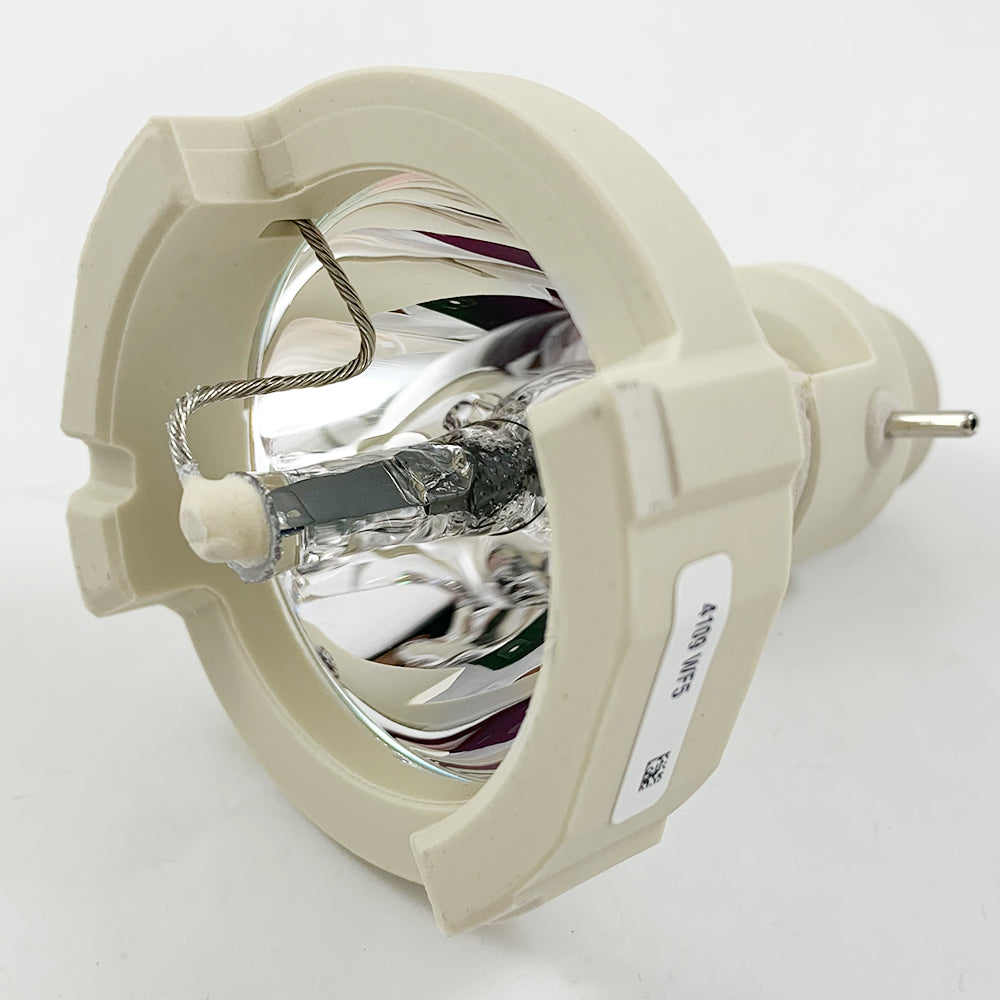

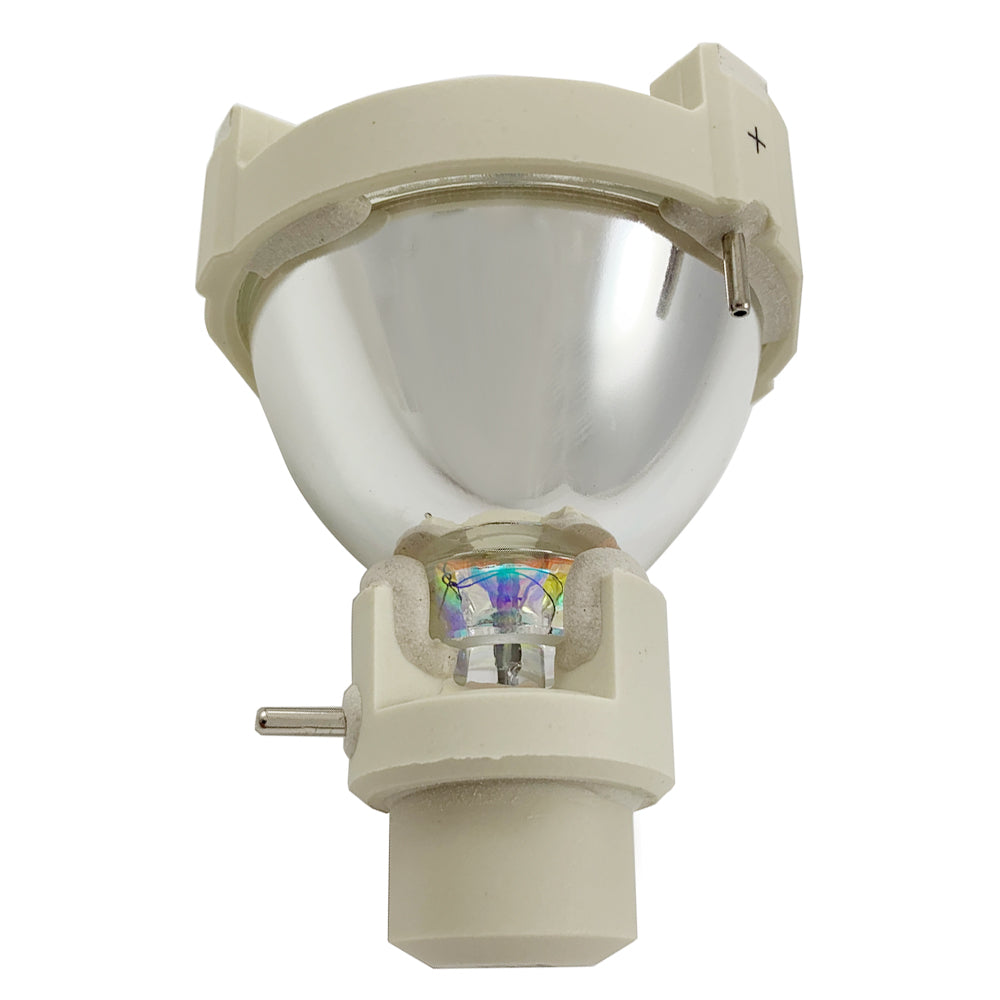

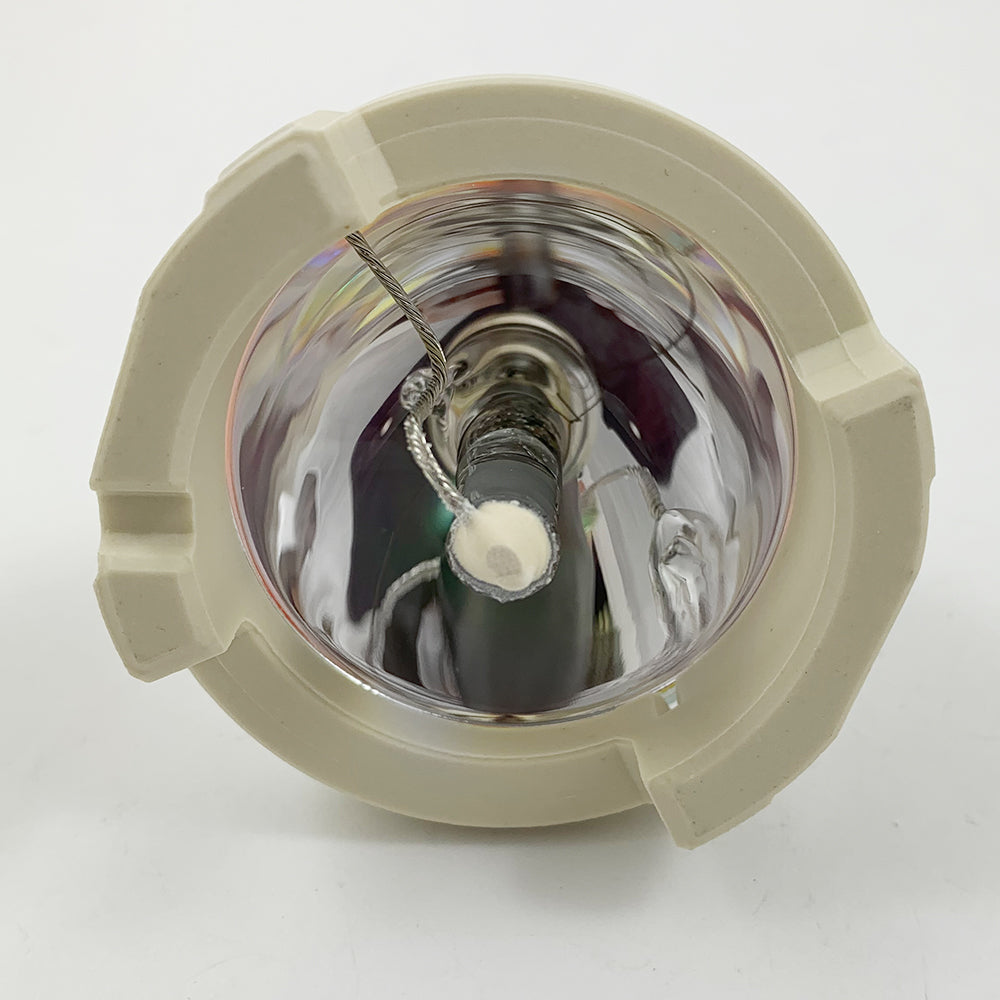

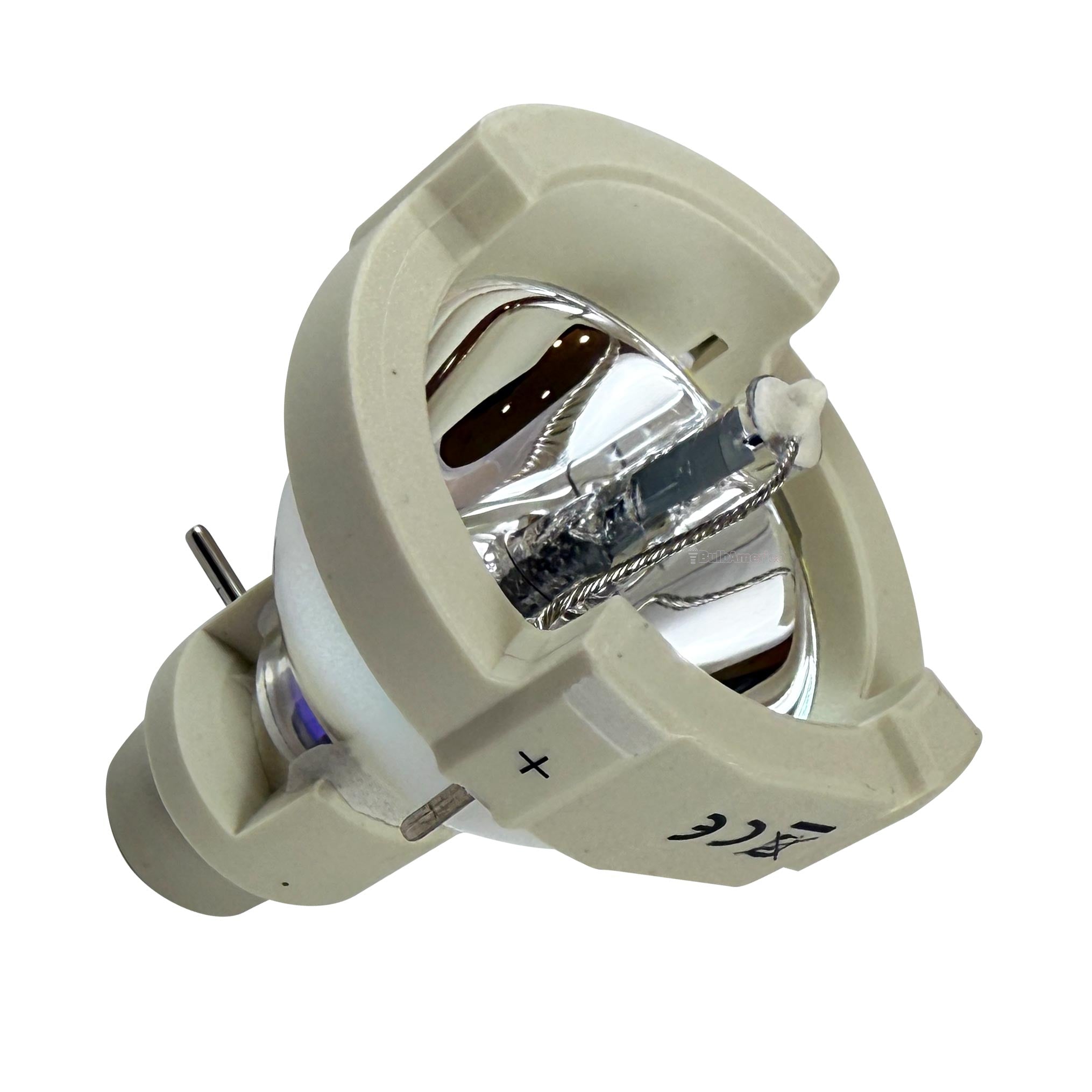

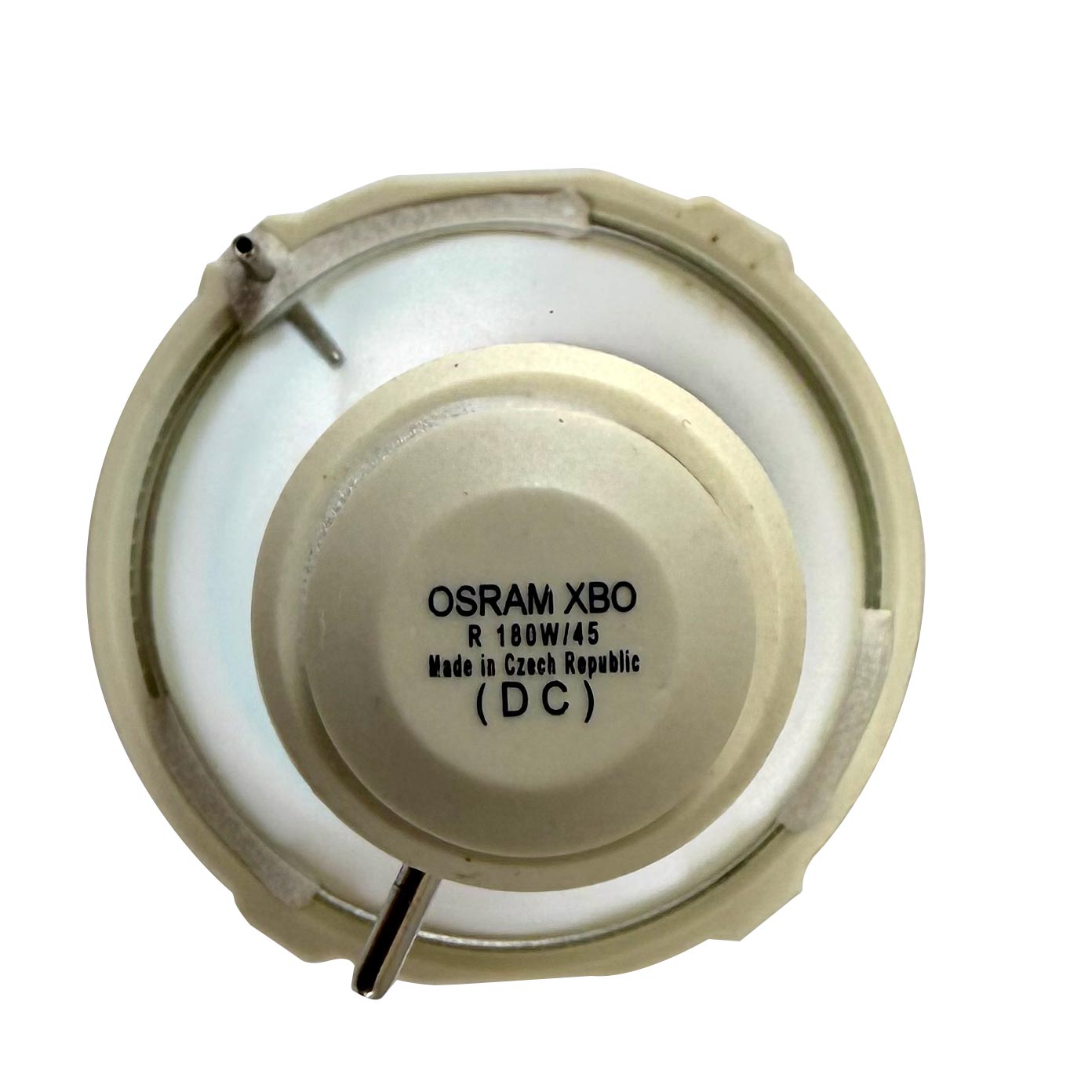

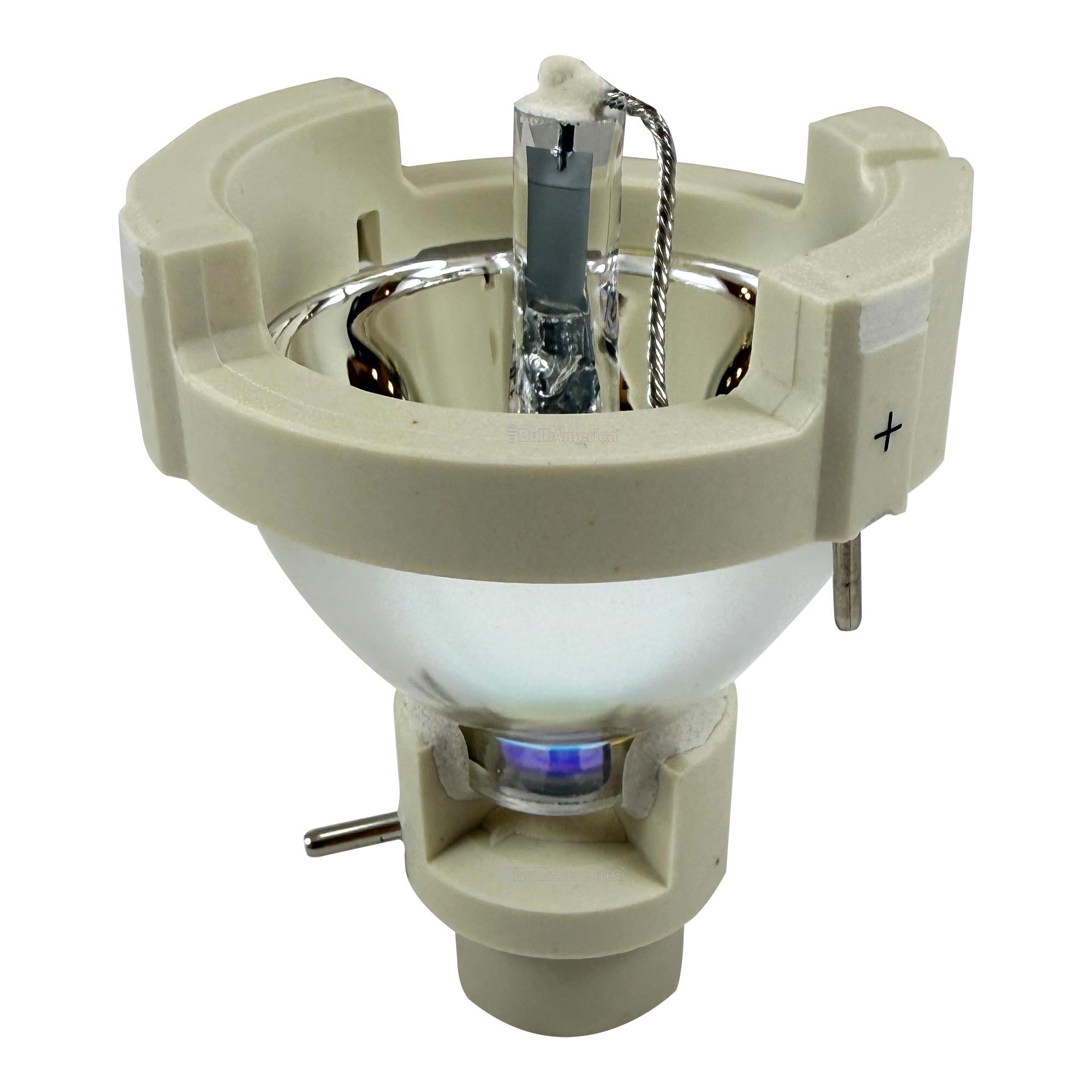

OSRAM XBO R 180W/45 OFR 180W 14V xenon short arc with reflector

OSRAM SKU: 69186
$54499 $947.99 USD
16 in stock



OSRAM 69186 XBO 180w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
This Osram 180 watt xenon short arc is used in applications including: Lightguide / Boroscopy, Fiber Optic, Minimal Invasive Surgery, Endoscopy.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years. Key Features and Benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation


Abbreviation Name XBOR180W45OFR
Application Lightguide / Boroscopy, Fiber Optic, Minimal Invasive Surgery, Endoscopy
Average Rated Life - Horizontal (hr) 500
Base Special
Beam Angle (deg) 44
Bulb T17
Class C (gas)
Color Rendering Index (CRI) >90
Color Temperature (K) 6000
Current (A) 12
Diameter d (in) 2.52
Diameter d (mm) 64
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 90
Length l1 max. (mm) 90
Length l2 (mm) 75
Length l2 max. (mm) 75
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 90
Nominal Wattage (W) 180
Operating Position p 15
Reflector Coating 64
Type of Current DC
Working Distance a (mm) 45
CA Prop 65 Yes
CA Prop 65 Material Mercury

Additional Info
