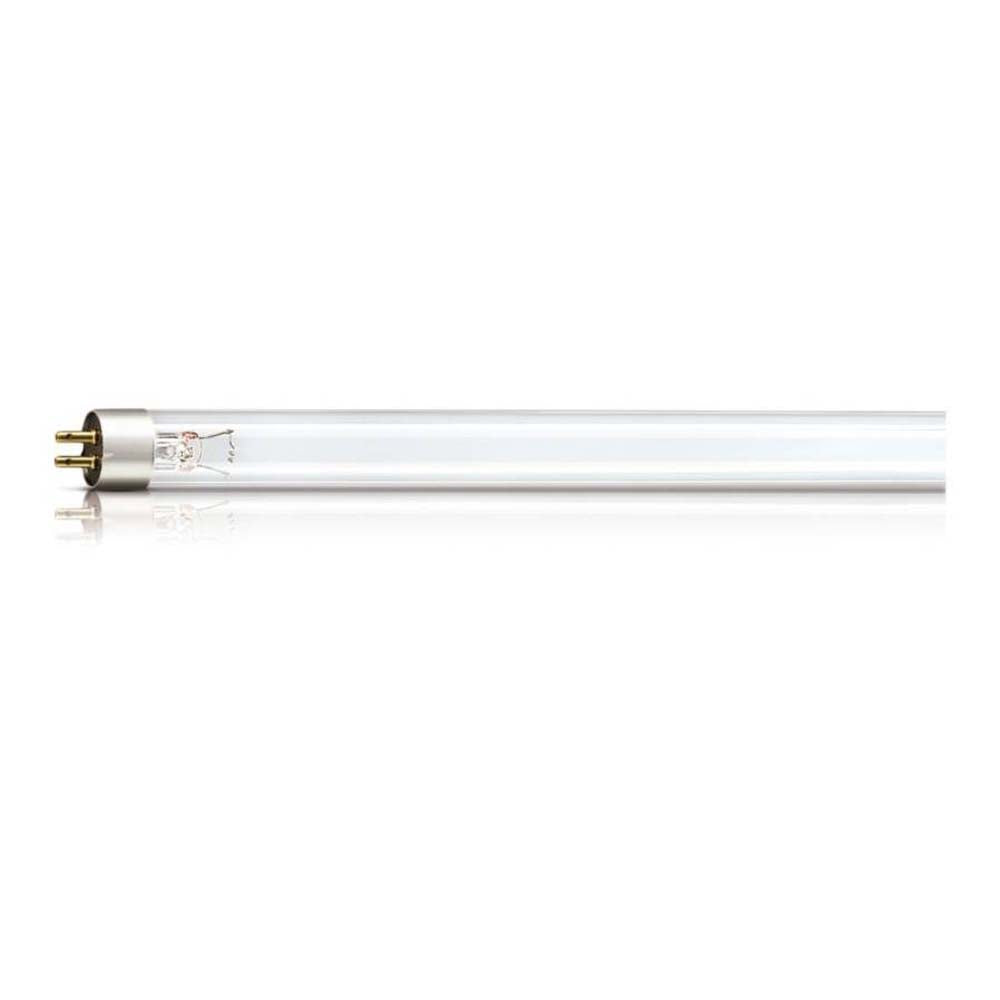

Philips 107w 45-in TUV 48T5 HO G5 Fluorescent Germicidal Lamps

TUV T5 lamps are single- or double-ended UV-C 253.7 nm emitting lamps. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime

Benefits:
- Security of effective disinfection over the useful lifetime of the lamp
- Good environmental choice because of lowest amount of mercury
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Small diameter

Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes - Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for further reduction of system size
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Warning & Safety:
- DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

Abbreviation Name	TUV 48T5 HO G5
12NC Code	927928804014
SKU	365916
Bulb Type	Disinfection
Base	G5
Shape	T5
Wattage	107
Voltage	135
Diameter (in)	0.629
Maximum Overall Length (in)	44.54
Rated Life	9000 hrs
UV-C Radiation	33.3
Mercury (Hg) Content	5.5 mg
Material Nr. (12NC)	927928804014
EAN/UPC	8719514413252

Manual:

Philips 365916 Data Sheet
