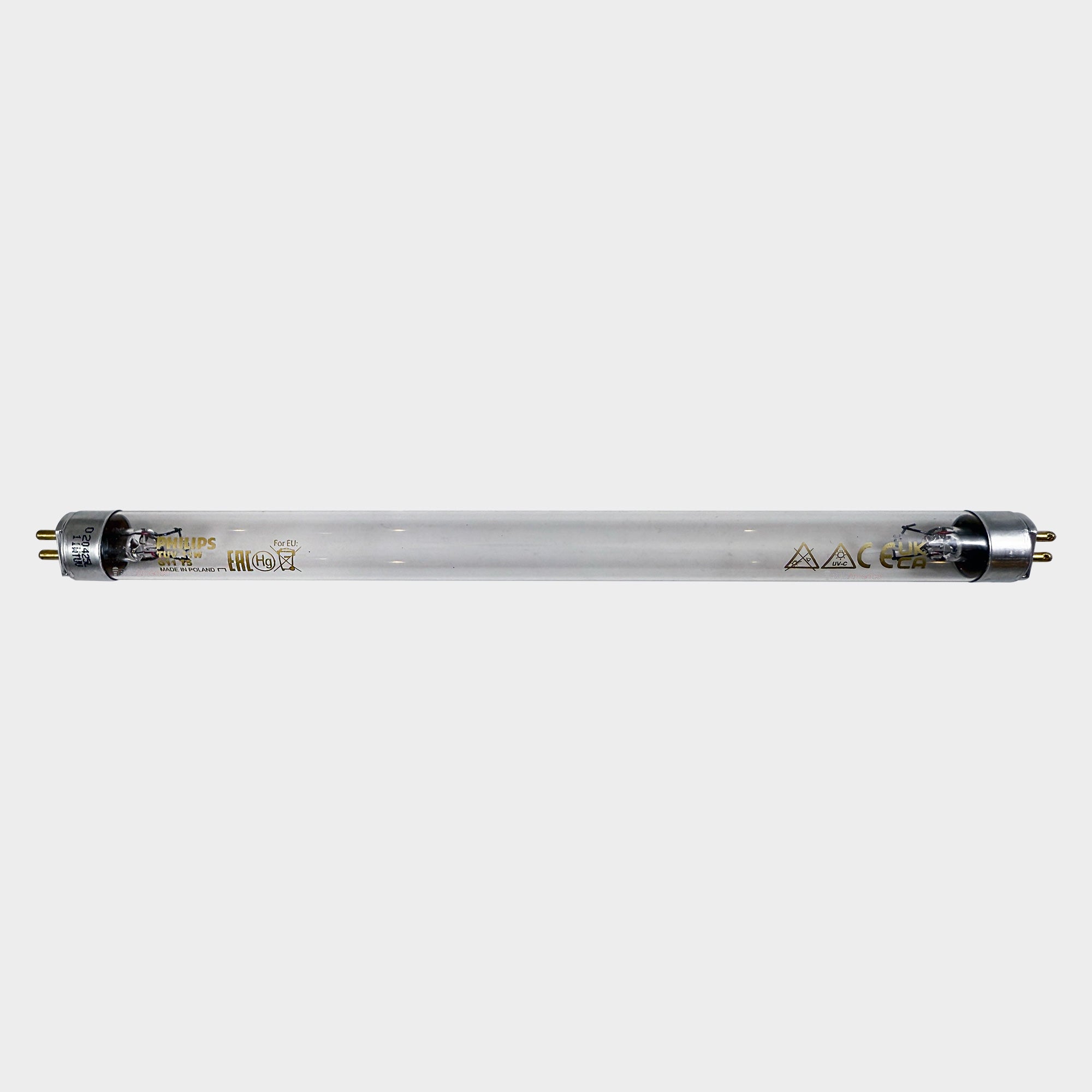

Philips 11.5w 9-in TUV 11W FAM/10X25BOX Fluorescent Germicidal Lamps

Philips 559654 / 352542 (9280 0220 4013) TUV T5 lamps are single- or double-ended UV-C 253.7 nm emitting lamps. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime

Benefits:
- Security of effective disinfection over the useful lifetime of the lamp
- Good environmental choice because of the lowest amount of mercury
- High system efficacy because it is not required to over-design the purification system to maintain the effectiveness of disinfection
- Small diameter

Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes - Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for further reduction of system size
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Warning & Safety:
- DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to the skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment that shields users from the radiation.

Brand	PHILIPS
12NC Code	928002204013
SKU	352542 / 559654
Abbreviation Name	TUV 11W FAM
Bulb Type	Disinfection
Base	G5
Shape	T5
Wattage	11.5
Voltage	34
Diameter (in)	0.629
Maximum Overall Length (in)	8.90
Rated Life	9000 hrs
UV-C Radiation	4.4
Mercury (Hg) Content	2.6 mg
Material Nr. (12NC)	928002204013
EAN/UPC	8711500559715
EAN/UPC	8711500559654

Manual:

Philips 352542 Data Sheet
