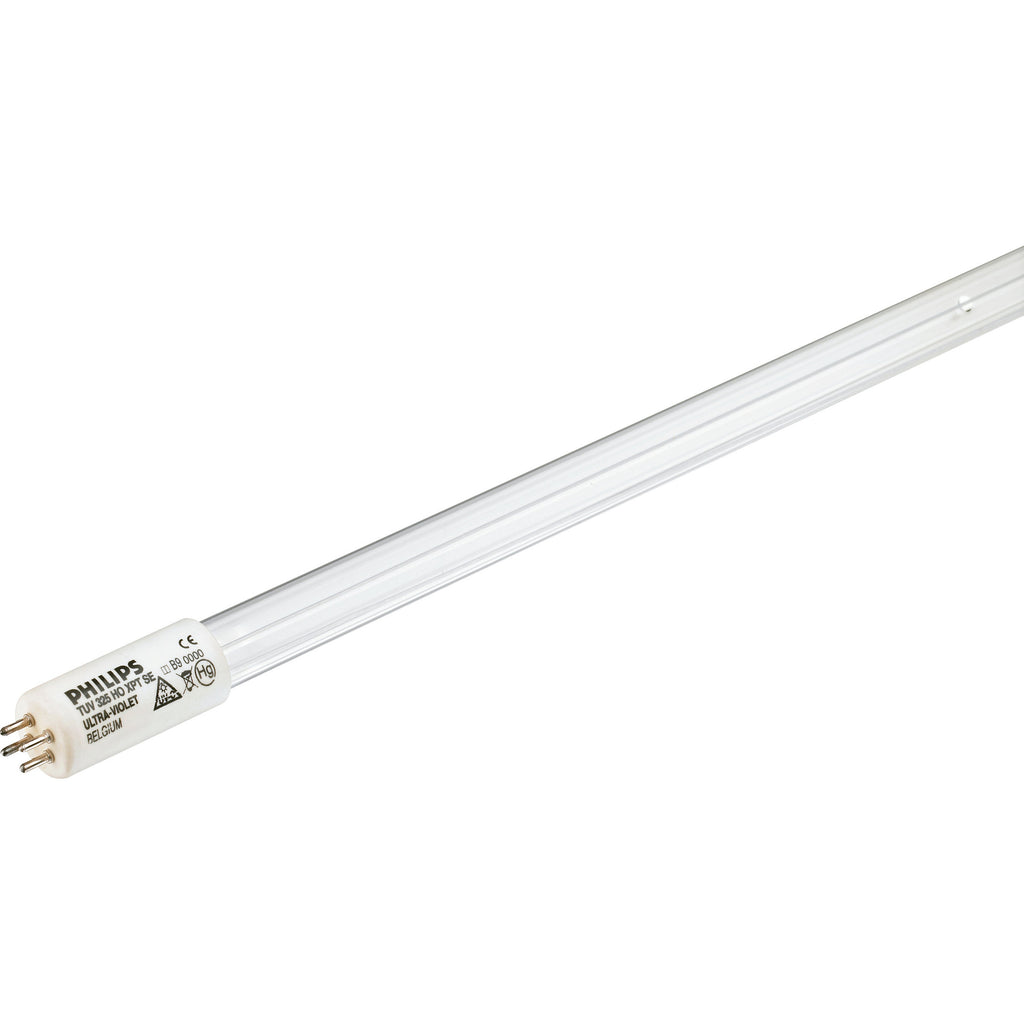

Philips 242602 TUV 200W XPT SE UVC Germicidal Bulb

Philips 242602 TUV 200W XPT SE UNP/20

Philips TUV Amalgam XPT system consists of an electronic driver that operates one TUV Amalgam XPT lamp, mounted in a sleeve. The electrical specifications are tailored to the lamp, ensuring an optimized performance of the Philips TUV Amalgam XPT system. Thanks to extensive testing before a lamp system is released, we can ensure maximum reliability and long lifetime

Features:
- Short-wave UV radiation peak at 253.7 nm (UVC) for disinfection
- Special amalgam used for highest efficiency over wide temperature range
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Universal burning position possible for T6 range, depending on lamp type and sleeve dimensions
- Minimized amount of mercury
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Applications:
- Deactivation of bacteria, viruses and other micro-organisms
- Municipal drinking water treatment equipment
- Process water treatment equipment
- Swimming pool units
- Eqipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industry (ozone version)

Abbreviation Name	TUV 200W XPT SE UNP/20
Base	G10.2Q
Main Application	Disinfection
Diameter (in)	1.1
Maximum Overall Length (in)	45.16
Rated Life (Hours)	12000 h
Shape	T6
Wattage (W)	200 W
Voltage (V)	94V
EAN/UPC	8718291548331

Manual:

Ozone emission statement Signify TUV 4W up to 800W
TUV EU Declaration of Conformity
