Philips C150S55/ALTO - 150w E39 Base S55 High Pressure Sodium Lamp

Philips SKU: 467233
$2899 $45.99 USD
44 in stock




Description

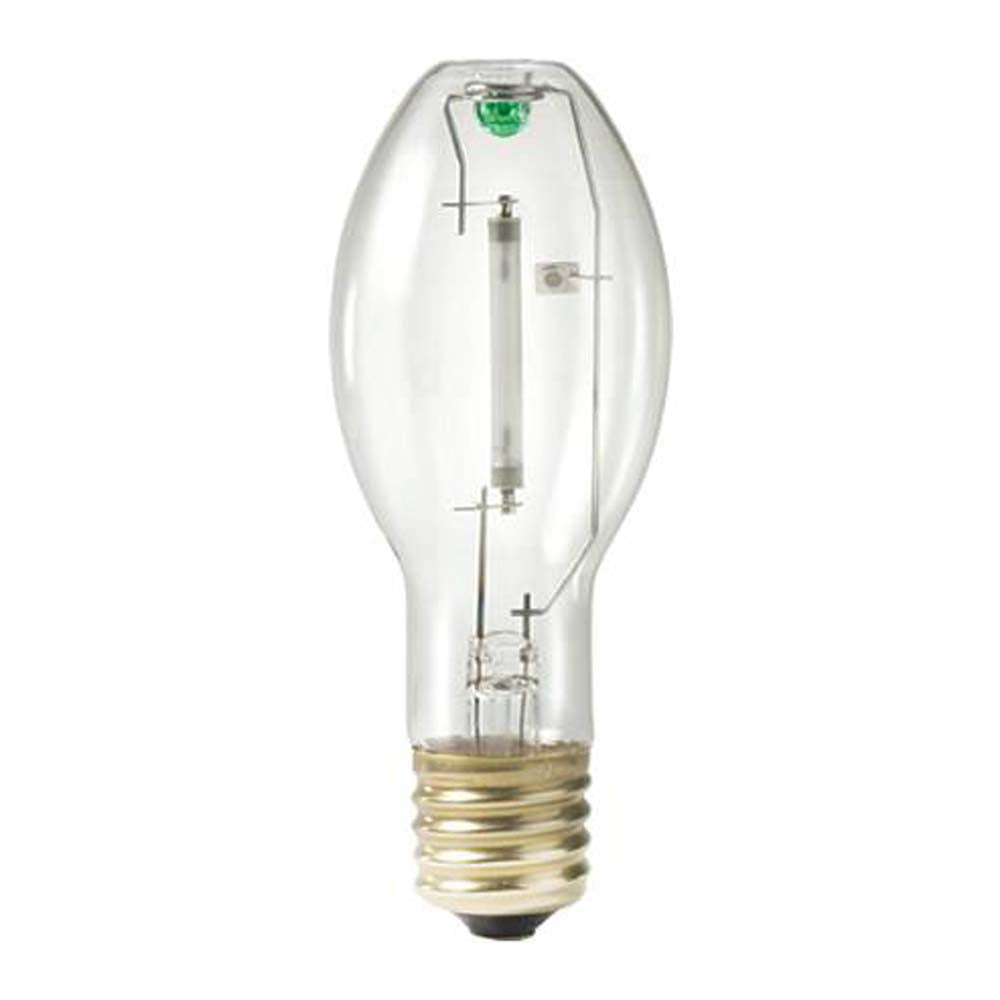

Philips 467233 - C150S55/ALTO - 150 watts ED23.5 shape - E39 mogul screw base High Pressure Sodium S55 Light Bulb

These lamps pass the EPA's TCLP test for non-hazardous materials. Ideal for industrial applications, warehouses, post top applications and parking lots.

Features:
- Main Application: General and Street Lighting

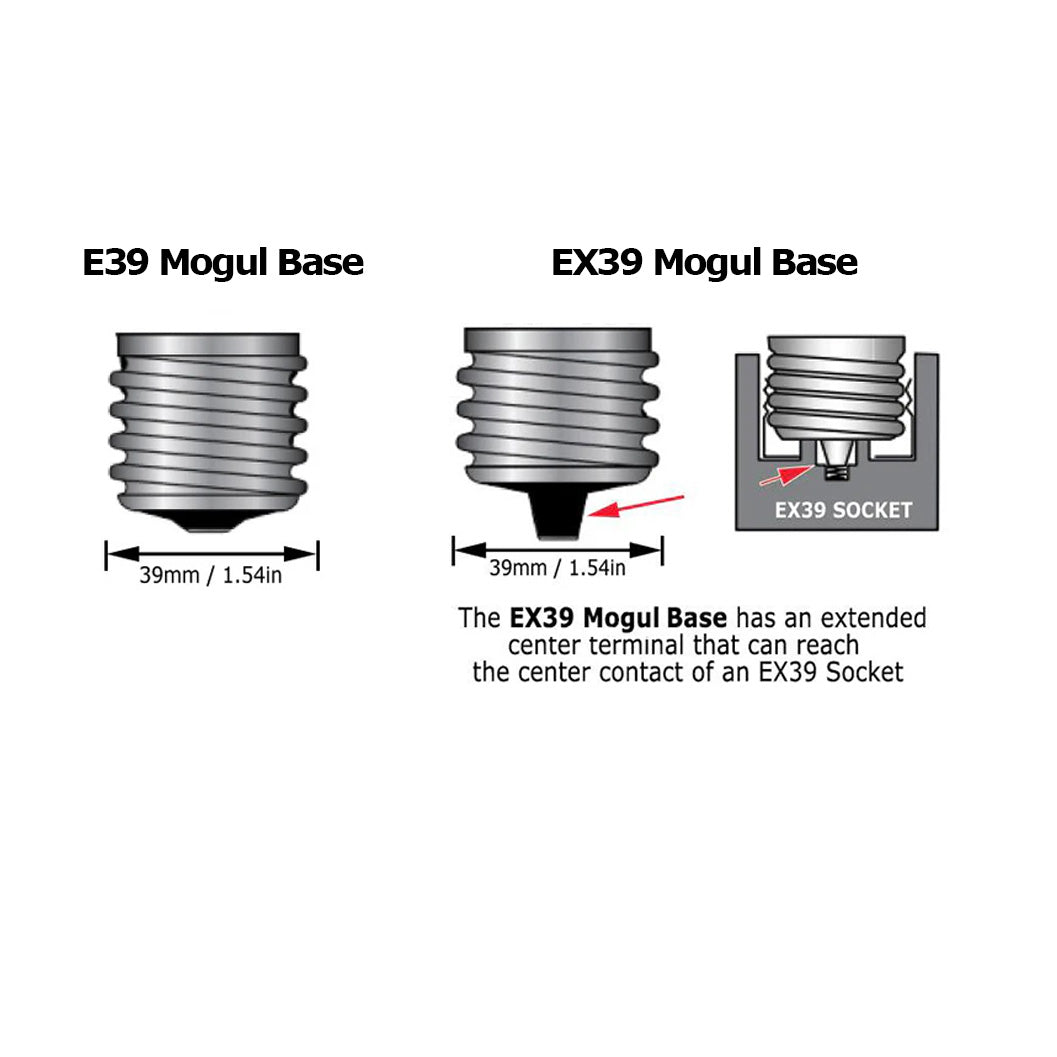

- Base: E39 [ Single Contact Mogul Screw]
- Operating Position: Universal
- ANSI Code HID: S55
- Luminous Flux (Rated) (Min): 14400 lm
- Correlated Color Temperature (Nom): 2100 K
- Color Rendering Index (Nom): 17
- Power (Rated) (Nom): 150.6 W
- Lamp Current (Nom): 3.2 A
- Ignition Supply Voltage (Max): 110 V
- Bulb Finish: Clear
- Cap-Base Information: Brass
- Bulb Material: Hard Glass
- Bulb Shape: ED-23 1/2
- Bulb Temperature (Max): 400 C
- Cap-Base Temperature (Max): 210 C
- Mercury (Hg) Content (Max): 17 mg

Warnings and Safety:
• Lamp contains mercury. Manage in Accord with Disposal Laws

Specs

General Information
Base E39 [ Single Contact Mogul Screw]
Operating Position Universal
Main Application General and Street Lighting
ANSI Code HID S55
Light Technical
Luminous Flux (Rated) (Min) 14400 lm
Luminous Flux (Rated) (Nom) 16000 lm
Design Mean Lumens 14220 lm
Chromaticity Coordinate X (Nom) 514
Chromaticity Coordinate Y (Nom) 424
Correlated Color Temperature (Nom) 2100 K
Luminous E€cacy (Rated) (Min) 96 lm/W
Luminous E€cacy (rated) (Nom) 106 lm/W
Color Rendering Index (Nom) 17
Operating and Electrical
Power (Rated) (Nom) 150.6 W
Lamp Current (Nom) 3.2 A
Ignition Supply Voltage (Max) 110 V
Re-Ignition Time (Min) (Max) 2 min
Ignition Time (Max) 5 s
Voltage (Max) 62 v
Voltage (Min) 48 v
Voltage (Nom) 55 v
Mechanical and Housing
Bulb Finish Clear
Cap-Base Information Brass
Bulb Material Hard Glass
Bulb Shape ED-23 1/2
Luminaire Design Requirements
Bulb Temperature (Max) 400 C
Cap-Base Temperature (Max) 210 C
Product Data
Order product name SON 150W E39 ED75 CL SL/12
EAN/UPC - Product 046677467234
Approval and Application
Mercury (Hg) Content (Max) 17 mg
