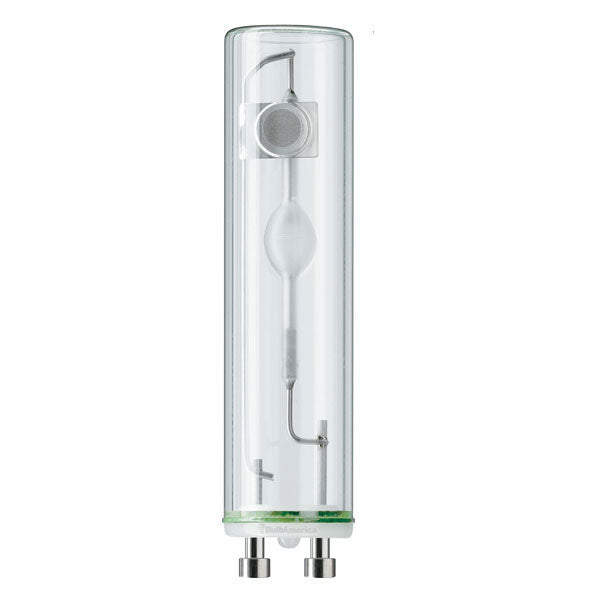

Philips 35w GU6.5 MasterColor CDM-Tm Elite Mini HID Light Bulb

Philips 207191 - 35w GU6.5 MasterColor CDM-Tm Elite Mini T4 Metal Halide discharge lamp

The Philips 35w GU6.5 Mini single-ended lamp is a very high-efficiency bulb with a light output of 3900Lumens at a power usage of 35 watts.
The Ceramic Metal Halide discharge lamp has a long-life of 15000 hours and produce crisp white sparkling light with high color rendering.

Features:
- Lamp Wattage: 35w
- Luminous Flux: 3900Lm
- Color Temperature: 3000K
- High Color Rendering - CRI 90 Ra8
- Rated Life: 15000Hr

Cross Reference:
- CDM 35W GU6.5
- Philips SKU 107209059
- Philips SKU 108272862
- Philips 9281-874-05115, 9281 874 05115
- 418798-001
- MasterColor CDM-Tn Elite Mini 35W/930

Cap-Base	GU6.5 [GU6.5]
Bulb	T13.3
Bulb Finish	Clear
Burning Position	any [Any/Universal]
Life to 50% failures	15000 hr
Colour Code	930 [CCT of 3000K]
Colour Rendering Index	87 (min), 90 (nom) Ra8
Colour Designation	Warm white
Colour Temperature	3000 K
Colour Temperature Technical	2950 K
Lamp Luminous Flux EL	3900 Lm
Lamp Luminous Efficacy EL	100 Lm/W
Lumen Maintenance 15000h	75 %
Design Mean Lumens EL	3300 Lm
Chromaticity Coordinate X	0.435
Chromaticity Coordinate Y	0.396
System Power EL	43 W
Lamp Wattage	35 W
Lamp Wattage EL 25C, Rated	39.0 W
Lamp Wattage EL 25C, Nominal	35.0 W
Lamp Current EL	0.44 A
Ignition Time	30 (max) s
Run-up time 90%	3 (max) min
Re-ignition Time [min]	15 (max) min
Dimmable	no
Energy Efficiency Label (EEL)	A+
Mercury (Hg) Content	4.7 mg
Energy consumption kWh/1000h	42 kWh
Damage Factor D/fc	0.4 (max)
PET (NIOSH)	8 (min) h500lx
Cap-Base Temperature	250 (max) C
Bulb Temperature	450 (max) C
Overall Length C [inch]	2.05 in (56.7mm)
Diameter D [inch]	0.5 in (13.3mm)
Light Center Length L [inch]	1.18 in
Light Center Length L	28 (min), 30 (nom), 32 (max) mm
Arc Length O	4.7 mm
Order code	153825
Full product code	871829115382500
Full product name	MASTERColour CDM-Tm Elite Mini 35W/930 GU6.5 1CT
Order product name	MC CDM-Tm Elite Mini 35W/930 GU6.5 1CT
Pieces per pack	1
Packing configuration	12
Packs per outerbox	12
Bar code on pack - EAN1	8718291153825
Bar code on outerbox - EAN3	8718291153832
Logistic code(s) - 12NC	928187405130
ILCOS code	MT/UB-35/930-H-GU6.5-13.3/52
Net weight per piece	0.008 kg
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

MasterColor CDM-Tm Elite Mini T4
