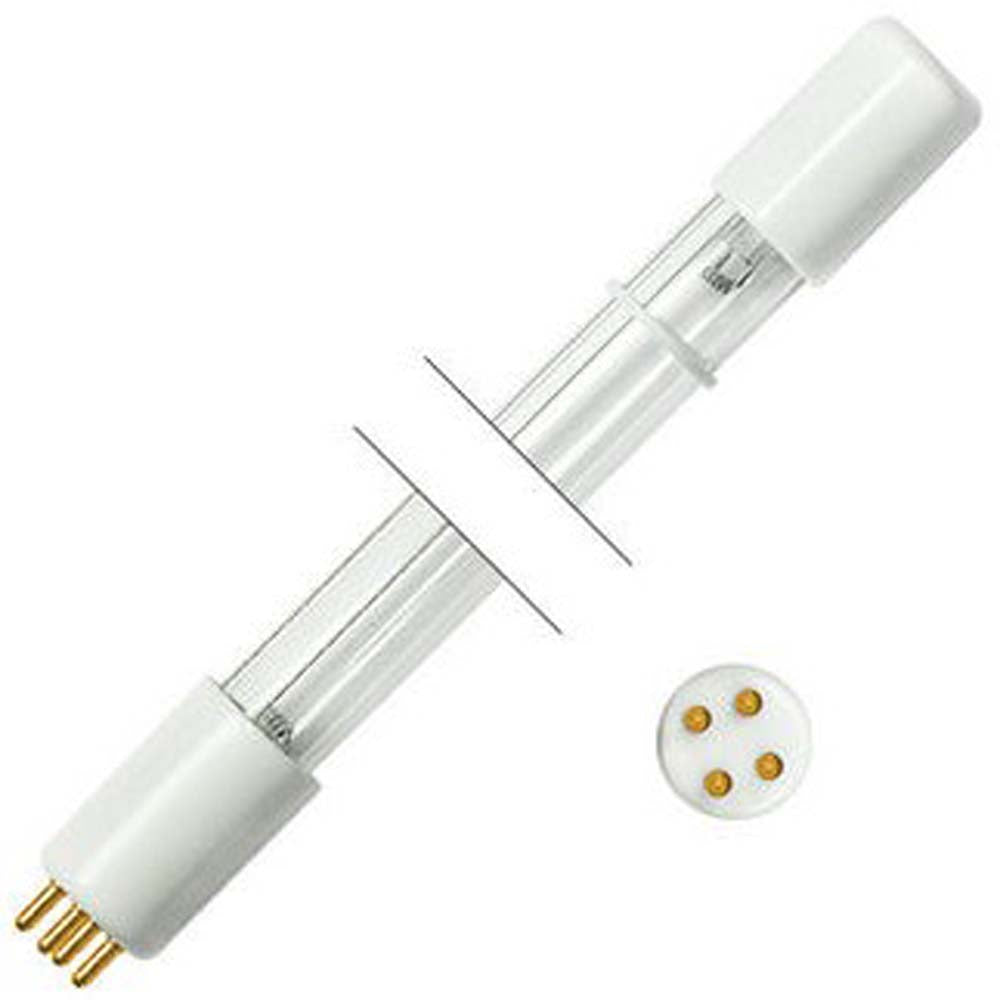

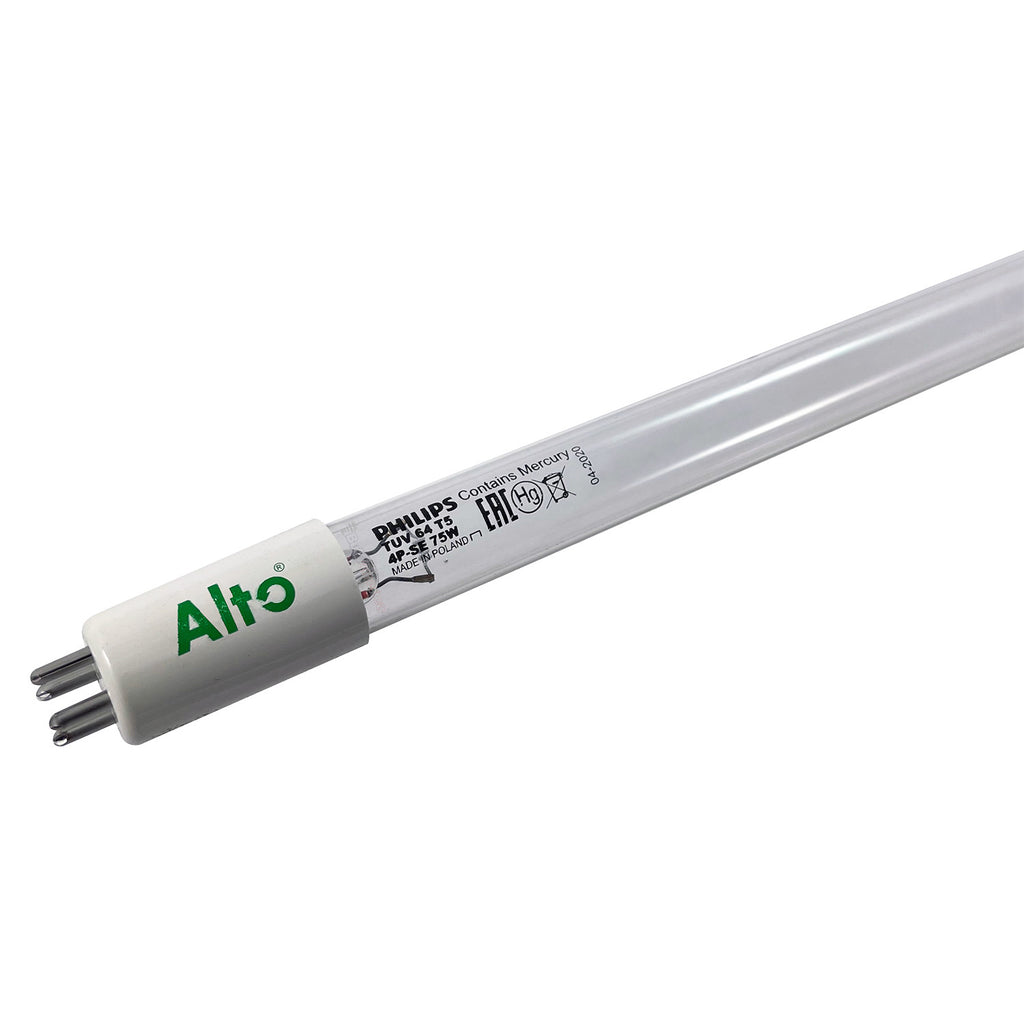

Philips 362178 TUV 64T5 HE 4P SE UVC Germicidal Bulb

PHILIPS 36217-8 TUV 64T5 HE 4P SE UNP

Philips G64T5 4P - TUV T5 lamps are single-ended UVC (germicidal) lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

Features:
- Produces UV radiation of 253.7 nanometers (nm) in the UV-C germicidal light band width
- The glass in the light bulb blocks out 185 nm ozone forming light
- This light bulb requires a ballast to operate
- Consistent output of UV-C wavelength over light lifetime
- Warning label on light indicates UV-C radiation output
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Applications:
- Killing or inactivating bacteria, viruses and other primitive organisms
- Air, water and surface disinfection in hospitals, bacteriological research and pharmaceutical environment, and food processing industries such as dairies, breweries and bakeries
- Disinfection of drinking water, waste water, swimming pools, air conditioning systems, cold storage rooms, packing materials etc.
- Used in a variety of photochemical processes
- Radiation of these lamps is harmful to eyes and skin. Installations with these lamps are to be screened off completely.

Cross Refference:
- Sylvania 23386 G64T5/4P/SE/OF,
- GE 29504, G64T5L/4P
- Eiko 00225,
- Ushio 3000351, G64T5L/4P
- Ushio 3000423, G64T5L/4P
- LightTech LTC64TSE,
- Philips TUV64T5/4P/SE, 362178, 36217-8,
- G64T5/L/4P/SE
- 642325, 8711500642325, 058089,
- Sankyo Denki GPH1554T5/4P

12NC Code	927970704099
SKU	362178
Abbreviation Name	TUV 64T5 HE 4P SE UNP/32
Base	4-Pin
Bulb Type	UVC Germicidal Bulbs
Diameter (in)	1
Maximum Overall Length (in)	61.6000
Rated Life (Hours)	9000
Shape	T5
Wattage (W)	75W
Voltage (V)	176V
UV-C Radiation	32.7W
EAN/UPC	8711500261311

Manual:

Ozone emission statement Signify TUV 4W up to 800W
Germicidal Tubular Fluorescent EU Declaration of Conformity
