Philips 363713 TUV 4W G4T5 Germicidal Bulb for Water and Air Disinfection

$699 $19.99
USD
Description

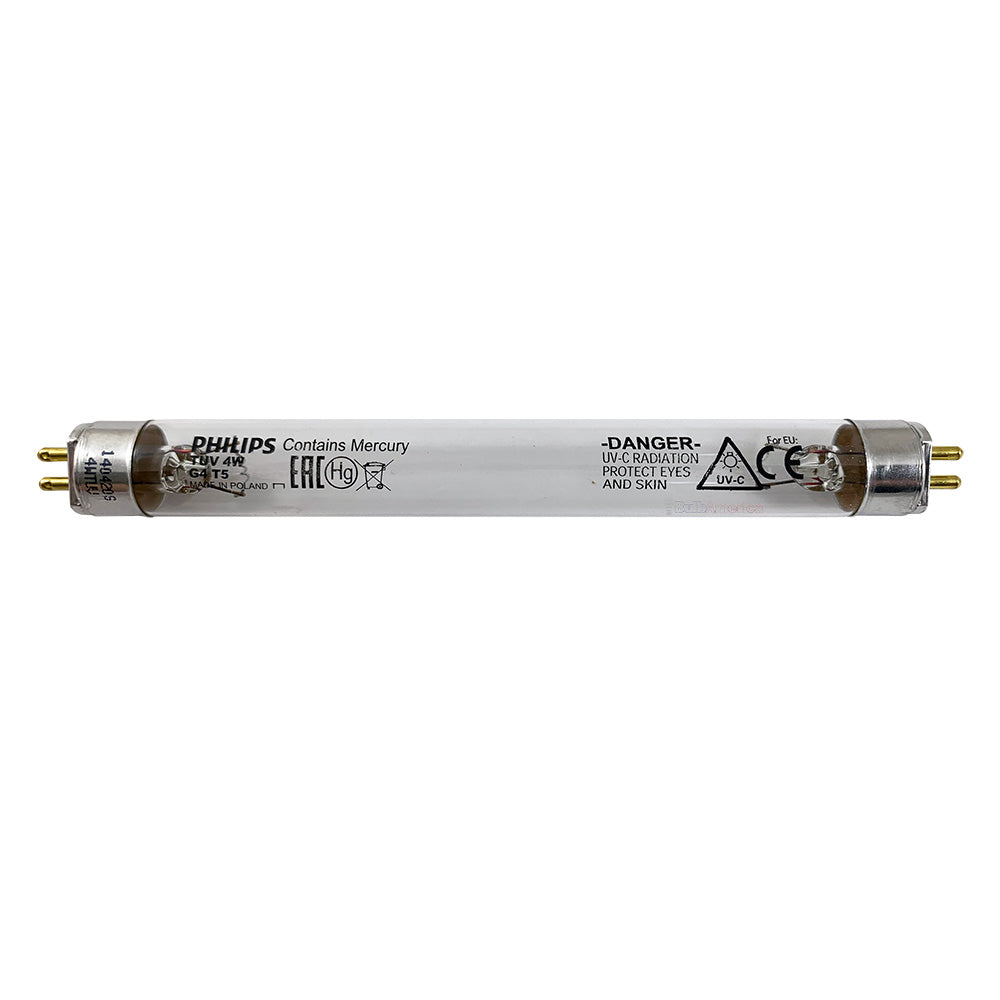

Philips TUV 4W G4T5 Germicidal Lamp for Water and Air Disinfection
Philips G4T5 TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.
Cross Reference:- Osram 23397 G4T5/OF HNS 4W G5
- General Electric G4T5
- Ushio 3000013 G4T5
- Philips SKU: 108273101
- Philips Code: 928000104013, 9280 001 04013
- Philips EAN: 8711500638724
Application:
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain the effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the lifetime of the lamp
- Useful lifetime of 9,000 hours
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size - Warning sign on lamp indicates that the lamp radiates UVC
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1
Specs
Brand | Philips |
12NC Code | 928000104013 |
SKU | 363713 |
Abbreviation Name | TUV 4W FAM/10X25BOX |
Base | G5 |
Bulb Type | UVC 254 nm Germicidal Bulbs |
Diameter (in) | 1 |

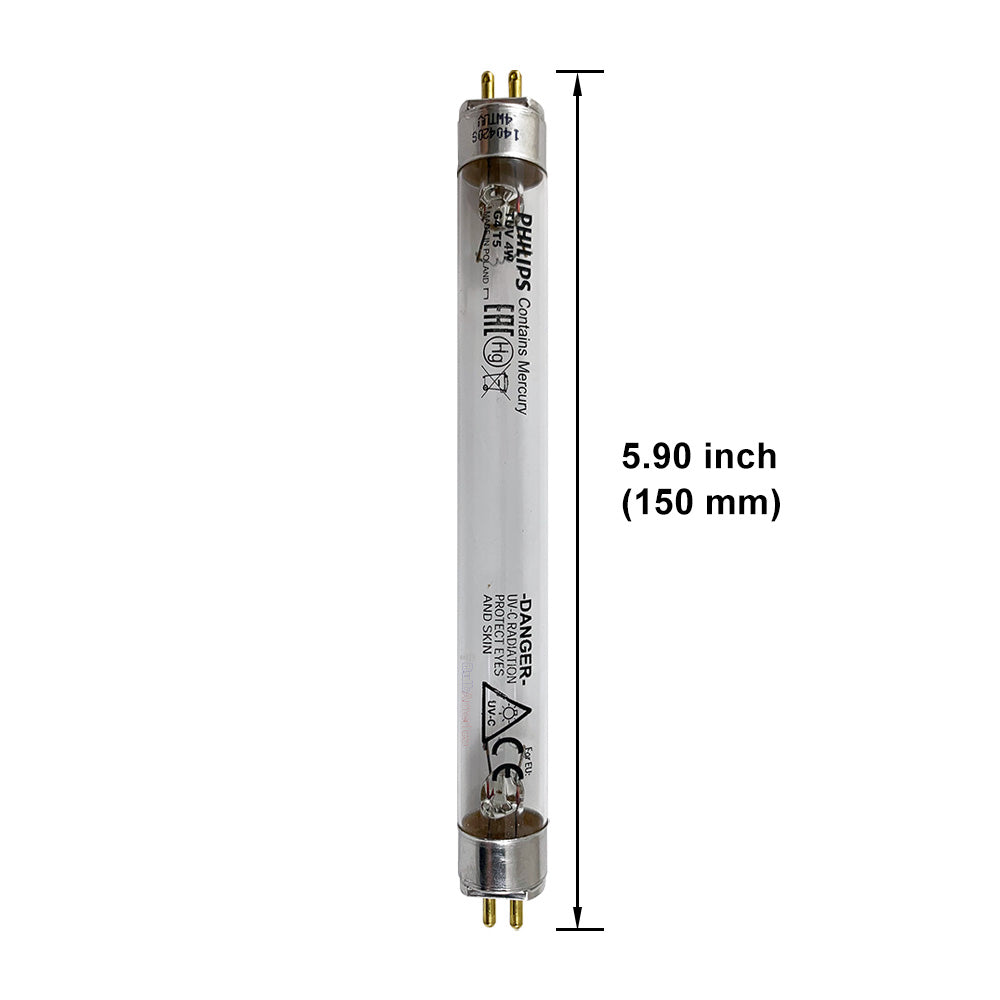

Maximum Overall Length (in) | 5.9 |
Rated Life (Hours) | 5000 |
Shape | T5 |
Wattage (W) | 4W |
Voltage (V) | 29V |
Mercury (Hg) Content | 4.4mg |
UV-C Radiation | 0.9w |
EAN/UPC | 8711500638724 |
Cross Reference
Cross Reference:
- American Ultraviolet, Inc. GML180
- Aquanetics Systems ALA-4
- Aquanetics Systems Aquanetics 4
- Aquanetics Systems Q4IL
- Aquanetics Systems Q4SPT
- AquaStar Portable Water Purifier
- Atlantic Ultraviolet Corporation 4 Watt Strip Fixture
- Atlantic Ultraviolet Corporation NO4 Models
- Biolux 4 Watt Strip Fixture
- Biolux NO4 Models
- Cole-Parmer Instrument Co. 34-0003-01
- Cole-Parmer Instrument Co. UX-09815-12
- Custom SeaLife PUVLB504
- EcoQuest Manufacturing 70059
- EcoQuest Manufacturing Fresh Air UV4
- EcoQuest Manufacturing G4T5UV
- EcoQuest Manufacturing US70059
- EcoQuest Manufacturing UV4
- EdenPure G-7
- EdenPure WGEP-1000
- EdenPure ZW4S15W-Z135
- EiKO Global, LLC G4T5
- General Electric 5872
- General Electric G4T5
- Hawaiian Marine AN-4S
- Hawaiian Marine AN-4SA
- Light Sources, Inc. LTC4T5
- LightTech Lamp Technology, Ltd. LTC4T5
- Orbitec 007859
- Osram Sylvania Ltd. 23397
- Osram Sylvania Ltd. G4T5
- Osram Sylvania Ltd. G4T5/OF
- Osram Sylvania Ltd. HNS 4W G5
- Philips Lighting 363713
- Philips Lighting TUV 4T5
- Purely UV Products PUVLB504
- Sankyo Denki G4T5
- Spectronics Corporation BLE-2537/S
- Spectronics Corporation PE-140T
- Spectronics Corporation PE-240T
- Spectronics Corporation Q-22NF
- Ushio 3000013
- Ushio G4T5
- American Ultraviolet, Inc. GML180
- Aquanetics Systems ALA-4
- Aquanetics Systems Aquanetics 4
- Aquanetics Systems Q4IL
- Aquanetics Systems Q4SPT
- AquaStar Portable Water Purifier
- Atlantic Ultraviolet Corporation 4 Watt Strip Fixture
- Atlantic Ultraviolet Corporation NO4 Models
- Biolux 4 Watt Strip Fixture
- Biolux NO4 Models
- Cole-Parmer Instrument Co. 34-0003-01
- Cole-Parmer Instrument Co. UX-09815-12
- Custom SeaLife PUVLB504
- EcoQuest Manufacturing 70059
- EcoQuest Manufacturing Fresh Air UV4
- EcoQuest Manufacturing G4T5UV
- EcoQuest Manufacturing US70059
- EcoQuest Manufacturing UV4
- EdenPure G-7
- EdenPure WGEP-1000
- EdenPure ZW4S15W-Z135
- EiKO Global, LLC G4T5
- General Electric 5872
- General Electric G4T5
- Hawaiian Marine AN-4S
- Hawaiian Marine AN-4SA
- Light Sources, Inc. LTC4T5
- LightTech Lamp Technology, Ltd. LTC4T5
- Orbitec 007859
- Osram Sylvania Ltd. 23397
- Osram Sylvania Ltd. G4T5
- Osram Sylvania Ltd. G4T5/OF
- Osram Sylvania Ltd. HNS 4W G5
- Philips Lighting 363713
- Philips Lighting TUV 4T5
- Purely UV Products PUVLB504
- Sankyo Denki G4T5
- Spectronics Corporation BLE-2537/S
- Spectronics Corporation PE-140T
- Spectronics Corporation PE-240T
- Spectronics Corporation Q-22NF
- Ushio 3000013
- Ushio G4T5
