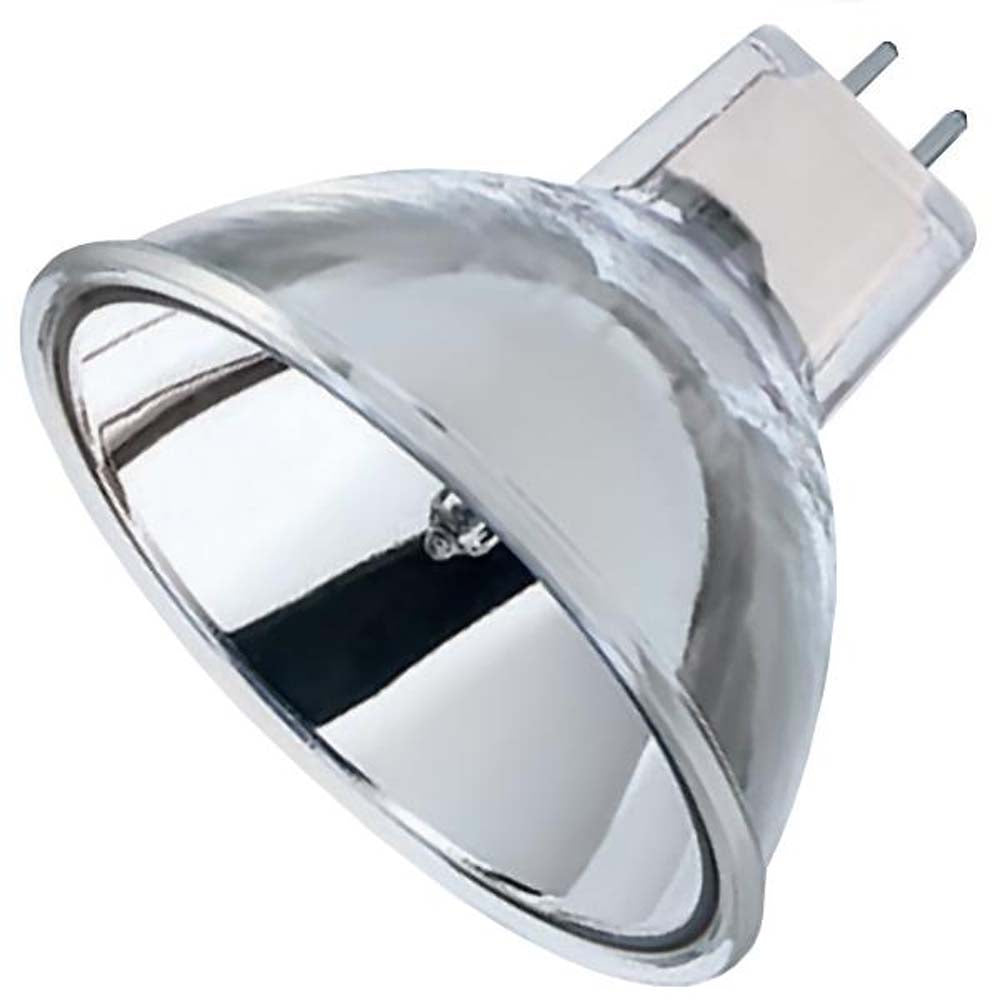

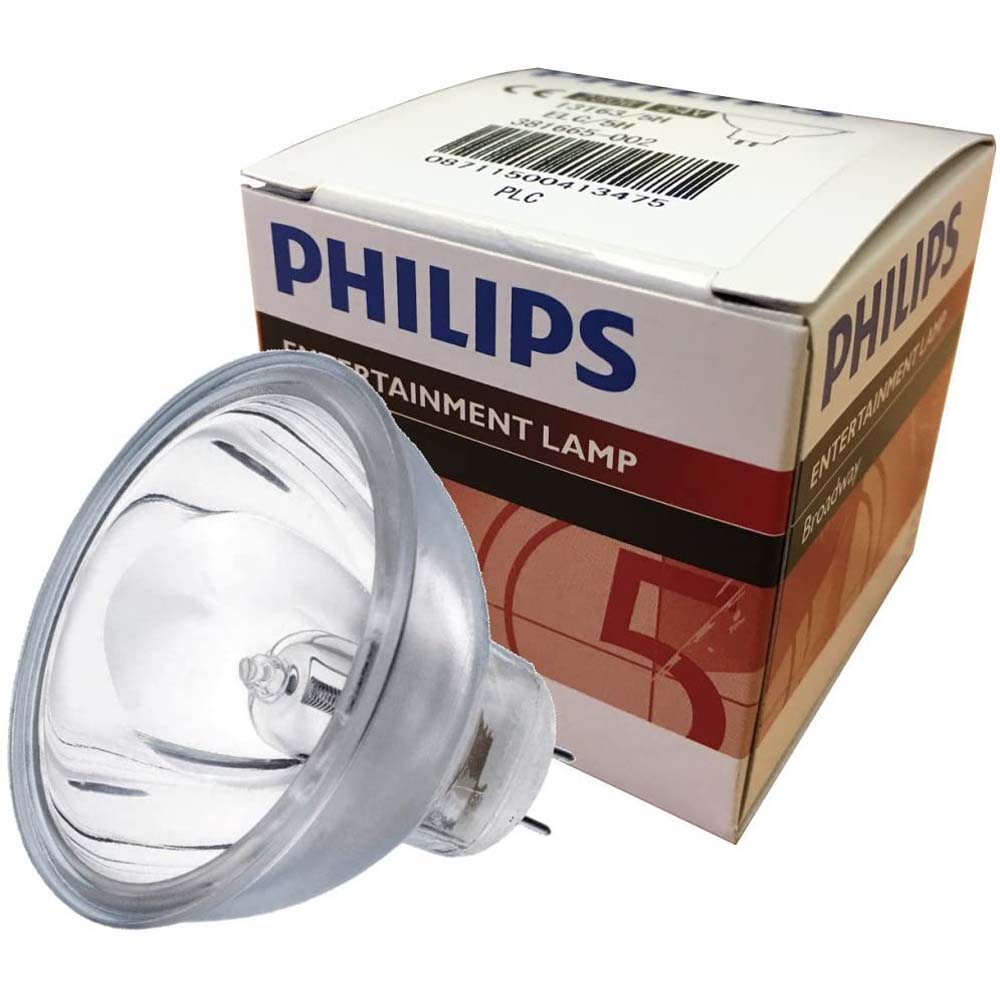

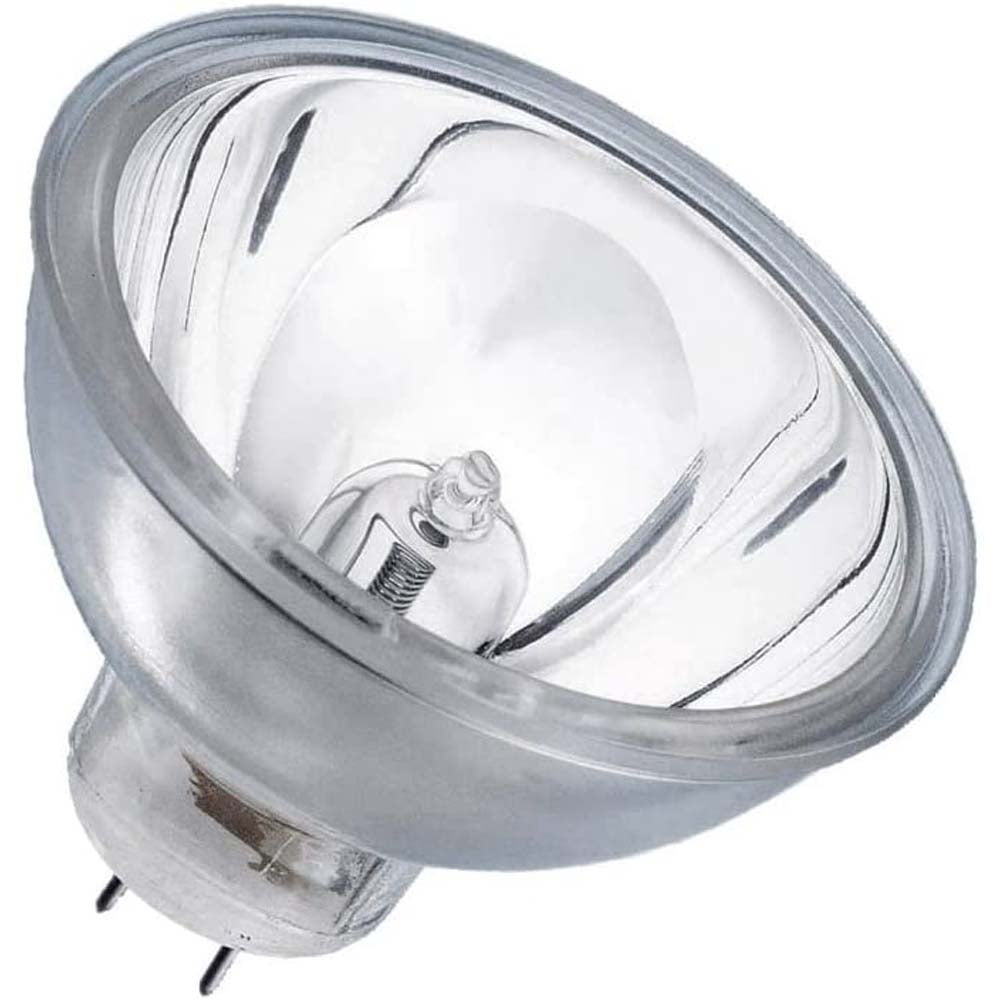

Philips 507095 ELC 13163 24V 250W MR16 3400k R50 GX5.3 Halogen Light Bulb

Philips’ halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special bluefilter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.

Benefits:
- Optimal light performance
- Remains within temperature limits
- No re-alignment necessary when lamp is replaced

Features:
- Excellent distortion-free quartz bulb
- Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards

Applications:
- Medical endoscopy
- Industrial endoscopy
- Fiber optic illumination
- Dental curing
- Projection systems
- Microfiche
- Spectrography

Abbreviation Name	MR16 13163 ELC/5H 250W GX5.3 24V
12NC Code	923919720501
SKU	507095
Base	GX5.3 2-Pin
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3400K
Diameter (in)	1.968
Dimmable Compatibility	Dimmable
Maximum Overall Length (in)	1.75
Rated Life (Hours)	500
Shape	MR16
Voltage (V)	24V
Wattage (W)	250W
Dimmable	Yes-Dimmable

The ELC bulb is found in some of the following equipment:
- Agfa-Gevaert Movector 4000
- Agfa Gevaert C66
American DJ H-150
- American DJ Mini Startec
- American DJ Strobetec
- Bauer TC-20
- Bauer T-30 Sound
- Bauer T-40 Sound
- Bauer TC-50
- Bauer T-60
- Bauer T-180
- Bauer LT-2053
- Bauer T-502
- Bauer T-525
- Bauer T-610
- Bell and Howell Autoload 423 Auto 8
- Bell and Howell Autoload Sound 427
- Bencini P75 Super 8
- Bosworth Superlight
- Chinon SS-1200
- Coe Laboratories Coe Lite
- Elmo ST-1200
- Elmo Optical Magnetic
- Elmo ST-1200D
- Elmo ST-1200HD
- Elmo SC-30
- Elmo ST-1200
- Elmo ST-1200M
- Elmo ST-1200O
- Elmo ST-1200 SO
- Fuji (Fujica) Fujicascope MX70
- Fuji Optical Denta Cam 2
- Fuji Optical Denta Cam 5
- Fuji Optical Denta Cam 11
- Fuji Optical Denta Cam 50
- Fuji Optical Denta Cam 100
- Healthco VLC Illumination Wand HO
- Harry J. Bosworth SuperLight
- Henry J. Bosworth 92102
- Kowa SL-2 Hand Held
- Kulzer Translux EC
- Kulzer Translux 2
- Litema Pluraflex HL150
- Luxtec ACO Series
- Luxtec 8000
- Marco Main OM-2000
- Martin Roboscan 805
- Ness Accubeam
- Solid State Systems Initiator
- Olympus CLE-10
- Olympus CLE-F10
- Olympus CLH-2
- Olympus CLK-3
- Olympus CLK-4
- Olympus DQ0045
- Olympus OME
- Olympus OCS
- Olympus OCS-2
- Olympus 8-S401
- Osawa Autoload 423 Auto 8
- Osawa Autoload Sound 427
- Sankyo Stereo 800
- Solid State Systems Initiator
- Topcon Main OM-5
- Topcon 60/70
- Topcon 70/100
- Topcon 75/85
- Topcon 300/320/600
- USI 5-088BGC
- Vivadent Heliomat (multi & single function)
- Yelco DS-810MT
- Zeiss P890
- Zeiss P809

Manual:

Philips 507095 Data Sheet
Philips EU Declaration of Conformity
