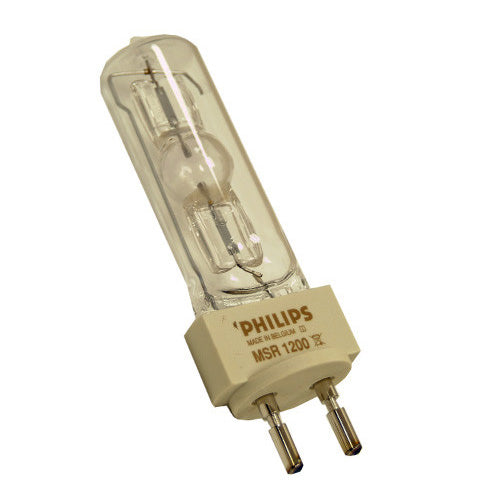

PHILIPS 911336 1200w MSR 1200/2 metal halide bulb

Philips 911336 MSR 1200/2: MSR – bright vivid colors, always The high color rendering index of the single ended MSR series ensures that everyone in the audience can enjoy the true colors of the scenery, the stage props, the players and their costumes – in fact everything that is on stage can be made bright and vivid in daylight quality light. Also, thanks to the single ended lamp concept, the luminaire has optimal light collection and direction possibilities to help ensure brightness on stage exactly where and when it is needed. In addition, theMSR 1200can be used in any burning position for easy set-up and convenience.

General Characteristics
System Description	Cold Strike
Cap-Base	G22
Cap-Base Information	30x53mm
Main Application	Studio/Disco
Life to 50% failures	800 hr
Light Technical Characteristics
Color Code	2
Color Rendering Index	80 Ra8
Color Temperature	7200K
Chromaticity Coordinate X	325
Chromaticity Coordinate Y	320
Luminous Flux Lamp EM	94000 (min), 110000 (nom) Lm
Luminous Efficacy Lamp EM	91 Lm/W
	Electrical Characteristics
Watts	1200 W
Lamp Wattage Technical	1200 W
Lamp Current	13.8 A
Dimmable	No
Luminaire Design Requirements
Pinch Temperature	350 (max) C
Bulb Temperature	700 (max) C

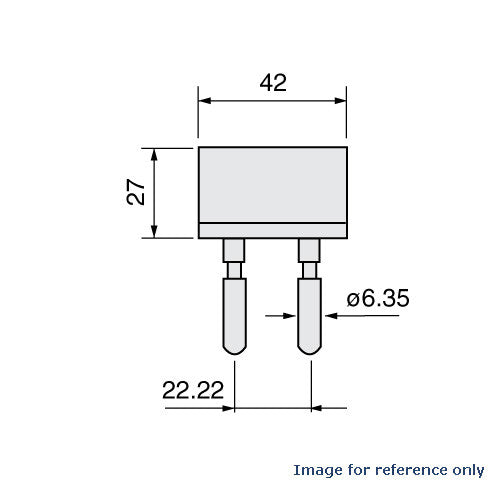

Product Dimensions
Overall LengthC	175 (max) mm
Diameter D	40 (max) mm
Width F	53 mm
Light Center Length L	84 (min), 85 (nom), 86 (max) mm
Arc Length O	10.0 mm
Product Data
Product number	245514
Full product name	MSR 1200 1CT
Short product name	MSR 1200 1CT/3
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

Philips 245563 MSR 1200/2

The MSR 1200/2 bulbs is used in following equipment
- Coemar Fiera 1200
- High End Systems Cyberlight all litho
- High End Systems Cyberlight cx
- High End Systems Cyberlight sv
- Martin Professional Centrepiece
- Martin Professional Mac 1200
- Martin Professional Pal 1200
- Martin Professional Pal 1200 effect
- Martin Professional Roboscan pro 1220 CMYR
- Martin Professional Roboscan pro 1220 RPR
- Martin Professional Roboscan pro 1220 XR
- Martin Professional Robozap MSR 1200
- Sagitter Tracer Follow Spot
