Philips CDM-TD 70/942 70w RX7s 4200K Double Ended MasterColor HID Bulb has a rating of 5.0 stars based on 2 reviews.

Philips CDM-TD 70/942 70w RX7s 4200K Double Ended MasterColor HID Bulb

Philips SKU: 200020
$3299 $48.99 USD
30 in stock

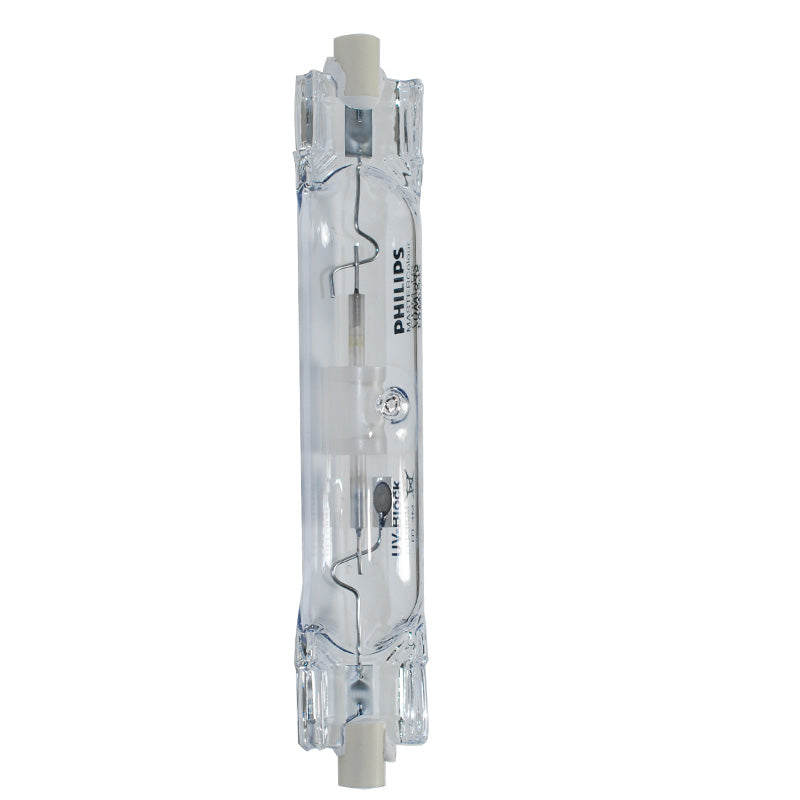

Philips MasterColor CDM-TD 70W/942 Double Ended HID Bulb

Philips CDM-TD 70W/942 are compact discharge lamps with a stable colour over lifetime, a sparkling light, a cool white (4200 K) colour impression and an excellent colour rendering CRI 90
High beam intensities can be created thanks to the small discharge arc and the compact dimensions of the lamp. Low operating costs result from the high lamp efficacy, combined with a long lamp life compared to incandescent and halogen lamps.
The lamps feature a UV-block quartz outer bulb and personal comfort is increased thanks to the low heat output.
CDM-TD lamps have to be used in combination with a ballast and an ignitor

Cross Reference:
- Philips CDM-TD 70/942
- Philips CDM70/TD/942
- Philips 373704
- Philips 200020
- Philips 107178345
- Greinger 6XV41
- GE 92588 CMH70/TD/942RX7S
- 8711500200020
- Order Code 928084705133

Product Features
- Cool White colour impression
- Excellent Colour rendering CRI>90
- Retrofit in double-ended luminaires for quartz metal halide lamps (MHN/W-TD), thereby allowing to reduce operating costs and improve colour quality
- Burning position horizontal +/-45 Deg
- ANSI Code M139/E

Product Benefits
- Stable colour impression over lifetime
- High lamp efficacy results in low operating costs and low heat generation. Provides better operating costs and improved light quality versus standard quartz metal halide (MHN/W-TD)
- Long lamp life compared with incandescent, halogen and quartz metal halide (MHN/W-TD) lamps
- Relatively low heat output enhances comfort for shoppers and staff
- UV-Block for reduced fading risks

- Good environmental choice because of high energy efficiency and long reliable life
- This product is RoHS compliant
- Shops and shop windows, offices and public buildings
- Decorative outdoor: floodlighting of facades, statues and monuments
- Must be used in closed luminaires with a hard-glass cover


ANSI Code M139/E
Abbreviation Name CDM70/TD/942
Bulb Type High Intensity Discharge Bulbs (HID)
Color Rendering Index (CRI) 92
Color Temperature (K) 4200K
Diameter (in) 0.75
Lamp Finish clear
Luminous Flux (LM) 5600

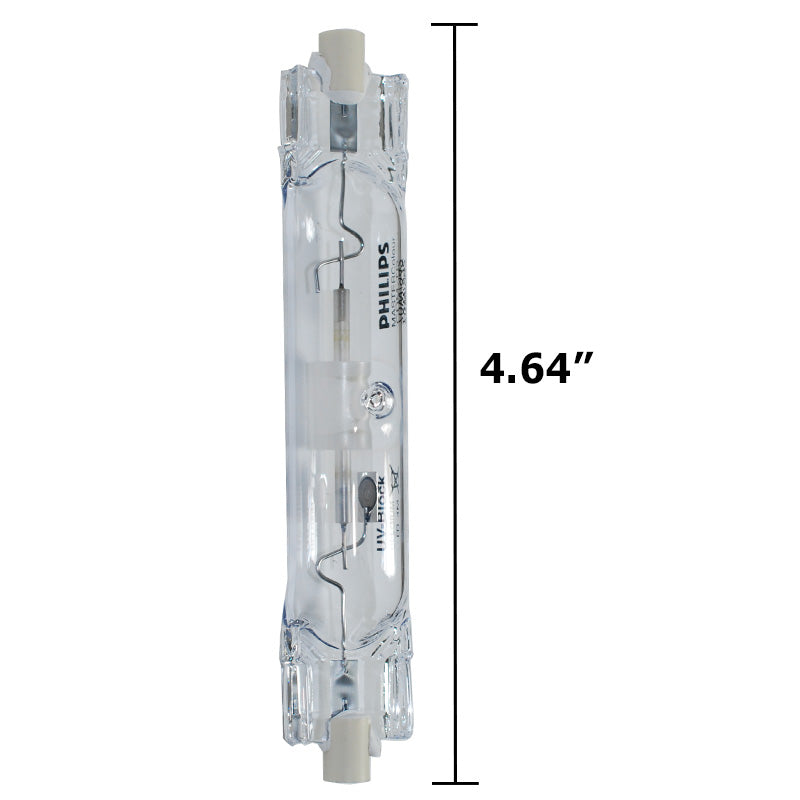

Maximum Overall Length (in) 4.64
Rated Life (Hours) 15000
Shape Double-Ended
Wattage (W) 70W
CA Prop 65 Yes
CA Prop 65 Material Mercury
